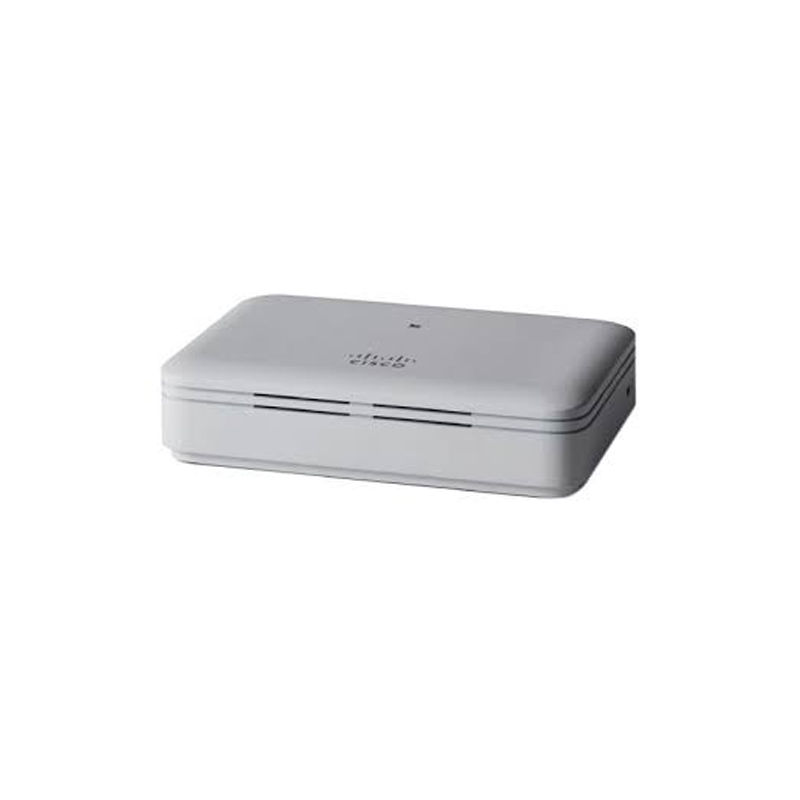

AIR-AP1815T-N-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, Internal antenna
Brand: Cisco · SKU: AIR-AP1815T-N-K9 · MPN: AIR-AP1815T-N-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet AP1815T Series, Reg Domain N
Specifications
| Model | AIR-AP1815T-N-K9 |
|---|---|
| Notes | Power and channel settings vary by regulatory domain. Refer to product documentation for specific details per country or region. |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Indicators | Status LED for boot loader status, association, operating status, warnings, and errors |
| PoE Output | 802.3af: 15.4W at port (PoE out with Cisco local power supply AIR-PWR-D=) |
| Power Draw | 8.5W (no PoE out and no USB) |
| Accessories | Optional Physical Security Kit (AIR-SEC-50=, sold separately): Includes 50 security screws, 50 RJ-45 caps, 2 unlock keys for wall-mount and port security |
| Ethernet Ports | 1 x 10/100/1000BASE-T autosensing (RJ-45), three 10/100/1000BASE-T local Ethernet ports (one PoE out); 802.1X or MAC filter authentication; dynamic VLAN support |
| Maximum Clients | 200 per Wi-Fi radio, total 400 clients per access point |
| System Hardware | 512 MB DRAM, 128 MB Flash, 710 MHz quad-core CPU |
| 802.11ac Features | 2x2 SU/MU-MIMO, two spatial streams; maximal ratio combining (MRC); 20-, 40-, 80-MHz channels; data rates up to 866.7 Mbps (80 MHz, 5 GHz); A-MPDU (Tx/Rx), A-MSDU (Rx); 802.11 DFS; cyclic shift diversity (CSD) |
| Physical Security | Kensington lock slot |
| Environmental Range | Operating: 0°C to 40°C (32°F to 104°F), 10% to 90% RH (non-condensing), max altitude 3,000 m (9,843 ft) Storage: -30°C to 70°C (-22°F to 158°F), 10% to 90% RH, max altitude 4,500 m (15,000 ft) |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 3 dBi gain |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) |
| Transmit Power Settings | 2.4 GHz: 20/17/14/11/8/5/2/–1 dBm (100 to 0.78 mW) 5 GHz: 20/17/14/11/8/5/2/–1 dBm (100 to 0.78 mW) Note: Maximum power varies by channel and country regulation. |
| Input Power Requirements | 44 to 52V DC |
| Compliance and Regulatory | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio: FCC Part 15.247/15.407/15.107/15.109, RSS-247, ICES-003, EN 300.328, EN 301.893, VCCI, ARIB-STD 66 & T71, EN 301.489-1/-17, EN 50385 IEEE Standards: 802.11a/b/g/n/h/d/ac Security: 802.11i, WPA2, WPA, 802.1X, AES EAP types: EAP-TLS, EAP-TTLS/MSCHAPv2, PEAP v0/EAP-MSCHAPv2, EAP-FAST, PEAP v1/EAP-GTC, EAP-SIM Multimedia: WMM Other: FCC OET-65C, RSS-102 |
| Channels (Non-overlapping) | Multiple regulatory domains supported. Example: 2.4 GHz: Up to 13 channels (depending on region) 5 GHz: Up to 23 channels (depending on domain and exclusion lists) Please refer to Cisco documentation for full per-domain details. |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, 8500, 9800 Series; Cisco Wireless Controller Module for ISR G2; Flex 7500; WiSM2 for Catalyst 6500 |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication/authorization/accounting (AAA), 802.11r, 802.11i |
| Data Rates Supported (5 GHz) | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11ac: Up to 866.7 Mbps (MCS0-9, 2SS, 80 MHz, SGI) |
| Data Rates Supported (2.4 GHz) | 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps; 802.11n: MCS 0-15, up to 144.4 Mbps (20 MHz, SGI); |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-N-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, Internal antenna (AIR-AP1815T-N-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-N-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, Internal antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-N-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, Internal antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-N-K9.
