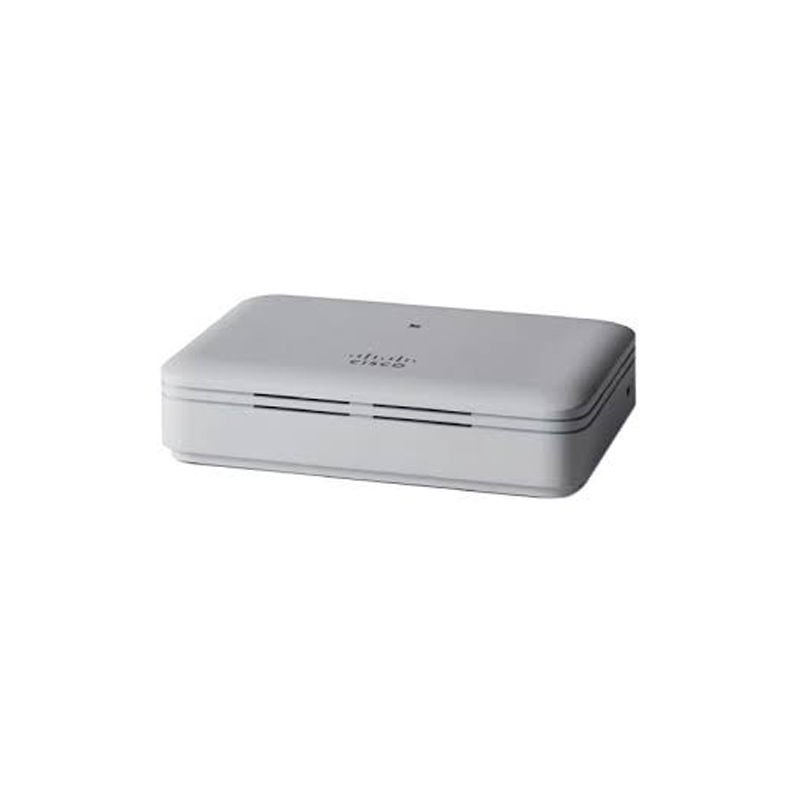

AIR-AP1815T-I-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet

Brand: Cisco · SKU: AIR-AP1815T-I-K9 · MPN: AIR-AP1815T-I-K9 · Category: Networking

AIR-AP1815T-I-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet
Request for Quote
In Stock • 10 units

Cisco Aironet AP1815T Series, Reg Domain I

View Wireless APs Products

Specifications

ModelAIR-AP1815T-I-K9
System512 MB DRAM 128 MB flash 710 MHz quad-core CPU
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later
ComplianceSafety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/ T71 (Japan), VCCI (Japan), EN 301.489-1/-17 (Europe), EN 50385, ICES-003 (Canada), EMI (Class B), FCC Part 15.107/109 IEEE standards: 802.11a/b/g, 802.11n, 802.11h, 802.11d, 802.11ac Security: 802.11i, WPA2, WPA, 802.1X, AES EAP types: TLS, TTLS or Microsoft CHAP v2, PEAP v0 or EAP-MSCHAPv2, FAST, PEAP v1 or EAP-GTC, EAP-SIM Multimedia: WMM Other: FCC Bulletin OET-65C, RSS-102
IndicatorsStatus LED shows boot loader status, association, operating status, warnings, errors
Interfaces1 x 10/100/1000BASE-T auto-sensing (RJ-45) 3 x 10/100/1000BASE-T local Ethernet ports, one supports PoE out (802.3af, powered by Cisco local power supply AIR-PWR-D=)
PoE Output802.3af: 15.4W at port
Power Draw8.5W (no PoE out and no USB)
AccessoriesPhysical security kit (AIR-SEC-50=, sold separately): includes 50 security screws for mounting, 50 RJ-45 caps, 2 unlock keys
EnvironmentalOperating temperature: 0°C to 40°C (32°F to 104°F) Operating humidity: 10% to 90% (non-condensing) Max altitude (operating): 3,000 m (9,843 ft) @ 40°C Storage temperature: -30°C to 70°C (-22°F to 158°F) Storage humidity: 10% to 90% (non-condensing) Max altitude (storage): 4,500 m (15,000 ft) @ 25°C
Ethernet PortsAuthentication with 802.1X or MAC filtered Dynamic VLAN per port Traffic locally switched or tunneled to controller
Maximum Clients200 per Wi-Fi radio, 400 clients per access point
802.11ac Features2x2 single-user/multi-user MIMO, two spatial streams Maximal ratio combining (MRC) 20-, 40-, and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic shift diversity (CSD) support
Physical SecurityKensington lock slot
Integrated Antennas2.4 GHz: gain 2 dBi 5 GHz: gain 3 dBi
Data Rates Supported802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps
Dimensions (W x L x H)6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) (without mounting bracket)
Input Power Requirements44 to 52V DC
Supported WLAN ControllersCisco 2500, 3500, 5500, 8500, Flex 7500, 9800 Series Wireless Controllers, WiSM2 for Catalyst 6500 Series, Wireless Controller Module for ISR G2
802.11ac Data Rates (5 GHz)MCS 0-9 (1 or 2 spatial streams): 6.5–866.7 Mbps, depending on guard interval and channel width See detailed table for rates per MCS index
Authentication and SecurityAdvanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) 802.1X, RADIUS authentication, authorization, and accounting (AAA) 802.11r, 802.11i
802.11n Data Rates (2.4 GHz)MCS 0-15: 6.5–144.4 Mbps, depending on guard interval and channel width See detailed table for rates per MCS index
Available Transmit Power Settings2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) Note: Maximum power varies by channel and country regulations.
Maximum Number of Non-overlapping ChannelsSupports multiple regulatory domains (A, B, C, D, E, F, G, H, I, K, N, Q, R, S, T, Z). 2.4 GHz: Up to 13 channels 5 GHz: Up to 12 channels (varies by domain) Note: This varies by regulatory domain. Refer to product documentation for details.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1815T-I-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet (AIR-AP1815T-I-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1815T-I-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1815T-I-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave 2/2x2 MIMO/Gigabit Ethernet compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-I-K9.
