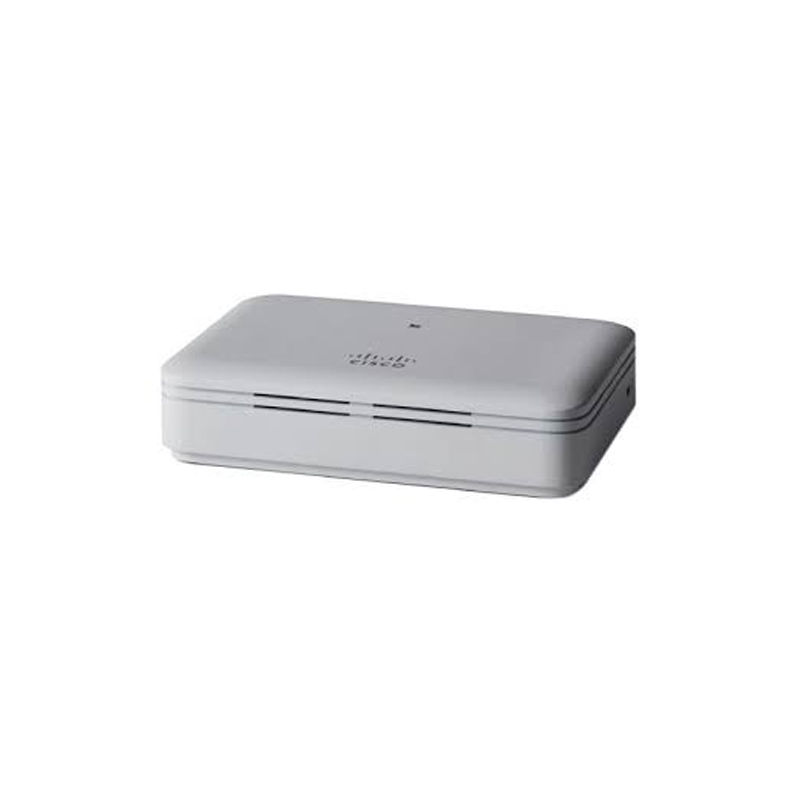

AIR-AP1815T-K-K9, Cisco Aironet AP1815T Access Point, Dual-band 802.11ac/2x2 MIMO/Gigabit Ethernet
Brand: Cisco · SKU: AIR-AP1815T-K-K9 · MPN: AIR-AP1815T-K-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet AP1815T Series, Reg Domain K
Specifications
| Note | Channel availability and max power setting vary by regulatory domain and country. Refer to product documentation for details. |
|---|---|
| Model | AIR-AP1815T-K-K9 |
| System | 512 MB DRAM 128 MB flash 710 MHz quad-core processor |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/ T71 (Japan), VCCI (Japan), EMI (Class B), EN 301.489-1/-17, EN 50385 IEEE: 802.11a/b/g, 802.11n, 802.11h, 802.11d, 802.11ac Security: 802.11i, WPA2, WPA, 802.1X, AES EAP types: EAP-TLS, EAP-TTLS or MSCHAPv2, PEAP v0 (EAP-MSCHAPv2), EAP-FAST, PEAP v1 or EAP-GTC, EAP-SIM Multimedia: Wi-Fi Multimedia (WMM) Other: FCC OET-65C, RSS-102 |
| Indicators | Status LED for boot loader, association, operation, warnings, and errors |
| PoE Output | 802.3af: 15.4 W at port (when powered by Cisco local supply) |
| Power Draw | 8.5 W (no PoE out and no USB) |
| Accessories | AIR-SEC-50= kit (sold separately): 50 security screws for wall-mount, 50 RJ-45 caps, 2 unlock keys for Ethernet port security |
| Ethernet Ports | 1 x 10/100/1000BASE-T autosensing (RJ-45); 3 x 10/100/1000BASE-T local Ethernet ports (one supports PoE out when powered by Cisco AIR-PWR-D=); authentication with 802.1X or MAC filter, dynamic VLAN or per port, local switching or tunnel to controller |
| Maximum Clients | 200 wireless clients per Wi-Fi radio (total 400 per access point) |
| 802.11ac Features | 2x2 SU/MU-MIMO with two spatial streams Maximal ratio combining (MRC) 20-, 40-, 80-MHz channels PHY data rate up to 866.7 Mbps (80 MHz at 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 DFS Cyclic shift diversity (CSD) |
| Physical Security | Kensington lock slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain 5 GHz: 3 dBi gain |
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n (2.4 GHz): up to 144.4 Mbps 802.11ac (5 GHz): up to 866.7 Mbps Detailed MCS index data available |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) |
| Transmit Power Settings | 2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) Note: Max power varies by channel and country |
| Input Power Requirements | 44 to 52 V DC |
| Environmental (Operation) | Temperature: 0°C to 40°C (32°F to 104°F) Humidity: 10% to 90% (non-condensing) Max altitude: 3,000 m (9,843 ft) at 40°C |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, Flex 7500, 8500, 9800 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco WiSM2 for Catalyst 6500 |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2 802.1X, RADIUS authentication, authorization, and accounting (AAA) 802.11r 802.11i |
| Environmental (Non-Operation) | Temperature: -30°C to 70°C (-22°F to 158°F) Humidity: 10% to 90% (non-condensing) Max altitude: 4,500 m (15,000 ft) at 25°C |
| Channels (Regulatory Domain K) | 2.412–2.472 GHz: 13 channels 5.180–5.320 GHz: 8 channels 5.500–5.620 GHz: 7 channels 5.745–5.805 GHz: 4 channels Note: Channel availability varies by country/regulatory domain |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-K-K9, Cisco Aironet AP1815T Access Point, Dual-band 802.11ac/2x2 MIMO/Gigabit Ethernet (AIR-AP1815T-K-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-K-K9, Cisco Aironet AP1815T Access Point, Dual-band 802.11ac/2x2 MIMO/Gigabit Ethernet includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-K-K9, Cisco Aironet AP1815T Access Point, Dual-band 802.11ac/2x2 MIMO/Gigabit Ethernet compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-K-K9.
