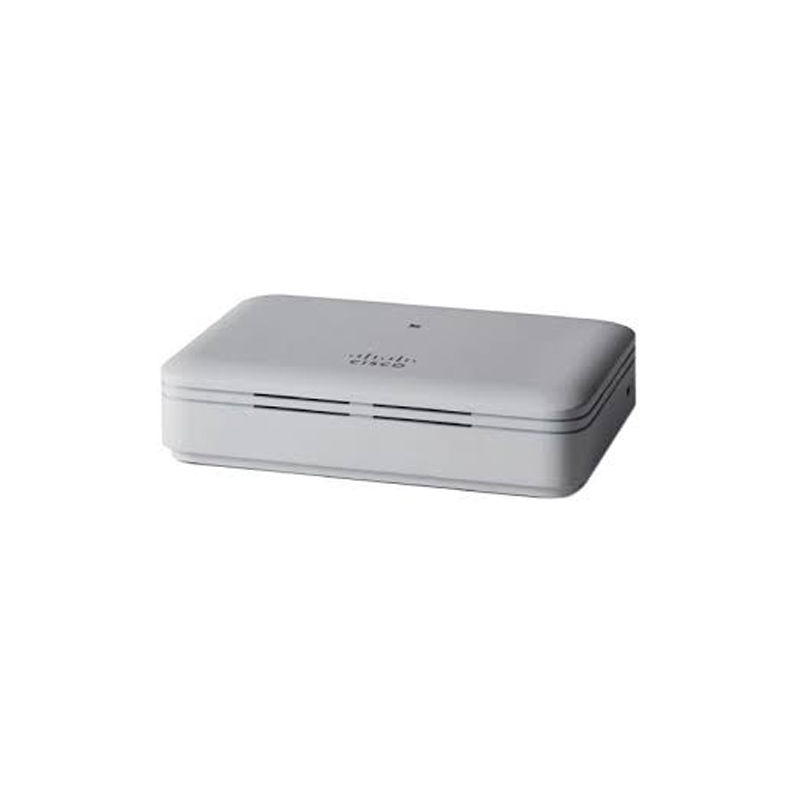

AIR-AP1815T-Z-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain Z
Brand: Cisco · SKU: AIR-AP1815T-Z-K9 · MPN: AIR-AP1815T-Z-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet AP1815T Series, Reg Domain Z
Specifications
| Model | AIR-AP1815T-Z-K9 |
|---|---|
| Notes | Maximum number of channels, transmit power, and data rates may vary by regulatory domain and channel. Refer to product documentation for detailed country-specific information. |
| System | 512 MB DRAM, 128 MB flash, 710 MHz quad-core processor |
| 802.11ac | 2x2 SU/MU-MIMO, two spatial streams, MRC, channel widths: 20/40/80 MHz, PHY rates up to 866.7 Mbps (80 MHz, 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), DFS, CSD support |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio: FCC Part 15.247, 15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/ T71 (Japan), VCCI (Japan), EN 301.489-1/-17 (Europe), EN 50385 IEEE: 802.11a/b/g/n/h/d/ac Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP-TLS, EAP-TTLS/MSCHAPv2, PEAP v0/EAP-MSCHAPv2, EAP-FAST, PEAP v1/EAP-GTC, EAP-SIM Multimedia: Wi-Fi Multimedia (WMM) Other: FCC OET-65C, RSS-102 |
| Indicators | Status LED: shows boot loader, association, operating state, warnings, errors |
| Interfaces | 1 x 10/100/1000BASE-T (RJ-45, autosensing); 3 x 10/100/1000BASE-T (local); including one PoE out port (802.3af PoE out when using Cisco local power supply AIR-PWR-D=) |
| PoE Output | 802.3af: 15.4 W at port |
| Power Draw | 8.5 W (no PoE out, no USB) |
| Accessories | Physical security kit AIR-SEC-50= (optional): 50 security screws and RJ-45 caps, 2 unlock keys (for mounting bracket and RJ-45 port security) |
| Environmental | Operating: 0°C–40°C (32°F–104°F), humidity 10%–90% (non-condensing), max altitude 3,000 m at 40°C Storage: -30°C–70°C (-22°F–158°F), humidity 10%–90% (non-condensing), max altitude 4,500 m at 25°C |
| Ethernet Ports | Authentication with 802.1X or MAC filter, Dynamic VLAN or per port, Locally switched or tunneled to controller |
| Maximum Clients | 200 clients per Wi-Fi radio; 400 clients per access point |
| Physical Security | Kensington lock slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 3 dBi gain |
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n (2.4 GHz): up to 144.4 Mbps 802.11ac (5 GHz): up to 866.7 Mbps ( See MCS details below ) |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) |
| Input Power Requirements | 44–52V DC |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, 7500, 8500, 9800 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization, and accounting (AAA), 802.11r, 802.11i |
| Available Transmit Power Settings | 2.4 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW) 5 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW) |
| 802.11ac Data Rates (5 GHz, MCS Table) | Up to 866.7 Mbps with 2 spatial streams, 80 MHz bandwidth, GI=400 ns |
| 802.11n Data Rates (2.4 GHz, MCS Table) | 20 MHz, GI=800ns: 6.5–130 Mbps (MCS 0–15); 20 MHz, GI=400ns: 7.2–144.4 Mbps (MCS 0–15) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-Z-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain Z (AIR-AP1815T-Z-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-Z-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain Z includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-Z-K9, Cisco Aironet AP1815T Series Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain Z compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-Z-K9.
