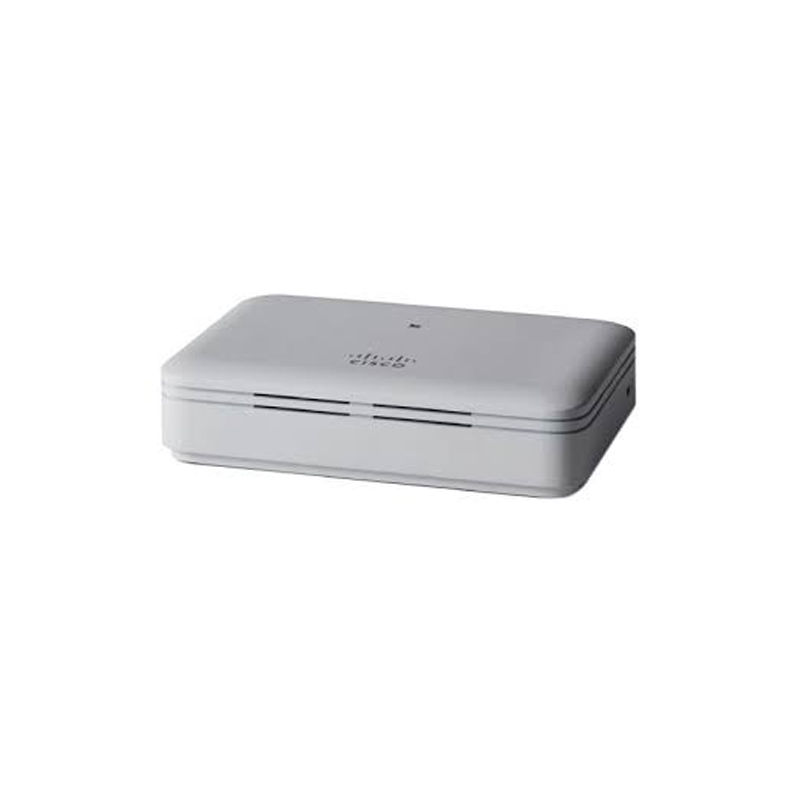

AIR-AP1815T-S-K9, Cisco Aironet AP1815T Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain S
Brand: Cisco · SKU: AIR-AP1815T-S-K9 · MPN: AIR-AP1815T-S-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet AP1815T Series, Reg Domain S
Specifications
| Model | AIR-AP1815T-S-K9 |
|---|---|
| System | 512 MB DRAM 128 MB flash 710 MHz quad-core CPU |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio: FCC Part 15.247, 15.407; RSS-247 (Canada); EN 300.328, EN 301.893 (Europe); ARIB-STD 66, ARIB-STD T71 (Japan); VCCI (Japan); EN 301.489-1/17 (Europe); EN 50385 EMI: FCC Part 15.107, 15.109; ICES-003 (Canada); EMI Class B IEEE: 802.11a/b/g/n/h/d/ac Security: 802.11i, WPA2, WPA, 802.1X, AES EAP Types: EAP-TLS, EAP-TTLS/MSCHAPv2, PEAP v0/v1, EAP-FAST, EAP-SIM, EAP-GTC Multimedia: Wi-Fi Multimedia (WMM) Other: FCC OET-65C, RSS-102 |
| Indicators | Status LED for boot, association, operation, warnings, and errors |
| Interfaces | 1 x 10/100/1000BASE-T autosensing (RJ-45) 3 x 10/100/1000BASE-T (local), incl. 1 PoE out port (IEEE 802.3af when powered by Cisco local power (AIR-PWR-D=)) |
| PoE Output | IEEE 802.3af: 15.4 W at port |
| Power Draw | 8.5 W (no PoE out, no USB) |
| Accessories | AIR-SEC-50= physical security kit (sold separately): 50 security screws for wall mount, 50 RJ-45 caps, 2 unlock keys for Ethernet ports |
| Environmental | Operating Temp: 0°C to 40°C (32°F to 104°F); Humidity: 10–90% non-condensing; Max altitude: 3,000 m (9,843 ft) @ 40°C Storage Temp: -30°C to 70°C (-22°F to 158°F); Humidity: 10–90% non-condensing; Max altitude: 4,500 m (15,000 ft) @ 25°C |
| Ethernet Ports | Authentication with 802.1X or MAC filter Dynamic VLAN or per port Traffic locally switched or tunneled to WLAN controller |
| Maximum Clients | 200 per Wi-Fi radio, up to 400 per access point |
| Additional Notes | Channel and transmit power settings vary by regulatory domain and country. Refer to official documentation for details. |
| 802.11ac Features | 2x2 single-user/multiuser MIMO, two spatial streams Maximal ratio combining (MRC) 20-, 40-, and 80-MHz channels PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic shift diversity (CSD) support |
| Physical Security | Kensington lock slot |
| Integrated Antennas | 2.4 GHz: 2 dBi 5 GHz: 3 dBi |
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n and 802.11ac supported on 2.4 GHz and 5 GHz |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) |
| Transmit Power Settings | 2.4 GHz: 20/17/14/11/8/5/2/-1 dBm (100/50/25/12.5/6.25/3.13/1.56/0.78 mW) 5 GHz: 20/17/14/11/8/5/2/-1 dBm (100/50/25/12.5/6.25/3.13/1.56/0.78 mW) |
| Input Power Requirements | 44 to 52 VDC |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, 7500, 8500, 9800 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2 802.1X, RADIUS authentication, authorization, and accounting (AAA) 802.11r 802.11i |
| Channel Support (Regulatory Domains) | Multiple regulatory domain options: 2.412–2.472 GHz (up to 13 channels), 5.180–5.865 GHz (up to 12 channels). Refer to documentation for exact channel numbers per domain. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-S-K9, Cisco Aironet AP1815T Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain S (AIR-AP1815T-S-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-S-K9, Cisco Aironet AP1815T Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain S includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-S-K9, Cisco Aironet AP1815T Access Point, 802.11ac Wave2/2x2 MIMO/Reg Domain S compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-S-K9.
