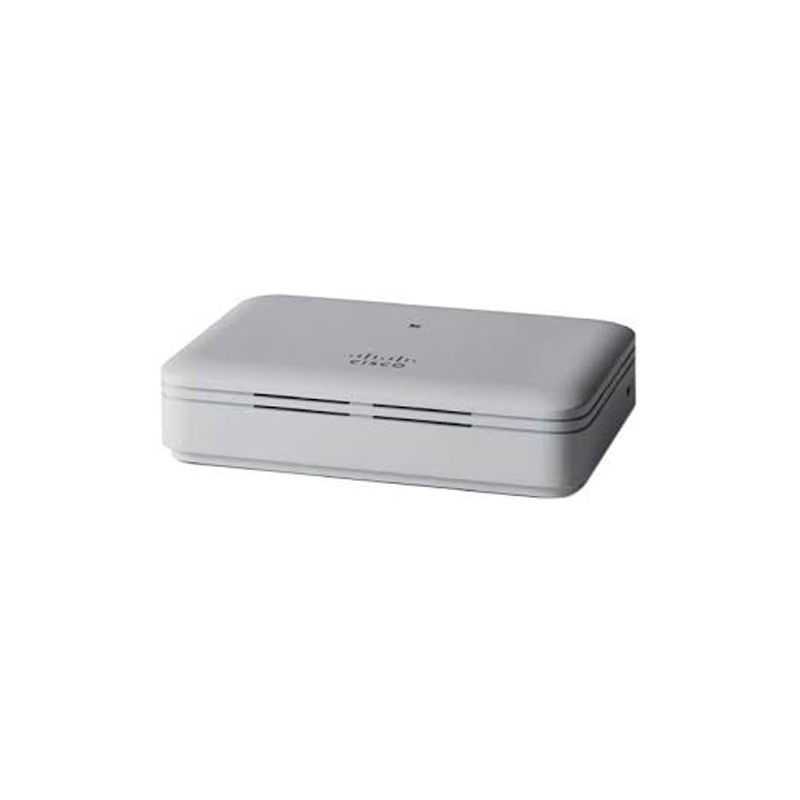

AIR-AP1815T-Q-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867Mbps, 802.11ac Wave2
Brand: Cisco · SKU: AIR-AP1815T-Q-K9 · MPN: AIR-AP1815T-Q-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet AP1815T Series, Reg Domain Q
Specifications
| Note | Channel and transmit power settings vary by regulatory domain and country. Refer to product documentation for detailed information. |
|---|---|
| Model | AIR-AP1815T-Q-K9 |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1; Radio: FCC Part 15.247/15.407, RSS-247 (Canada), EN 300.328, EN 301.893 (Europe), ARIB-STD 66/T71 (Japan), EMI and susceptibility (Class B), FCC Part 15.107/15.109, ICES-003 (Canada), VCCI (Japan), EN 301.489-1/-17 (Europe), EN 50385; IEEE: 802.11a/b/g/n/h/d, 802.11ac; Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP Types: TLS, TTLS/MSCHAPv2, PEAP v0/EAP-MSCHAPv2, EAP-FAST, PEAP v1/EAP-GTC, EAP-SIM; Multimedia: Wi-Fi Multimedia (WMM); Other: FCC Bulletin OET-65C, RSS-102 |
| Indicators | Status LED for boot loader, association, operation, warning, error |
| PoE Output | 802.3af: 15.4W at port (when powered by Cisco local power supply) |
| Power Draw | 8.5W (without PoE out and USB) |
| Accessories | Physical security kit (AIR-SEC-50=, sold separately): 50 security screws, 50 RJ-45 caps, 2 unlock keys |
| Ethernet Ports | 1 x 10/100/1000BASE-T (RJ-45, autosensing), 3 x 10/100/1000BASE-T (local ports) including 1 PoE out; Authentication with 802.1X or MAC filter, Dynamic VLAN, Traffic local or tunneled |
| Maximum Clients | 200 per Wi-Fi radio, 400 per access point |
| 802.11ac Features | 2x2 single-user/multiuser MIMO, 2 spatial streams, Maximal Ratio Combining (MRC), 20/40/80 MHz channels, PHY rates up to 866.7 Mbps (80 MHz, 5 GHz), Packet aggregation (A-MPDU, A-MSDU), 802.11 DFS, Cyclic shift diversity support |
| Physical Security | Kensington lock slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 3 dBi gain |
| Data Rates Supported | 802.11a: 6/9/12/18/24/36/48/54 Mbps; 802.11b/g: 1/2/5.5/6/9/11/12/18/24/36/48/54 Mbps; 802.11n (2.4 GHz): up to 144.4 Mbps; 802.11ac (5 GHz): up to 866.7 Mbps |
| System Memory and CPU | 512 MB DRAM, 128 MB flash, 710 MHz quad-core processor |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) |
| Software Compatibility | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Transmit Power Settings | 2.4 GHz: 20/17/14/11/8/5/2/-1 dBm (100/50/25/12.5/6.25/3.13/1.56/0.78 mW); 5 GHz: same levels |
| Input Power Requirements | 44 to 52V DC |
| Non-Overlapping Channels | Varies by regulatory domain: 2.412–2.472 GHz (up to 13 channels), 5.180–5.865 GHz (various channels). Refer to product documentation for details by domain. |
| Environmental (Operating) | Temperature: 0°C to 40°C (32°F to 104°F); Humidity: 10%–90% (non-condensing); Max altitude: 3,000 m (9,843 ft) @ 40°C |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, Flex 7500, 8500, 9800 Series Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication/authorization/accounting (AAA), 802.11r, 802.11i |
| Environmental (Non-Operating) | Temperature: -30°C to 70°C (-22°F to 158°F); Humidity: 10%–90% (non-condensing); Max altitude: 4,500 m (15,000 ft) @ 25°C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-Q-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867Mbps, 802.11ac Wave2 (AIR-AP1815T-Q-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-Q-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867Mbps, 802.11ac Wave2 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-Q-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867Mbps, 802.11ac Wave2 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-Q-K9.
