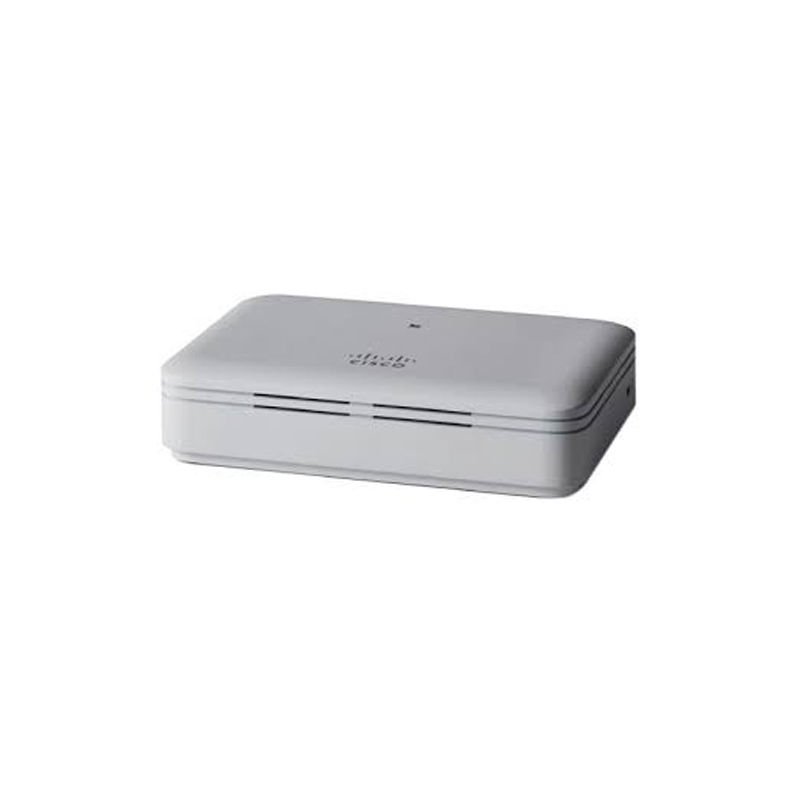

AIR-AP1815T-E-K9, Cisco Aironet 1815T Series Access Point, 802.11ac Wave2 / 2x2 MIMO / 867Mbps
Brand: Cisco · SKU: AIR-AP1815T-E-K9 · MPN: AIR-AP1815T-E-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet 1815T Series, Reg Domain E
Specifications
| Model | AIR-AP1815T-E-K9 |
|---|---|
| System | 512 MB DRAM 128 MB flash 710 MHz quad-core processor |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio approvals: FCC Part 15.247/15.407, RSS-247 (Canada), EN 300.328/301.893 (Europe), ARIB-STD 66/T71 (Japan), VCCI (Japan), EN 301.489-1/-17 (Europe), EN 50385, ICES-003 (Canada). IEEE standards: IEEE 802.11a/b/g/n/h/d, 802.11ac Security: 802.11i, WPA2, WPA, 802.1X, AES EAP types: EAP-TLS, EAP-TTLS (MSCHAPv2), PEAP v0 (EAP-MSCHAPv2), EAP-FAST, PEAP v1 (EAP-GTC), EAP-SIM Multimedia: Wi-Fi Multimedia (WMM) Other: FCC Bulletin OET-65C, RSS-102 |
| Indicators | Status LED: boot loader status, association, operation, warnings, errors |
| Interfaces | 1 x 10/100/1000BASE-T (RJ-45) autosensing 3 x 10/100/1000BASE-T local Ethernet ports, including 1 PoE out port PoE out provides 802.3af when powered by Cisco local supply (AIR-PWR-D=) |
| PoE Output | 802.3af: 15.4 W at port |
| Power Draw | 8.5 W (no PoE out, no USB) |
| Accessories | Optional: Physical security kit AIR-SEC-50= (sold separately) - 50 security screws, 50 RJ-45 caps, 2 unlock keys |
| Environmental | Operating: 0°C to 40°C (32°F to 104°F), humidity 10%–90% (non-condensing), altitude up to 3,000 m Non-operating: -30°C to 70°C (-22°F to 158°F), humidity 10%–90% (non-condensing), altitude up to 4,500 m |
| Ethernet Ports | Authentication with 802.1X or MAC filter Dynamic VLAN or per port Traffic locally switched or tunneled to wireless LAN controller |
| Maximum Clients | Up to 200 wireless clients per Wi-Fi radio; 400 clients per access point |
| 802.11ac Features | 2x2 single-user/multiuser MIMO, 2 spatial streams Maximal ratio combining (MRC) Channel bandwidth: 20, 40, 80 MHz PHY data rates up to 866.7 Mbps (80 MHz, 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic shift diversity (CSD) support |
| Physical Security | Kensington lock slot |
| Integrated Antennas | 2.4 GHz: gain 2 dBi 5 GHz: gain 3 dBi |
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n on 2.4 GHz: MCS 0–15, up to 144.4 Mbps 802.11ac on 5 GHz: MCS 0–9, 1/2 spatial streams, up to 866.7 Mbps |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) (without mounting bracket) |
| Input Power Requirements | 44–52V DC |
| Supported WLAN Controllers | Cisco 2500 Series, 3500 Series, 5500 Series, 8500 Series, 9800 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches; Cisco Flex 7500 Series Wireless Controllers |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2 802.1X, RADIUS authentication, authorization, and accounting (AAA) 802.11r 802.11i |
| Available Transmit Power Settings | 2.4 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW) 5 GHz: 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), -1 dBm (0.78 mW) (Maximum power settings may vary by channel and country.) |
| Maximum Number of Non-overlapping Channels | Varies by regulatory domain. Supported on 2.4 GHz and 5 GHz bands. (Refer to product documentation for detailed channel availability per domain.) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-E-K9, Cisco Aironet 1815T Series Access Point, 802.11ac Wave2 / 2x2 MIMO / 867Mbps (AIR-AP1815T-E-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-E-K9, Cisco Aironet 1815T Series Access Point, 802.11ac Wave2 / 2x2 MIMO / 867Mbps includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-E-K9, Cisco Aironet 1815T Series Access Point, 802.11ac Wave2 / 2x2 MIMO / 867Mbps compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-E-K9.
