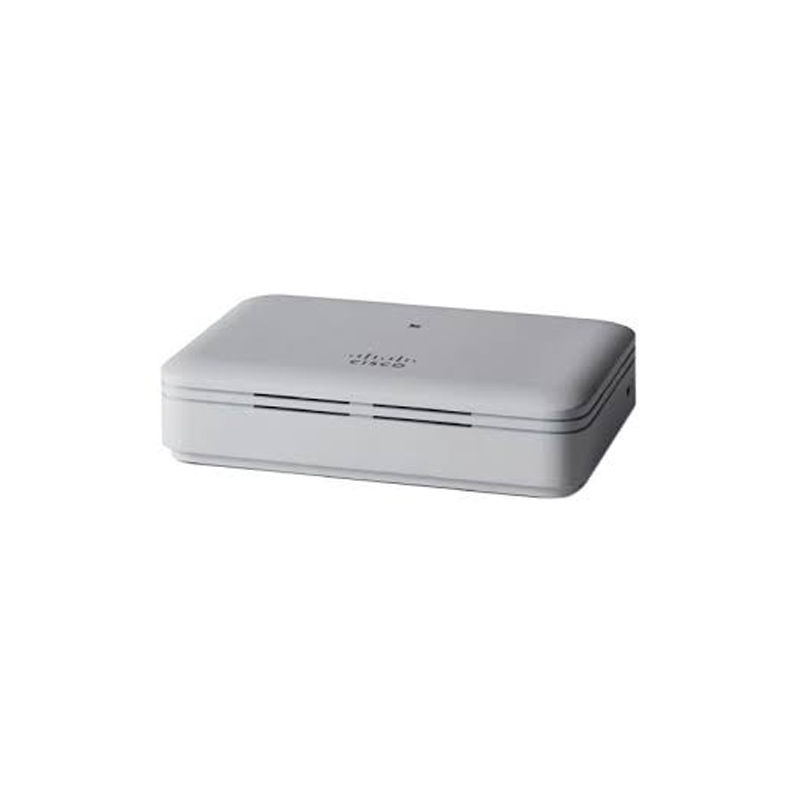

AIR-AP1815T-H-K9, Cisco Aironet 1815T Access Point, 867Mbps/2x2 MIMO/PoE
Brand: Cisco · SKU: AIR-AP1815T-H-K9 · MPN: AIR-AP1815T-H-K9 · Category: Networking
Cisco Aironet AP1815T Series, Reg Domain H
Specifications
| Model | AIR-AP1815T-H-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Compliance | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC/EN 60950-1 FCC Part 15.247/15.407/15.107/15.109, ICES-003, RSS-247 (Canada), EN 300.328, EN 301.893, EN 50385 ARIB-STD 66/T71 (Japan), EMI and susceptibility (Class B), VCCI (Japan), EN 301.489-1/-17 (Europe) IEEE 802.11a/b/g/n/h/d/ac standards Security: 802.11i, WPA2, WPA, 802.1X, AES EAP types: TLS, TTLS, PEAP, FAST, GTC, SIM Wi-Fi Multimedia (WMM) FCC Bulletin OET-65C, RSS-102 |
| Indicators | Status LED (boot loader, association, operation, warnings, errors) |
| PoE Output | 802.3af, 15.4 W at port (when powered by Cisco local power supply) |
| Power Draw | 8.5 W (no PoE out and no USB) |
| Accessories | Optional physical security kit (AIR-SEC-50=, sold separately): 50 security screws, 50 RJ-45 caps, 2 unlock keys |
| Environmental | Operating: 0° to 40°C, 10%–90% RH (non-condensing), max altitude 3000 m @ 40°C Storage: -30° to 70°C, 10%–90% RH (non-condensing), max altitude 4500 m @ 25°C |
| Ethernet Ports | 1 x 10/100/1000BASE-T autosensing (RJ-45); 3 x 10/100/1000BASE-T local Ethernet ports (incl. 1 PoE out), authentication with 802.1X or MAC filter, dynamic VLAN or per port, local or tunneled traffic |
| Maximum Clients | 200 clients per Wi-Fi radio, total 400 clients per access point |
| System Hardware | 512 MB DRAM, 128 MB flash, 710 MHz quad-core |
| 802.11ac Features | 2x2 SU/MU-MIMO with 2 spatial streams Maximal ratio combining (MRC) 20-, 40-, 80-MHz channels PHY rates up to 866.7 Mbps (80 MHz on 5 GHz) Packet aggregation (A-MPDU, A-MSDU) 802.11 DFS Cyclic shift diversity (CSD) |
| Physical Security | Kensington lock slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain 5 GHz: 3 dBi gain |
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n up to 144.4 Mbps (20 MHz GI = 400 ns, 2 spatial streams) 802.11ac up to 866.7 Mbps (80 MHz GI = 400 ns, 2 spatial streams) |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm) |
| Transmit Power Settings | 2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) |
| Input Power Requirements | 44–52 V DC |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, 7500, 8500, 9800 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Wireless Services Module 2 (WiSM2) for Catalyst 6500 |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2 802.1X, RADIUS AAA 802.11r 802.11i |
| Maximum Non-overlapping Channels | 2.4 GHz: 11 or 13 channels (domain dependent) 5 GHz: up to 12 channels, availability by regulatory domain (details in product docs) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-H-K9, Cisco Aironet 1815T Access Point, 867Mbps/2x2 MIMO/PoE (AIR-AP1815T-H-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-H-K9, Cisco Aironet 1815T Access Point, 867Mbps/2x2 MIMO/PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-H-K9, Cisco Aironet 1815T Access Point, 867Mbps/2x2 MIMO/PoE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-H-K9.
