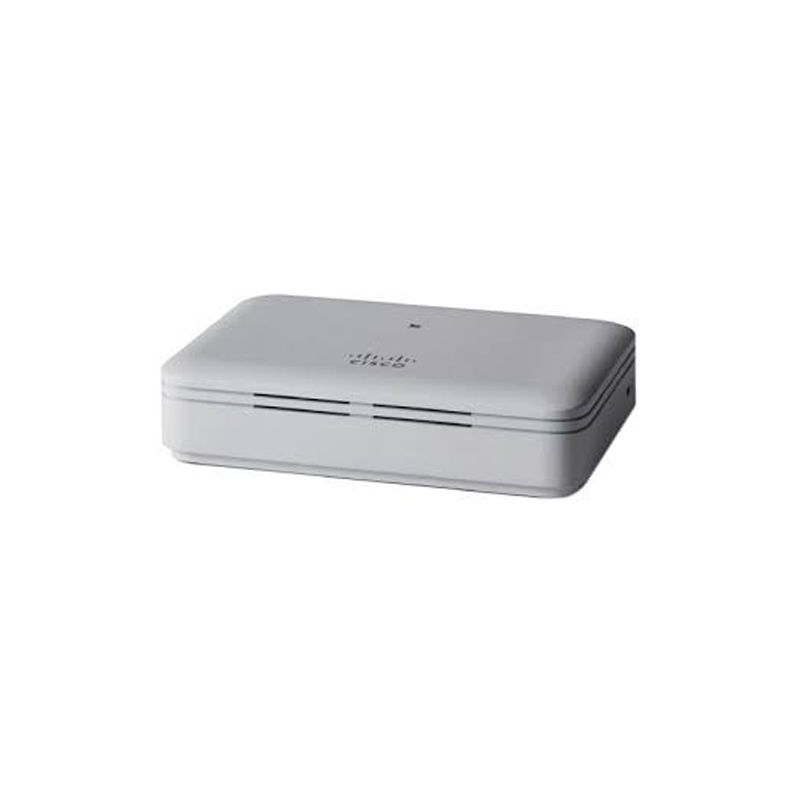

AIR-AP1815T-T-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, 2.4/5 GHz
Brand: Cisco · SKU: AIR-AP1815T-T-K9 · MPN: AIR-AP1815T-T-K9 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco Aironet AP1815T Series, Reg Domain T
Specifications
| Note | Channel availability and power settings vary by regulatory domain; refer to documentation. |
|---|---|
| Model | AIR-AP1815T-T-K9 |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio: FCC Part 15.247/15.407/15.107/15.109, RSS-247, ICES-003, EN 300.328, EN 301.893, EN 301.489-1/-17, VCCI, ARIB-STD 66/71, EN 50385, EMI Class B IEEE: 802.11a/b/g, 802.11n, 802.11h, 802.11d, 802.11ac Security: 802.11i, WPA2, WPA, 802.1X, AES EAP Types: TLS, TTLS (or MSCHAPv2), PEAP v0 (or MSCHAPv2), FAST, PEAP v1 (or GTC), EAP-SIM Multimedia: WMM Other: FCC Bulletin OET-65C, RSS-102 |
| Interfaces | 1 x 10/100/1000BASE-T RJ-45 autosensing Three 10/100/1000BASE-T (local ports), one with PoE out (802.3af when powered by Cisco local supply AIR-PWR-D=) |
| PoE Output | 802.3af: 15.4W at port |
| Power Draw | 8.5W (no PoE out, no USB) |
| Accessories | Physical security kit: AIR-SEC-50= (sold separately), 50 security screws (for wall-mount), 50 RJ-45 caps, 2 unlock keys (block physical Ethernet port access) |
| Environmental | Operating: 0°C to 40°C (32°F to 104°F), Humidity 10%-90% non-condensing, Max altitude 3,000 m (9,843 ft) at 40°C Non-operating: -30°C to 70°C (-22°F to 158°F), Humidity 10%-90% non-condensing, Max altitude 4,500 m (15,000 ft) at 25°C |
| Ethernet Ports | Authentication with 802.1X or MAC filter Dynamic VLAN or per port Local switching or tunnel to wireless LAN controller |
| LED Indicators | Status LED: boot loader status, association, operation, warnings, errors |
| 802.11ac Features | 2x2 SU/MU-MIMO with two spatial streams Maximal Ratio Combining (MRC) 20-, 40-, and 80-MHz channels PHY rates up to 866.7 Mbps (80 MHz at 5 GHz) A-MPDU (Tx/Rx), A-MSDU (Rx) aggregation 802.11 DFS Cyclic shift diversity (CSD) |
| Physical Security | Kensington lock slot |
| Integrated Antennas | 2.4 GHz: Gain 2 dBi 5 GHz: Gain 3 dBi |
| System Memory and CPU | 512 MB DRAM, 128 MB flash 710 MHz quad-core |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm), without mounting bracket |
| Transmit Power Settings | 2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100 to 0.78 mW) |
| Input Power Requirements | 44 to 52V DC |
| Maximum Wireless Clients | 200 per Wi-Fi radio; up to 400 clients per access point |
| Supported WLAN Controllers | Cisco 2500, 3500, 5500, 7500, 8500, 9800 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; WiSM2 for Catalyst 6500 Series Switches |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2 802.1X, RADIUS authentication, authorization, and accounting (AAA) 802.11r 802.11i |
| Supported Data Rates (802.11a/b/g/n/ac) | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n (2.4 GHz): MCS 0-15, up to 144.4 Mbps 802.11ac (5 GHz): MCS 0-9, up to 866.7 Mbps |
| Maximum Channel Numbers (by Regulatory Domain) | Regulatory domains A, B, C, D, E, F, G, H, I, K, N, Q, R, S, T, Z supported. Refer to product documentation for detailed allocation per frequency band and region. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-T-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, 2.4/5 GHz (AIR-AP1815T-T-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-T-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, 2.4/5 GHz includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-T-K9, Cisco Aironet AP1815T Series Access Point, 2x2 MIMO, 867 Mbps, 2.4/5 GHz compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-T-K9.
