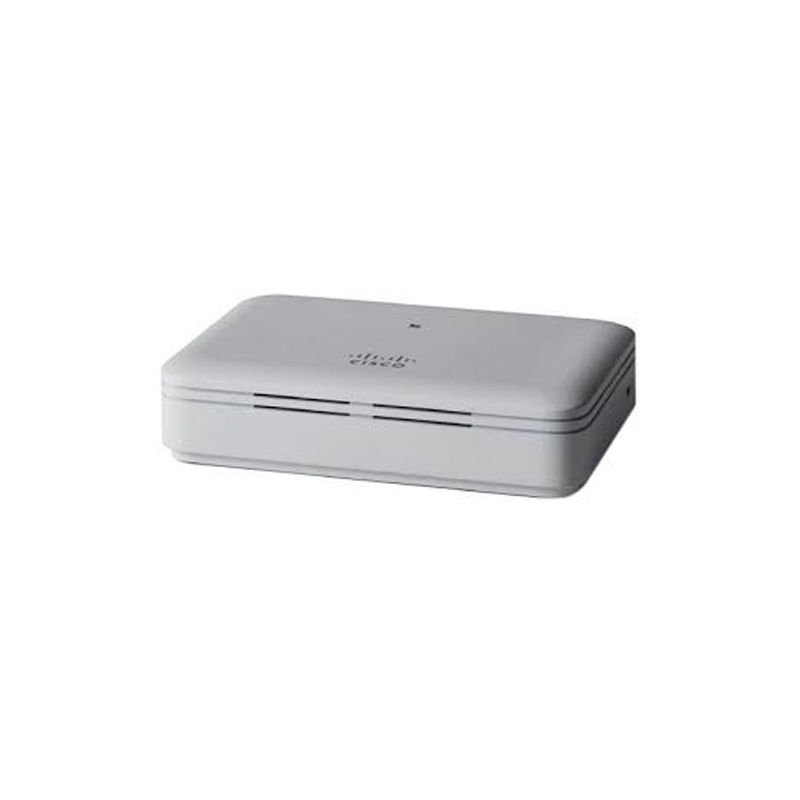

AIR-AP1815T-B-K9, Cisco Aironet 1815T Access Point, 802.11ac Wave 2/2x2 MU-MIMO/Gigabit Ethernet
Brand: Cisco · SKU: AIR-AP1815T-B-K9 · MPN: AIR-AP1815T-B-K9 · Category: Networking
Cisco Aironet 1815T Series (for US), Reg Domain B
Specifications
| Model | AIR-AP1815T-B-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| Compliance | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1; Radio: FCC Part 15.247/15.407, RSS-247 (Canada), EN 300.328/301.893 (Europe), ARIB-STD 66/71 (Japan), VCCI (Japan), EN 301.489-1/-17 (Europe), EN 50385; Standards: IEEE 802.11a/b/g/n/h/d/ac; Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP: TLS, TTLS, MSCHAPv2, PEAPv0, FAST, PEAPv1, GTC, SIM; Multimedia: WMM; Other: FCC OET-65C, RSS-102 |
| Interfaces | 1 x 10/100/1000BASE-T autosensing (RJ-45); 3 local Ethernet ports (one PoE out provides 802.3af when powered by Cisco local power supply AIR-PWR-D=) |
| PoE Output | 802.3af: 15.4 W at port |
| Power Draw | 8.5 W (no PoE out and no USB) |
| Accessories | Physical security kit (AIR-SEC-50=, sold separately): 50 security screws, 50 RJ-45 caps, 2 unlock keys for Ethernet port security |
| Environmental | Operating: 0°C to 40°C, 10%–90% humidity (non-condensing), max altitude 3000 m at 40°C; Storage: -30°C to 70°C, 10%–90% humidity (non-condensing), max altitude 4500 m at 25°C |
| Ethernet Ports | 1 x 10/100/1000BASE-T autosensing (RJ-45), 3 local Ethernet ports including 1 PoE out; authentication with 802.1X or MAC filtered; dynamic VLAN or per port; traffic locally switched or tunneled |
| Maximum Clients | 200 per Wi-Fi radio, total 400 clients per access point |
| System Hardware | 512 MB DRAM, 128 MB flash, 710 MHz quad-core processor |
| 802.11ac Features | 2x2 SU/MU MIMO, two spatial streams, MRC, 20/40/80 MHz channels, peak PHY rate up to 866.7 Mbps (80 MHz at 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) |
| Physical Security | Kensington lock slot |
| Status Indicators | Status LED: boot loader, association, operation, warnings, and errors |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 3 dBi gain |
| Specification Notes | Channel and power limits vary by country and regulatory domain. Refer to product documentation for specifics. |
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps; 802.11n (2.4 GHz): 6.5–144.4 Mbps; 802.11ac (5 GHz): up to 866.7 Mbps (detailed per MCS and channel width) |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm), without mounting bracket |
| Transmit Power Settings | 2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm; 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm; (max varies by channel and regulatory domain) |
| Input Power Requirements | 44 to 52 V DC |
| Supported WLAN Controllers | Cisco 2500/3500/5500/7500/8500/9800 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500 Series Switches |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization, and accounting (AAA), 802.11r, 802.11i |
| Maximum Non-Overlapping Channels | Varies by regulatory domain; 2.412–2.472 GHz and 5.180–5.865 GHz coverage, detailed per domain (see documentation for specific region configurations) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-B-K9, Cisco Aironet 1815T Access Point, 802.11ac Wave 2/2x2 MU-MIMO/Gigabit Ethernet (AIR-AP1815T-B-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-B-K9, Cisco Aironet 1815T Access Point, 802.11ac Wave 2/2x2 MU-MIMO/Gigabit Ethernet includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-B-K9, Cisco Aironet 1815T Access Point, 802.11ac Wave 2/2x2 MU-MIMO/Gigabit Ethernet compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-B-K9.
