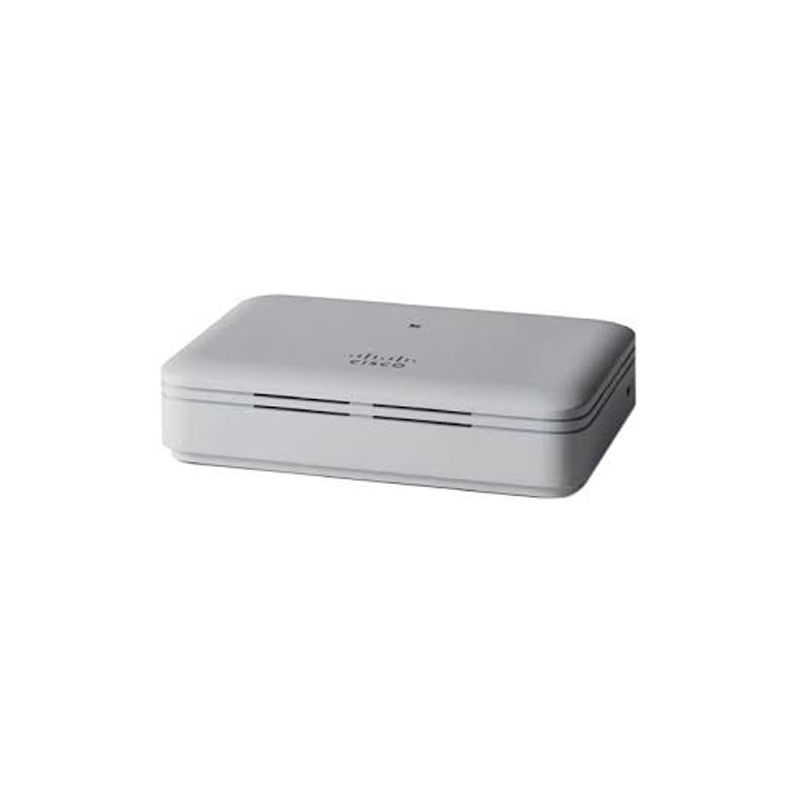

AIR-AP1815T-A-K9, Cisco Aironet 1815T Series Access Point, 2x2 MIMO/867 Mbps/PoE
Brand: Cisco · SKU: AIR-AP1815T-A-K9 · MPN: AIR-AP1815T-A-K9 · Category: Networking
Cisco Aironet 1815T Series (non US), Reg Domain A
Specifications
| Model | AIR-AP1815T-A-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later |
| PoE Output | 802.3af: 15.4 W at PoE port |
| Power Draw | 8.5 W (no PoE out, no USB in use) |
| Ethernet Ports | 1 x 10/100/1000BASE-T autosensing (RJ-45); 3 x 10/100/1000BASE-T local Ethernet ports (one PoE out port). PoE out supports 802.3af when powered by Cisco local supply. Supports 802.1X/MAC filter, dynamic VLAN, local/tunneled traffic |
| Maximum Clients | 200 per Wi-Fi radio, total 400 per access point |
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac, 802.11h, 802.11d |
| Additional Notes | Channel availability and transmit power vary by regulatory domain and country regulations. Please refer to the product documentation for domain-specific details. |
| System Resources | 512 MB DRAM, 128 MB flash, 710 MHz quad-core CPU |
| 802.11ac Features | 2x2 single-user/multiuser MIMO, two spatial streams, MRC, 20/40/80 MHz channels, PHY rates up to 866.7 Mbps (80 MHz, 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), DFS, CSD support |
| Physical Security | Kensington lock slot |
| Status Indicators | Status LED shows boot, association, operating, warning, and error status |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 3 dBi gain |
| Supported Data Rates | 802.11a: 6–54 Mbps; 802.11b/g: 1–54 Mbps; 802.11n (2.4 GHz): MCS 0~15, 6.5–144.4 Mbps; 802.11ac (5 GHz): MCS 0~9, up to 866.7 Mbps (2 spatial streams, 80 MHz) |
| Accessories (Optional) | Physical Security Kit: AIR-SEC-50= (sold separately), includes security screws, RJ-45 caps, unlock keys |
| Compliance & Standards | Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC/EN 60950-1; Radio Approvals: FCC Part 15.247/15.407/15.107/15.109, RSS-247, EN 300.328/301.893, ARIB-STD 66/T71, VCCI, ICES-003, EN 301.489-1/-17, EN 50385; IEEE 802.11a/b/g/n/ac/h/d; Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP Types: TLS, TTLS/MSCHAPv2, PEAP v0/v1, FAST, GTC, SIM; Wi-Fi Multimedia (WMM); EMI and susceptibility (Class B); FCC OET-65C; RSS-102 |
| Dimensions (W x L x H) | 6 x 4 x 1.5 in (152.4 x 101.6 x 37.7 mm), without mounting bracket |
| Transmit Power Settings | 2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100–0.78 mW); 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm (100–0.78 mW). Max power depends on country regulations. |
| Input Power Requirements | 44 to 52 V DC |
| Supported WLAN Controllers | Cisco 2500/3500/5500/8500/9800 Series, Cisco Flex 7500, WiSM2 for Catalyst 6500, Wireless Controller Module for ISR G2 |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication/authorization/accounting (AAA), 802.11r, 802.11i |
| Environmental Operating Range | Operating: 0 to 40°C (32 to 104°F), 10% to 90% humidity, max. altitude 3,000 m @ 40°C; Storage: -30 to 70°C (-22 to 158°F), 10% to 90% humidity, max. altitude 4,500 m @ 25°C |
| Channel Availability (by Regulatory Domain) | Multiple domains supported: 2.412–2.472 GHz (11–13 channels); 5.180–5.865 GHz (3–12 channels, depending on domain). Refer to product documentation for domain-specific details. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1815T-A-K9, Cisco Aironet 1815T Series Access Point, 2x2 MIMO/867 Mbps/PoE (AIR-AP1815T-A-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1815T-A-K9, Cisco Aironet 1815T Series Access Point, 2x2 MIMO/867 Mbps/PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1815T-A-K9, Cisco Aironet 1815T Series Access Point, 2x2 MIMO/867 Mbps/PoE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815T-A-K9.
