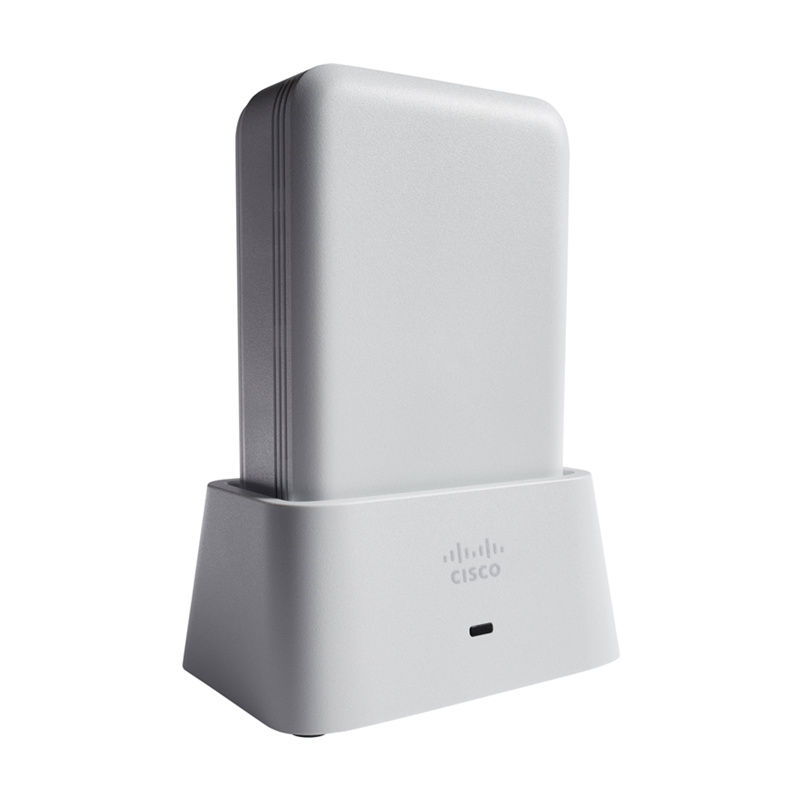

AIR-AP1810W-N-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE
Brand: Cisco · SKU: AIR-AP1810W-N-K9 · MPN: AIR-AP1810W-N-K9 · Category: Networking
802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, N Regulatory Domain
Specifications
| Model | AIR-AP1810W-N-K9 |
|---|---|
| Indicators | Status LED (boot loader, association, operation, warnings, errors); per-port status LEDs; Privacy feature: LEDs turn off automatically when joining a controller, can be enabled via admin settings |
| Interfaces | One 10/100/1000BASE-T PoE uplink; Management console (RJ-45); Three 10/100/1000BASE-T local Ethernet ports (including one PoE out); One passive pass-through RJ-45 port; DC power connector PoE out: 802.3af with Cisco local power (AIR-PWR-C=, AIR-PWR-D=), ~6.5W with 802.3at, none with 802.3af |
| Power Draw | Max 12.95W (15.4W with 100m cable) without PoE out; 20.7W (22W with 100m cable) with 6.49W PoE out; 27.65W with 12.95W PoE out (with AIR-PWR-C or AIR-PWR-D) Note: Values include power loss for 100m cabling on uplink and PoE out ports |
| Accessories | Mounting bracket: AIR-AP-BRACKET-W2=; Spacer kit: AIR-AP1810W-KIT= (spacer/RJ-45 jumper); Cradle kit: AIR-OEAP1810-CRD= (back cover/RJ-45 jumper); Physical security kit: AIR-SEC-50= (security screws, RJ-45 caps, unlock keys); Cisco local power supply: AIR-PWR-D= (sold separately) |
| Ethernet Ports | Authentication with 802.1X or MAC filtered; dynamic VLAN or per port; traffic can be locally switched or tunneled to wireless LAN controller |
| Maximum Clients | 200 per Wi-Fi radio, up to 400 clients per access point |
| System Hardware | 512 MB DRAM; 256 MB flash; 1.4 GHz dual-core CPU |
| Mounting Options | Supplied bracket: AIR-AP-BRACKET-W2, compatible with single gang and multiple international standards. Optional kits: AIR-AP1810W-KIT= (spacer for wall installation without standard boxes), AIR-OEAP1810-CRD= (desk mounting cradle) |
| Powering Options | 802.3af/at Ethernet switch; Optional Cisco power injector (AIR-PWRINJ5=, AIR-PWRINJ6=); Optional local power supply (AIR-PWR-C=, AIR-PWR-D=) |
| 802.11ac Features | 2x2 SU-/MU-MIMO, two spatial streams; Maximal Ratio Combining (MRC); 20/40/80 MHz channels; up to 866.7 Mbps (80 MHz on 5 GHz); A-MPDU (Tx/Rx), A-MSDU (Rx); DFS; Cyclic Shift Diversity (CSD) support |
| Physical Security | Torx security screw (included); Kensington security slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 4 dBi gain |
| Dimensions (W x L x H) | 6.5 x 4.5 x 1.6 in (165 x 114 x 41 mm) without mounting bracket |
| Software Compatibility | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Environmental Conditions | Storage temp: -22° to 158°F (-30° to 70°C), up to 15,000 ft (4,500 m); Operating temp: 32° to 104°F (0° to 40°C), up to 9,843 ft (3,000 m); Operating humidity: 10% to 90% (noncondensing) |
| Input Power Requirements | 44–57V DC; Optional power supply and injector: 100–240V AC, 49–60 Hz |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2; 802.1X; RADIUS authentication, authorization and accounting (AAA); 802.11i |
| Bluetooth (Availability Forthcoming) | Integrated Bluetooth 4.1 (including BLE); Max transmit power: 5 dBm; Antenna gain: 2 dBi |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1810W-N-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE (AIR-AP1810W-N-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1810W-N-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1810W-N-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-N-K9.
