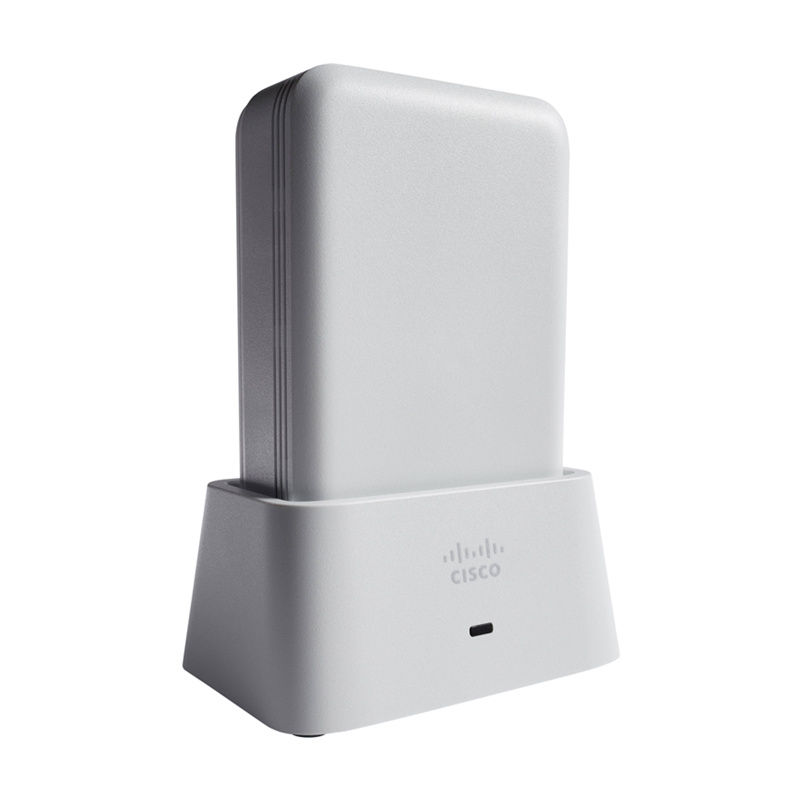

AIR-AP1810W-I-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE
Brand: Cisco · SKU: AIR-AP1810W-I-K9 · MPN: AIR-AP1810W-I-K9 · Category: Networking
802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, I Regulatory Domain
Specifications
| Model | AIR-AP1810W-I-K9 |
|---|---|
| 802.11ac | 2x2 single-user/multiuser MIMO (2 spatial streams); Maximal ratio combining (MRC); 20, 40, 80 MHz channel width; PHY rates up to 866.7 Mbps (80 MHz on 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx); 802.11 Dynamic Frequency Selection (DFS); Cyclic shift diversity (CSD) support |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Indicators | Status LED: boot loader status, association, operation, warnings, errors; Per-port status for local Ethernet ports; LEDs auto-off when joined to controller; can be admin enabled |
| Interfaces | 1 x 10/100/1000BASE-T PoE uplink port; Management console port (RJ-45); 3 x 10/100/1000BASE-T local Ethernet ports (1 PoE out port) PoE out provides 802.3af when powered by Cisco local supply (AIR-PWR-C=, AIR-PWR-D=), ~6.5W when powered by 802.3at, or no output when powered by 802.3af; 1 passive pass-through port RJ-45; DC power connector |
| Accessories | AIR-AP-BRACKET-W2= (spare mounting bracket); AIR-AP1810W-KIT= (spacer, RJ-45 jumper cable); AIR-OEAP1810-CRD= (back cover, RJ-45 jumper cable); AIR-SEC-50= (security kit: screws, RJ-45 caps, unlock keys); AIR-PWR-D= (Cisco local power supply) |
| Ethernet Ports | Authentication: 802.1X or MAC filtered; Dynamic VLAN or per port; Traffic locally switched or tunneled to wireless LAN controller |
| Maximum Clients | 200 clients per Wi-Fi radio; 400 clients per access point (total) |
| System Hardware | 512 MB DRAM; 256 MB flash; 1.4 GHz dual-core CPU |
| Mounting Options | Mounting bracket AIR-AP-BRACKET-W2 (included, compatible with single gang junction box or international standards); Optional: AIR-AP1810W-KIT= (spacer kit for non-standard walls); Optional: AIR-OEAP1810-CRD= (cradle kit for desk mounting) |
| Powering Options | 802.3af/at Ethernet switch; Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=); Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=) |
| Physical Security | Torx security screw included; Kensington security slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 4 dBi gain |
| Dimensions (W x L x H) | 6.5 x 4.5 x 1.6 in (165 x 114 x 41 mm) (without mounting bracket) |
| Power Draw (Max Values) | 12.95W (15.4W with 100m cable) without PoE out; 20.7W (22W with 100m cable) with 6.49W PoE out; 27.65W with 12.95W PoE out (using AIR-PWR-C or AIR-PWR-D) Note: Values include cable power loss over 100m on both uplink and PoE out port. |
| Input Power Requirements | 44 to 57V DC; Optional power supply/injector: 100 to 240V AC, 49 to 60 Hz |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2; 802.1X, RADIUS authentication, authorization and accounting (AAA); 802.11i |
| Environmental Specifications | Nonoperating temperature: -22 to 158°F (-30 to 70°C); Nonoperating altitude: 25°C, 15,000 ft (4,500 m); Operating temperature: 32 to 104°F (0 to 40°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude: 40°C, 9,843 ft (3,000 m) |
| Bluetooth (Future Availability) | Integrated Bluetooth 4.1 (including BLE); Max transmit power: 5 dBm; Antenna gain: 2 dBi |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1810W-I-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE (AIR-AP1810W-I-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1810W-I-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1810W-I-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-I-K9.
