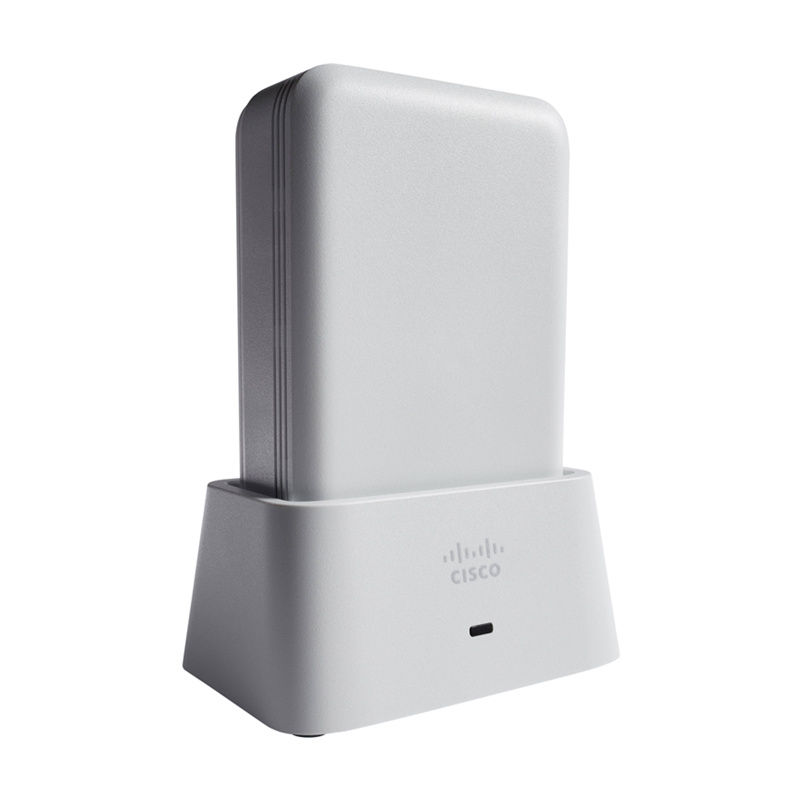

AIR-AP1810W-T-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3xGbE Ports

Brand: Cisco · SKU: AIR-AP1810W-T-K9 · MPN: AIR-AP1810W-T-K9 · Category: Networking

AIR-AP1810W-T-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3xGbE Ports
Request for Quote
In Stock • 10 units

802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, T Regulatory Domain

View Wireless APs Products

Specifications

ModelAIR-AP1810W-T-K9
System512 MB DRAM, 256 MB flash, 1.4 GHz dual-core CPU
MountingIncluded: AIR-AP-BRACKET-W2 (single gang junction box/multi-standard compatible); Optional: AIR-AP1810W-KIT= (spacer kit, for direct wall mount), AIR-OEAP1810-CRD= (cradle kit, for desk mount)
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later
BluetoothIntegrated Bluetooth 4.1 (BLE), max transmit power 5 dBm, antenna gain 2 dBi (future availability)
IndicatorsStatus LED (boot loader status, association status, operating status, warnings, errors), per-port LED for local Ethernet ports, automatic LED privacy mode when joined to controller; LED admin control available
Power Draw12.95W (15.4W with 100m cable) with no PoE out; 20.7W (22W with 100m cable) with 6.49W PoE out; 27.65W with 12.95W PoE out (with AIR-PWR-C or AIR-PWR-D); power draw includes cable losses
AccessoriesMounting bracket (AIR-AP-BRACKET-W2=), spacer kit (AIR-AP1810W-KIT=, incl. spacer & RJ-45 jumper cable), cradle kit (AIR-OEAP1810-CRD=, incl. back cover & RJ-45 cable), physical security kit (AIR-SEC-50= incl. security screws/RJ-45 caps/unlock keys), Cisco local power supply (AIR-PWR-D=); optional, some sold separately
EnvironmentalOperating temperature: 0°C to 40°C (32°F to 104°F), humidity: 10% to 90% (noncondensing), max operating altitude: 3,000 m (9,843 ft); storage temperature: -30°C to 70°C (-22°F to 158°F), max storage altitude: 4,500 m (15,000 ft)
802.11ac Wi-Fi2x2 SU/MU-MIMO, two spatial streams, 20/40/80 MHz channels, MRC, CSD, DFS, up to 866.7 Mbps (80 MHz on 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx)
Ethernet PortsOne 10/100/1000BASE-T PoE uplink port, three 10/100/1000BASE-T local Ethernet ports (including one PoE out), passive pass-through port RJ-45, management console port (RJ-45), DC power connector
Maximum Clients200 per Wi-Fi radio, total 400 per access point
Powering Options802.3af/at Ethernet switch, optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=), optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=)
Physical SecurityTorx security screw (included), Kensington security slot
Integrated Antennas2.4 GHz, gain 2 dBi; 5 GHz, gain 4 dBi
Dimensions (W x L x H)6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm), without mounting bracket
Ethernet Port FeaturesAuthentication with 802.1X or MAC filter, dynamic VLAN or per port, traffic switched locally or tunneled to wireless LAN controller
Input Power Requirements44 to 57V DC; optional power supply and injector: 100-240V AC, 49-60 Hz
Authentication and SecurityWPA2 (AES), 802.1X, RADIUS authentication/authorization/accounting (AAA), 802.11i
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1810W-T-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3xGbE Ports (AIR-AP1810W-T-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1810W-T-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3xGbE Ports includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1810W-T-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3xGbE Ports compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-T-K9.
