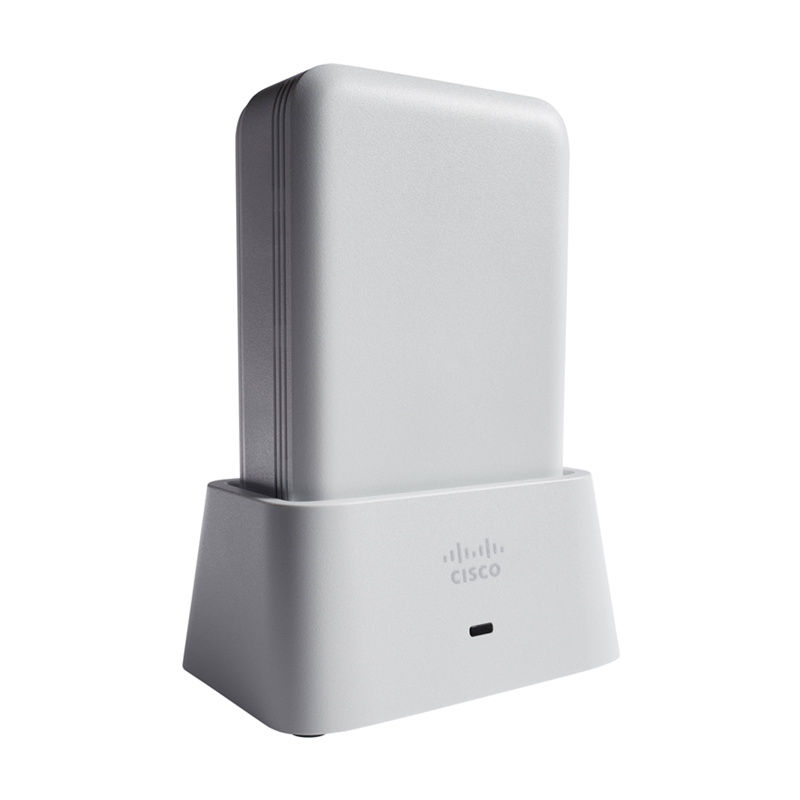

AIR-AP1810W-K-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE
Brand: Cisco · SKU: AIR-AP1810W-K-K9 · MPN: AIR-AP1810W-K-K9 · Category: Networking
802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, K Regulatory Domain
Specifications
| Model | AIR-AP1810W-K-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Indicators | Status LED for bootloader, association, operation, warnings, errors; Per-port status for local Ethernet ports; LEDs are automatically off when access point joins a controller (can be enabled administratively) |
| Power Draw | Max 12.95W (15.4W with 100m cable) without PoE out; 20.7W (22W with 100m cable) with 6.49W PoE out; 27.65W with 12.95W PoE out (using AIR-PWR-C or AIR-PWR-D). Note: Power draw values include loss in 100m cabling uplink and PoE out. |
| Accessories | Mounting bracket: AIR-AP-BRACKET-W2= (spare); Spacer kit: AIR-AP1810W-KIT= (with spacer & RJ-45 jumper, sold separately); Cradle kit: AIR-OEAP1810-CRD= (with back cover & RJ-45 jumper, sold separately); Physical security kit: AIR-SEC-50= (with screws, port caps, unlock keys, sold separately); Cisco local power supply: AIR-PWR-D= (sold separately) |
| Environmental | Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 15,000 ft (4,500 m) at 25°C; Operating temperature: 0°C to 40°C (32°F to 104°F); Operating humidity: 10% to 90% (noncondensing); Operating maximum altitude: 3,000 m (9,843 ft) at 40°C |
| Ethernet Ports | 1 x 10/100/1000BASE-T PoE uplink port; 3 x 10/100/1000BASE-T local Ethernet ports (1 PoE out); 1 passive pass-through RJ-45 port; Management console port (RJ-45); Authentication with 802.1X or MAC filtered; Dynamic VLAN or per port; Traffic locally switched or tunneled back to controller; DC power connector |
| Maximum Clients | 200 per Wi-Fi radio, total 400 clients per access point |
| Mounting Options | Includes AIR-AP-BRACKET-W2 for single gang and most standards; Optional AIR-AP1810W-KIT= (spacer for non-standard wall), AIR-OEAP1810-CRD= (desk cradle) |
| Powering Options | 802.3af/at Ethernet switch, Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=), Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=) |
| 802.11ac Wireless | 2x2 single-user/multiuser MIMO with two spatial streams; Maximal Ratio Combining (MRC); 20, 40, and 80 MHz channels; PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx); Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support |
| Physical Security | Torx security screw (included); Kensington security slot |
| Integrated Antennas | 2.4 GHz, gain 2 dBi; 5 GHz, gain 4 dBi |
| System Memory & CPU | 512 MB DRAM; 256 MB flash; 1.4 GHz dual-core CPU |
| Bluetooth Capability | Integrated Bluetooth 4.1 (including BLE); Max transmit power: 5 dBm; Antenna gain: 2 dBi |
| Dimensions (W x L x H) | 6.5 x 4.5 x 1.6 in (165 x 114 x 41 mm), without mounting bracket |
| Input Power Requirements | 44 to 57V DC; Optional power supply and injector: 100 to 240V AC, 49 to 60 Hz |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication, authorization and accounting (AAA), 802.11i |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1810W-K-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE (AIR-AP1810W-K-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1810W-K-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1810W-K-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-K-K9.
