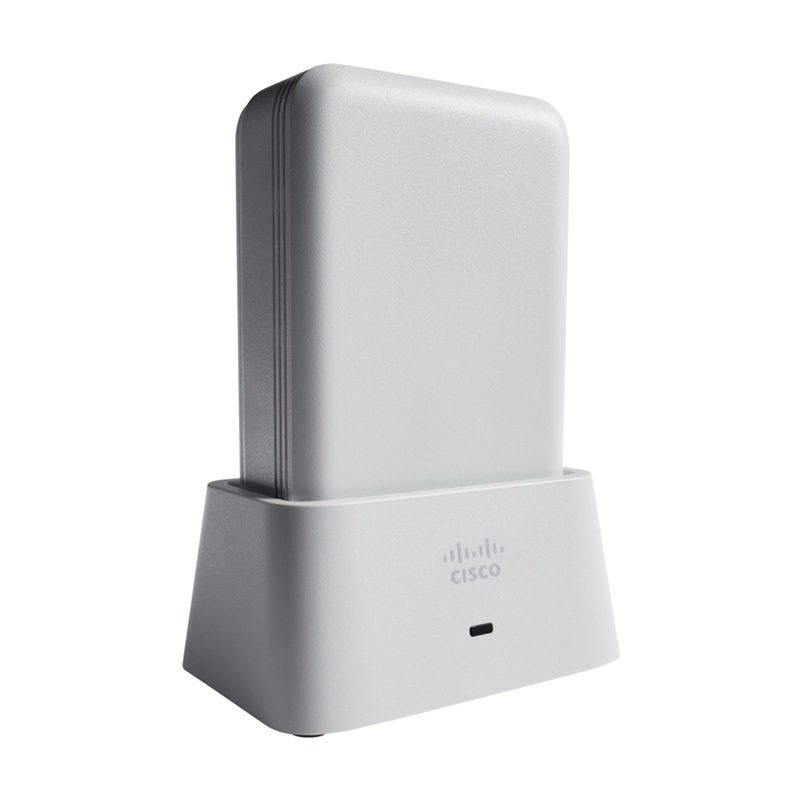

AIR-AP1810W-S-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3x GbE
Brand: Cisco · SKU: AIR-AP1810W-S-K9 · MPN: AIR-AP1810W-S-K9 · Category: Networking
802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, S Regulatory Domain
Specifications
| Model | AIR-AP1810W-S-K9 |
|---|---|
| System | 512 MB DRAM, 256 MB flash, 1.4 GHz dual-core CPU |
| Mounting | Mounting bracket AIR-AP-BRACKET-W2 included, fits single gang junction box or multiple international standards Optional: AIR-AP1810W-KIT= spacer kit (wall mounting, no junction box); AIR-OEAP1810-CRD= cradle kit (desk mounting) |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Bluetooth | Integrated Bluetooth 4.1 (including BLE), max transmit power 5 dBm, antenna gain 2 dBi |
| Indicators | Status LED shows boot loader status, association, operating and error status; per-port status for local Ether ports; LEDs auto-off after joining controller (can be enabled in configuration) |
| Interfaces | One 10/100/1000BASE-T PoE uplink port, management console port (RJ-45), three local Ethernet ports (one with PoE out), one passive pass-through RJ-45 port, DC power connector PoE out: 802.3af (AP powered by AIR-PWR-C= or AIR-PWR-D=), ~6.5W (powered by 802.3at), or no output (powered by 802.3af) |
| Power Draw | Max 12.95W (15.4W with 100m cable) no PoE out; 20.7W (22W with 100m cable) with 6.49W PoE out; 27.65W with 12.95W PoE out using AIR-PWR-C or AIR-PWR-D Note: Values include power loss in uplink and PoE out cabling |
| Accessories | Mounting bracket: AIR-AP-BRACKET-W2= (spare); spacer kit: AIR-AP1810W-KIT= (with RJ-45 jumper cable); cradle kit: AIR-OEAP1810-CRD= (with back cover & RJ-45 jumper cable); security kit: AIR-SEC-50= (security screws, RJ-45 caps, unlock keys); Cisco power supply: AIR-PWR-D= (sold separately) |
| Environmental | Storage temperature: -30°C to 70°C (-22°F to 158°F); storage max altitude: 25°C, 4,500 m (15,000 ft); operating temperature: 0°C to 40°C (32°F to 104°F); operating humidity: 10% to 90% (noncondensing); max operating altitude: 40°C, 3,000 m (9843 ft) |
| Ethernet Ports | 1 x 10/100/1000BASE-T PoE uplink port; 3 x 10/100/1000BASE-T local Ethernet ports (one with PoE out); authentication with 802.1X or MAC filter, dynamic VLAN, local or tunneled traffic |
| Maximum Clients | 200 clients per Wi-Fi radio, total 400 clients per access point |
| Powering Options | 802.3af/at Ethernet switch, Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=), Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=) |
| 802.11ac Features | 2x2 SU/MU-MIMO, 2 spatial streams, maximal ratio combining (MRC), 20/40/80 MHz channels, up to 866.7 Mbps (80 MHz at 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), DFS, cyclic shift diversity |
| Physical Security | Torx security screw (included), Kensington security slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 4 dBi gain |
| Dimensions (W x L x H) | 6.5 x 4.5 x 1.6 in (165 x 114 x 41 mm), access point only (no mounting bracket) |
| Input Power Requirements | 44–57V DC; optional power supply/power injector: 100–240V AC, 49–60 Hz |
| Authentication and Security | AES for WPA2, 802.1X and RADIUS authentication, authorization, and accounting (AAA); 802.11i |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1810W-S-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3x GbE (AIR-AP1810W-S-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1810W-S-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3x GbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1810W-S-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave2/2x2:2 MIMO/3x GbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-S-K9.
