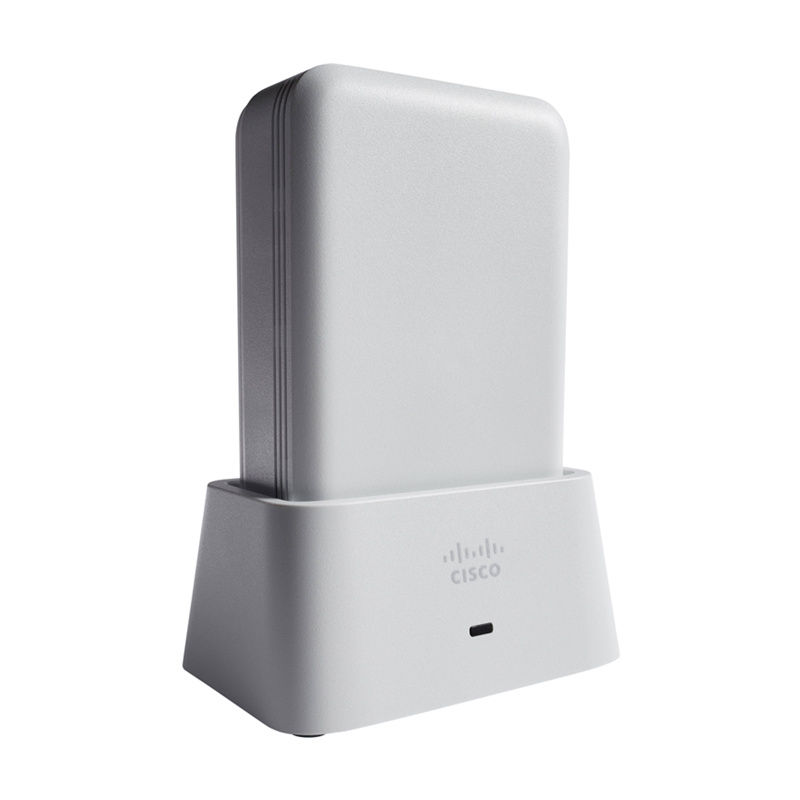

AIR-AP1810W-Z-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE Ports
Brand: Cisco · SKU: AIR-AP1810W-Z-K9 · MPN: AIR-AP1810W-Z-K9 · Category: Networking
802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, Z Regulatory Domain
Specifications
| Model | AIR-AP1810W-Z-K9 |
|---|---|
| System | 512 MB DRAM; 256 MB flash; 1.4 GHz dual-core CPU |
| 802.11ac | 2x2 SU/MU-MIMO; two spatial streams; maximal ratio combining (MRC); 20, 40, 80 MHz channels; PHY data rates up to 866.7 Mbps (80 MHz at 5 GHz); packet aggregation (A-MPDU Tx/Rx, A-MSDU Rx); 802.11 DFS; cyclic shift diversity (CSD) support |
| Mounting | Mounting bracket AIR-AP-BRACKET-W2 included; compatible with single gang junction box and multiple international standards. Optional: AIR-AP1810W-KIT= spacer kit for direct wall mounting; AIR-OEAP1810-CRD= cradle kit for desk mounting |
| Software | Cisco Unified Wireless Network Software with AireOS Controllers Release 8.2.111.0 or later |
| Bluetooth | Integrated Bluetooth 4.1 (including BLE); max transmit power: 5 dBm; antenna gain: 2 dBi |
| Indicators | Status LED for boot loader, association, operation, warnings, errors; per-port status; LEDs turn off when joined to controller; can be enabled in configuration |
| Interfaces | 1x 10/100/1000BASE-T PoE uplink port; management console port (RJ-45); 3x 10/100/1000BASE-T local Ethernet ports (including 1 PoE out port): - PoE out: 802.3af when powered by Cisco local supply (AIR-PWR-C=, AIR-PWR-D=); ~6.5 W output when powered by 802.3at; no output when powered by 802.3af 1 passive pass-through port RJ-45; DC power connector |
| Power Draw | Max: 12.95 W (15.4 W with 100 m of cable) without PoE out; 20.7 W (22 W with 100 m cable) with 6.49 W PoE out; 27.65 W with 12.95 W PoE out (when powered via AIR-PWR-C or AIR-PWR-D); Note: Power values include loss in 100 m cabling (uplink and PoE out port) |
| Accessories | Mounting bracket (spare): AIR-AP-BRACKET-W2= Spacer kit: AIR-AP1810W-KIT= (with spacer & RJ-45 jumper) Cradle kit: AIR-OEAP1810-CRD= (with back cover & RJ-45 jumper) Physical security kit: AIR-SEC-50= (50 security screws, 50 RJ-45 caps, 2 unlock keys) Cisco local power supply: AIR-PWR-D= |
| Environmental | Storage temperature: -30°C to 70°C (-22°F to 158°F); storage altitude: 25°C, 4,500 m (15,000 ft); operating temperature: 0°C to 40°C (32°F to 104°F); operating humidity: 10% to 90% noncondensing; operating altitude: 40°C, 3,000 m (9,843 ft) |
| Ethernet Ports | Authentication with 802.1X or MAC filter; dynamic VLAN or per port; traffic locally switched or tunneled to wireless LAN controller |
| Maximum Clients | 200 wireless clients per Wi-Fi radio; up to 400 clients per access point |
| Powering Options | 802.3af/at Ethernet switch; optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=); optional Cisco local supply (AIR-PWR-C=, AIR-PWR-D=) |
| Physical Security | Torx security screw (included); Kensington security slot |
| Integrated Antennas | 2.4 GHz: 2 dBi gain; 5 GHz: 4 dBi gain |
| Dimensions (W x L x H) | 6.5 x 4.5 x 1.6 in (165 x 114 x 41 mm) excluding mounting bracket |
| Input Power Requirements | 44 – 57 V DC; optional power supply and injector: 100 – 240 V AC, 49 – 60 Hz |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2; 802.1X; RADIUS authentication, authorization and accounting (AAA); 802.11i |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1810W-Z-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE Ports (AIR-AP1810W-Z-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1810W-Z-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE Ports includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1810W-Z-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE Ports compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-Z-K9.
