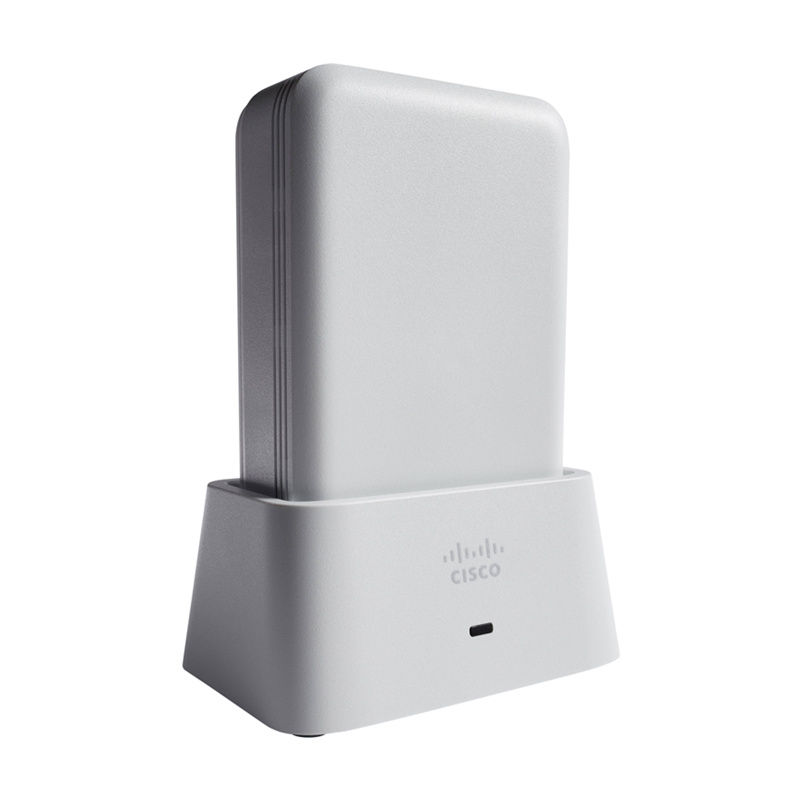

AIR-AP1810W-H-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE
Brand: Cisco · SKU: AIR-AP1810W-H-K9 · MPN: AIR-AP1810W-H-K9 · Category: Networking
802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, H Regulatory Domain
Specifications
| Model | AIR-AP1810W-H-K9 |
|---|---|
| Bluetooth | Integrated Bluetooth 4.1 (including BLE), maximum transmit power 5 dBm, antenna gain 2 dBi |
| Indicators | Status LED (boot loader, association, operation, warnings, errors), per-port status LEDs for Ethernet, LEDs can be disabled automatically for privacy upon controller join |
| Interfaces | One 10/100/1000BASE-T PoE uplink, management console port (RJ-45), three 10/100/1000BASE-T ports (including one PoE out), one passive pass-through port RJ-45, DC power connector |
| Power Draw | Maximum: 12.95W (15.4W with 100m cable, no PoE out); 20.7W (22W with 100m cable, 6.49W PoE out); 27.65W (12.95W PoE out, powered by AIR-PWR-C/D) |
| Accessories | Mounting bracket AIR-AP-BRACKET-W2= (spare); Spacer kit AIR-AP1810W-KIT= (includes spacer and RJ-45 jumper cable); Cradle kit AIR-OEAP1810-CRD= (includes back cover and RJ-45 jumper cable); Physical security kit AIR-SEC-50= (50 security screws, 50 RJ-45 caps, 2 unlock keys); Cisco local power supply AIR-PWR-D= |
| Ethernet Ports | One 10/100/1000BASE-T PoE uplink, three 10/100/1000BASE-T local Ethernet ports (one PoE out), one passive pass-through port RJ-45, all with 802.1X or MAC-based authentication, dynamic VLAN or per port, locally switched or tunneled traffic |
| Other Features | Status LED, support for local or controller-based management, automatic LED disable for privacy |
| Maximum Clients | 200 per Wi-Fi radio, total 400 per access point |
| Mounting Options | Includes mounting bracket AIR-AP-BRACKET-W2 for single gang or multi-national junction boxes; Optional spacer kit for non-standard walls (AIR-AP1810W-KIT=); Optional cradle kit for desk mounting (AIR-OEAP1810-CRD=) |
| Powering Options | 802.3af/at Ethernet switch, optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=), optional Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=) |
| System Resources | 512 MB DRAM, 256 MB flash, 1.4 GHz dual-core CPU |
| 802.11ac Wireless | 2x2 SU/MU-MIMO, 2 spatial streams, Maximal Ratio Combining (MRC), channels: 20/40/80 MHz, up to 866.7 Mbps (80 MHz, 5 GHz), A-MPDU (Tx/Rx), A-MSDU (Rx), DFS, Cyclic Shift Diversity (CSD) |
| Physical Security | Torx security screw included, Kensington security slot |
| PoE Out Capability | 802.3af PoE out when using Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), ~6.5W out when using 802.3at, no PoE out if powered by 802.3af only |
| Integrated Antennas | 2.4 GHz: 2 dBi gain, 5 GHz: 4 dBi gain |
| Dimensions (W x L x H) | 6.5 x 4.5 x 1.6 in (165 x 114 x 41 mm), without mounting bracket |
| Software Compatibility | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Input Power Requirements | 44–57V DC; optional power supply and injector: 100–240V AC, 49–60 Hz |
| Authentication and Security | WPA2 with Advanced Encryption Standard (AES), 802.1X, RADIUS authentication, authorization, accounting (AAA), 802.11i |
| Environmental Specifications | Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: up to 4,500 m (15,000 ft) at 25°C; Operating temperature: 0°C to 40°C (32°F to 104°F); Operating humidity: 10% to 90% (noncondensing); Operating altitude: up to 3,000 m (9,843 ft) at 40°C |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1810W-H-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE (AIR-AP1810W-H-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1810W-H-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1810W-H-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3 GbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-H-K9.
