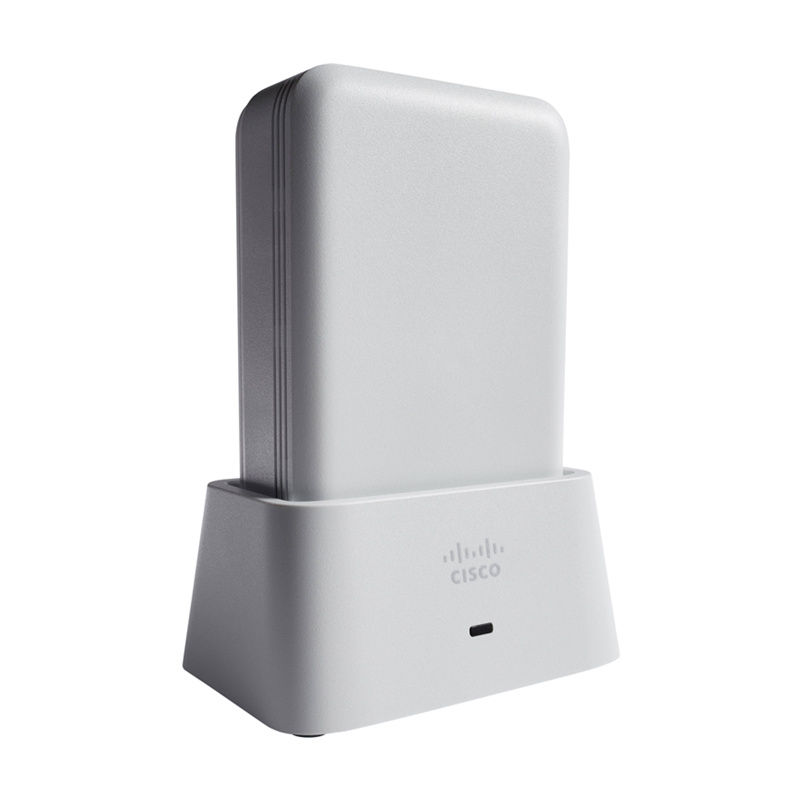

AIR-AP1810W-F-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE
Brand: Cisco · SKU: AIR-AP1810W-F-K9 · MPN: AIR-AP1810W-F-K9 · Category: Networking
Request for Quote
In Stock • 10 units
802.11ac Wave 2 Access Point, 2x2:2, 3 GbE, F Regulatory Domain
Specifications
| Model | AIR-AP1810W-F-K9 |
|---|---|
| System | 512 MB DRAM, 256 MB flash, 1.4 GHz system dual-core CPU |
| Weight | 1.2 lb (560 g) |
| 802.11ac | 2x2 SU/MU MIMO with two spatial streams, MRC, 20/40/80-MHz channels, PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz), packet aggregation (A-MPDU, A-MSDU), DFS, CSD support |
| Mounting | Included with access point: mounting bracket AIR-AP-BRACKET-W2, compatible to install to single gang junction box or multiple international standards, optional: AIR-AP1810W-KIT=, spacer kit to mount access point directly on wall where standard junction boxes are not available, AIR-OEAP1810-CRD=, cradle kit to mount access point on desk |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Bluetooth | Integrated Bluetooth 4.1 (including BLE) radio, max transmit power 5 dBm, antenna gain 2 dBi |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors, per-port status for local Ethernet ports, privacy LEDs automatically turned off when access point joins a controller, LEDs may be enabled administratively |
| Interfaces | One 10/100/1000BASE-T PoE uplink port, management console port (RJ-45), three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af, one passive pass-through port RJ-45 (back to bottom), DC power connector |
| Power Draw | Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D) |
| Accessories | Mounting bracket: AIR-AP-BRACKET-W2= (available as spare), spacer kit: AIR-AP1810W-KIT= (sold separately), includes spacer and RJ-45 jumper cable, cradle kit: AIR-OEAP1810-CRD= (sold separately), includes back cover and RJ-45 jumper cable, physical security kit: AIR-SEC-50= (sold separately), with 50 security screws to secure access point to wall-mounting bracket, 50 RJ-45 caps, and 2 unlock keys to block physical access to Ethernet ports, Cisco local power supply: AIR-PWR-D= (sold separately) |
| Environmental | Nonoperating (storage) temperature: -22°F to 158°F (-30°C to 70°C), nonoperating (storage) max altitude: 25°C, 15,000 ft (4,500 m), operating temperature: 32°F to 104°F (0°C to 40°C), operating humidity: 10% to 90% (noncondensing), operating maximum altitude: 40°C, 9,843 ft (3,000 m) |
| Ethernet Ports | Authentication with 802.1X or MAC filtered, dynamic VLAN or per port, traffic locally switched or tunneled back to wireless LAN controller |
| Maximum Clients | 200 per Wi-Fi radio, total 400 clients per access point |
| Powering Options | 802.3af/at Ethernet switch, optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=), optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=) |
| Physical Security | Torx security screw, included with access point, Kensington security slot |
| Integrated Antennas | 2.4 GHz: gain 2 dBi, 5 GHz: gain 4 dBi |
| Dimensions (W x L x H) | 6.5 x 4.5 x 1.6 in. (165 x 114 x 41 mm) |
| Input Power Requirements | 44 to 57V DC, optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz |
| Authentication and Security | Advanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS AAA, 802.11i |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1810W-F-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE (AIR-AP1810W-F-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1810W-F-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1810W-F-K9, Cisco AIR-AP1810W Series Access Point, 802.11ac Wave 2/2x2:2 MIMO/3x GbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1810W-F-K9.
