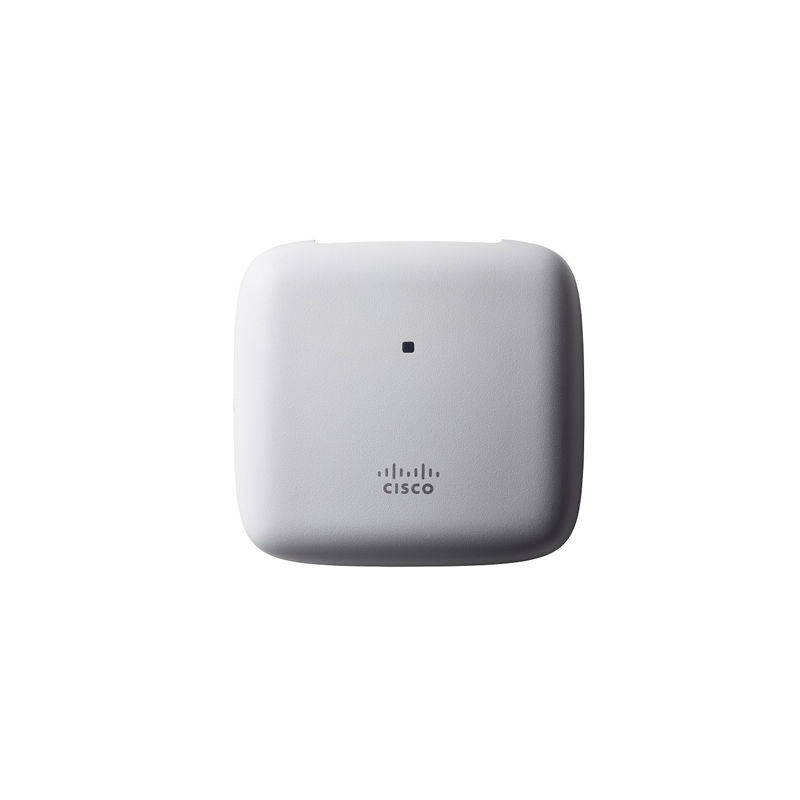

AIR-AP1815I-B-K9C, Cisco Aironet 1815i Access Point, 2x2 MIMO/867 Mbps/802.11ac

Brand: Cisco · SKU: AIR-AP1815I-B-K9C · MPN: AIR-AP1815I-B-K9C · Category: Networking

AIR-AP1815I-B-K9C, Cisco Aironet 1815i Access Point, 2x2 MIMO/867 Mbps/802.11ac
Request for Quote
In Stock • 10 units

Cisco Aironet Mobility Express 1815i Series, Reg Domain B

View Wireless APs Products

Specifications

ModelAIR-AP1815I-B-K9C
System1 GB DRAM, 256 MB flash, 710 MHz quad core CPU
MountingMounting bracket AIR-AP-BRACKET8 (included)
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later, Cisco Mobility Express
BluetoothIntegrated Bluetooth 4.1 (BLE), max transmit power: 4 dBm, antenna gain: 2 dBi
ComplianceSafety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1 Radio: FCC Part 15.247/15.407, RSS-247 (Canada), EN 300.328/301.893/301.489-1/-17/50385 (Europe), ARIB-STD 66/T71 (Japan), VCCI (Japan), ICES-003 (Canada), EMI Class B IEEE: 802.11a/b/g, 802.11n, 802.11ac, 802.11h, 802.11d Security: 802.11i, WPA2, WPA, 802.1X, AES EAP Types: TLS, TTLS/MSCHAPv2, PEAP v0/EAP-MSCHAPv2, EAP-FAST, PEAP v1/EAP-GTC, EAP-SIM Multimedia: Wi-Fi Multimedia (WMM) Other: FCC Bulletin OET-65C, RSS-102
IndicatorsStatus LED for boot loader status, association, operation, warnings, and errors
Interfaces1 x 10/100/1000BASE-T (RJ-45, PoE support), 1 x RJ-45 management console port
Power Draw8.3 W (maximum, on PoE)
AccessoriesMounting bracket AIR-AP-BRACKET8= (spare), Physical security kit AIR-SEC-50= (sold separately, 50 security screws, 50 RJ-45 caps, 2 unlock keys)
EnvironmentalOperating: 0°C to 40°C (32°F to 104°F), humidity 10%–90% noncondensing, max altitude 3,000 m Storage: -30°C to 70°C (-22°F to 158°F), humidity 10%–90% noncondensing, max altitude 4,500 m (25°C)
Ethernet PortsAuthentication with 802.1X or MAC filter, dynamic VLAN per port, traffic switched locally or tunneled to controller
Maximum Clients200 per Wi-Fi radio, up to 400 per access point
Powering Options802.3af/at Ethernet switch or optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
802.11ac Features2x2 MIMO (single/multiuser), 2 spatial streams, MRC, cyclic shift diversity, 20/40/80 MHz channels, DFS, PHY rates up to 866.7 Mbps (80 MHz @ 5 GHz), packet aggregation A-MPDU (Tx/Rx), A-MSDU (Rx)
Physical SecurityTorx security screw (included with access point)
Integrated Antennas2.4 GHz: 2 dBi gain, 5 GHz: 4 dBi gain
Data Rates Supported802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps 802.11n on 2.4 GHz: MCS0-15, up to 144.4 Mbps (20 MHz, short guard interval) 802.11ac on 5 GHz: MCS0-9, up to 866.7 Mbps (2 spatial streams, 80 MHz, short guard interval)
Dimensions (W x L x H)6 x 6 x 1.3 in (150.8 x 150.8 x 33 mm) (without mounting bracket)
Input Power RequirementsPower injector: AIR-PWRINJ5= or AIR-PWRINJ6=
Non-Overlapping ChannelsRegulatory domain specific: - 2.4 GHz: up to 13 channels - 5 GHz: up to 12 channels (region dependent) Note: See documentation for regional details.
Supported WLAN ControllersCisco 2500/3500/5500/Flex 7500/8500/9800 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500 Series Switches, Cisco Mobility Express
Authentication and SecurityAdvanced Encryption Standard (AES) for WPA2, 802.1X, RADIUS authentication/authorization/accounting (AAA), 802.11r, 802.11i
Available Transmit Power Settings2.4 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm 5 GHz: 20, 17, 14, 11, 8, 5, 2, -1 dBm Note: Maximum varies by channel and country.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1815I-B-K9C, Cisco Aironet 1815i Access Point, 2x2 MIMO/867 Mbps/802.11ac (AIR-AP1815I-B-K9C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1815I-B-K9C, Cisco Aironet 1815i Access Point, 2x2 MIMO/867 Mbps/802.11ac includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1815I-B-K9C, Cisco Aironet 1815i Access Point, 2x2 MIMO/867 Mbps/802.11ac compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815I-B-K9C.
