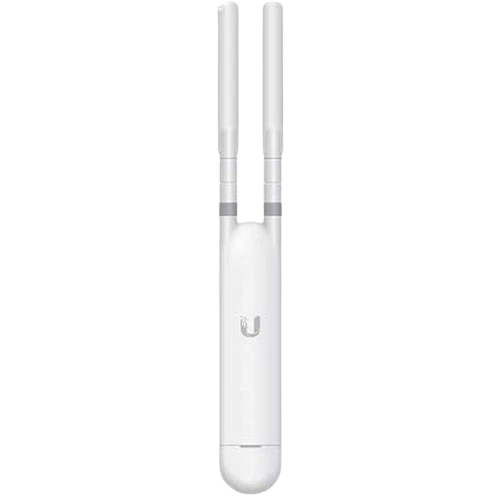

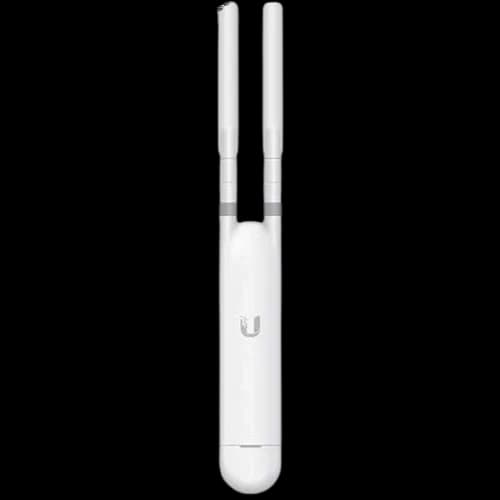

UAP-AC-M is a robust dual-band WiFi access point powered by Ubiquiti’s UniFi series. It features detachable antennas, dual-radio WiFi 5 with 4 spatial streams, and external dual-band omnidirectional antennas. With a modern weather-resistant enclosure, it is best suited for flexible wireless networking in both indoor and outdoor environments.
Plus, through 2x2 MIMO (Multiple-input Multiple-output) technology and Dual-Band AC1200, it simultaneously supports 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) Wi-Fi. Moreover, UAP-AC-M has a wall and pole mount, ensuring efficient signal coverage and high performance. GbE PoE in the RJ45 port in this WiFi access point allows a single Ethernet cable to transmit both data and electrical power to the device.
High-performance: Dual-Band AC1200 supports simultaneous 2.4 GHz (300 Mbps) and 5 GHz (867 Mbps) Wi-Fi.
Mesh capability: Wireless mesh technology allows smooth integration with existing UniFi networks for coverage expansion.
Mounting: The UAP-AC-M has multiple mounting options, like wall and pole mounting, which ensure excellent signal coverage.
PoE Support: GbE PoE in the RJ45 port allows a single Ethernet cable to transmit both data and electrical power to the device.
Outdoor design: Weather-resistant design makes it suitable for field deployments in a range of environments.
UniFi Network Controller: It is managed centrally via the UniFi Network Controller for flexible network administration.
Networking interface
GbE RJ45 port
Power method
Passive PoE 2-pair (4, 5+; 7, 8- return)
Power supply
24V DC, 0.5A gigabit PoE adapter
Max. power consumption
7W
RF connections
Internal
LEDs
Power/Ethernet
Certifications
FCC, IC, CE
Modes
PtMP, PtP
Services
SNMP, SSH, dynamic DNS, computer servers, remote log, ping watchdog
Utilities
airView®, speed test, alignment, discovery, ping, traceroute, constellation
Management interface
Dedicated management radio for quick device setup via the UISP™ Mobile app
WEB UI
Minimum software requirements
Modern Web browser or Android/iOS smartphone
Dimensions
747 x 525 x 347 mm (29.4 x 20.7 x 13.7")
Weight
3.2 kg (7.1 lb)
Enclosure material
Aluminum alloy, UV-stabilized polycarbonate
Mount material
Integrated pole mount (included)
Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36")
Wind loading
1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing
IPX6
Operating frequency
5.15 to 5.85 GHz
Max. conducted TX power
25 dBm
Management radio
2400-2483.5 MHz
Channel bandwidth
10/20/30/40/50/60/80 MHz
Antenna Gain
29 dBi
Isolation
20 dB
Beamwidth
HPOL: 3 dB: 5.5°, 6 dB: 7.5°
VPOL: 3 dB: 5.5°, 6 dB: 7.5°
Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt
NDAA Compliant
Yes
Compatible with all Wi-Fi-certified devices (laptops, phones, tablets, IoT devices) supporting 2.4 GHz or 5 GHz bands, UniFi Network Controller, and other UniFi Mesh devices (e.g., UAP-AC-M-Pro, BeaconHD).
The UAP-AC-M is a versatile, affordable access point for excellent WiFi coverage in a wide range of environments. Equipped with dual-band WiFi and 2x2 MIMO technology, it ensures fast and stable wireless connectivity and improves performance while transmitting and receiving signals. Wireless mesh technology allows easy integration with existing UniFi networks for seamless coverage expansion. So, it is a dependable choice for homes, businesses, and campuses requiring reliability, a scalable wireless setup, and solid performance.
