Key Features:

• 24-port SAS/SATA connectivity

• 6 Gb/s data transfer rate

• Supports both SAS and SATA devices

• Suitable for various storage environments

• PCIe x4 interface (power only, no data transmission)

• Low-profile design for space-constrained environments

• Plug-and-play integration with Intel RAID and LSI SAS-based controllers

• High performance and scalability

• Compatibility: Compatible with Intel SAS-2 RAID controllers, integrated RAID modules, 2.5-inch and 3.5-inch SAS or SATA drives, and drives of mixed capacity

Specifications:

• Interface: PCI Express x4 (Gen 2.0)

• Data Transfer Rate: Up to 6 Gb/s per port

• Ports:

  • 24 internal ports

  • Each port supports four devices via SFF-8087 Mini-SAS connectors.

• Supported Devices:

  • SAS and SATA hard drives

  • Non-disk devices, including expanders

• Firmware:

  • 8 MB in an updatable flash ROM

• Enclosure Management:

  • Serial General Purpose Input/Output (SGPIO)

• Operating Voltage: +3.3 V

• Form Factor: Low Profile MD2 (6.6” depth)

• Mounting Options:

  • Mountable in a low-profile

  • Can be attached to chassis walls or air ducts

• Power Options:

  • Powered through a PCIe slot

  • Alternatively, powered via a 4-pin power connector

• Ideal For:

  • Data Centers

  • Enterprise storage solutions

  • High-capacity backup and archiving systems

  • Storage server expansion

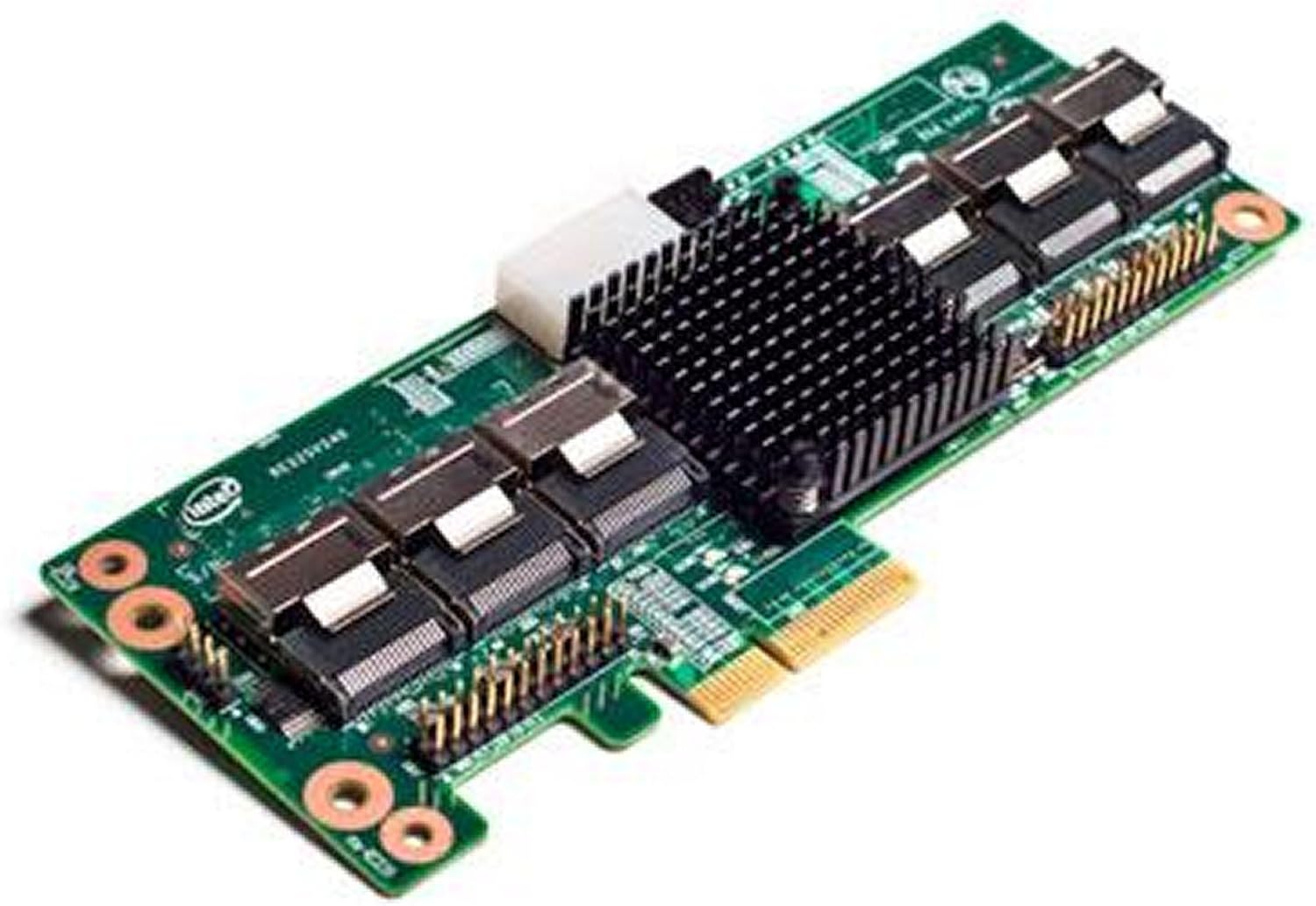

If you need a cost-effective storage solution, the Intel RES2SV240 RAID Card is ideal for providing scalability for various storage configurations. Server Tech Central provides high-quality storage devices to satisfy business requirements. We deliver devices of excellent quality, providing scalability and performance.
