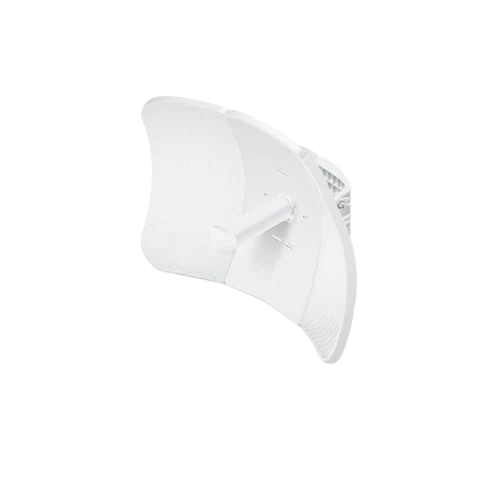

The airMax LiteBeam 5AC Extreme-Range is a high-performance, ultra-lightweight wireless CPE (Customer Premises Equipment) designed for creating long-distance point-to-point (PtP) and point-to-midpoint (PtMP) links. With a robust 29 dBi antenna gain and support for GHz frequencies, it delivers reliable connectivity over distances exceeding 30km.
This device features a dedicated management radio for seamless setup via the USIP mobile app, ensuring efficient deployment and monitoring.
Long-Range Connectivity: Achieves distances over 30 km with a 29 dBi antenna.
High Throughput: Delivers speeds exceeding 450 Mbps.
Durable Build: Constructed with aluminum alloy and UV-stabilized polycarbonate for enhanced durability.
Weatherproof Design: IPX6-rated enclosure ensures protection against harsh weather conditions.
Integrated Mounting: Comes with an integrated pole mount compatible with poles ranging from Ø35 to 60 mm.
Efficient Power Consumption: Operates with a maximum power consumption of 7W
Compatibility: Compatible with airMAX AC devices.
Dimensions: 747 x 525 x 347 mm (29.4 x 20.7 x 13.7")
Weight: 3.2 kg (7.1 lb)
Enclosure material: Aluminum alloy, UV-stabilized polycarbonate
Mount material: UV-stabilized polycarbonate
Mounting: Integrated pole mount (included)
Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36")
Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing: IPX6
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8- return)
Power supply: 24V DC, 0.5A gigabit PoE adapter (Included)
Supported voltage range: 22—27V DC
Max power consumption: 7W
RF connections: Internal
LEDs Power/Ethernet
Button: Factory reset
Ambient operating temperature: -40 to 70° C (-40 to 158° F)
Ambient operating humidity: 5 to 95% non-condensing
Certifications: FCC, IC, CE
Maximum throughput: 450+ Mbps
Encryption: WPA2-PSK (AES)
Modes: PtMP, PtP
Services: SNMP, SSH, dynamic DNS, web server, remote log, ping watchdog
Utilities: airView®, speed test, alignment, discovery, ping, traceroute, constellation
Management interface: Dedicated management radio for quick device setup via the UISP™ Mobile app
Minimum software requirements: A Modern Web browser or an Android/iOS smartphone
Operating frequency: 5.15 to 5.85 GHz, depending on the regulatory region.
Max. conducted TX power: 25 dBm
Management radio: 2400 - 2483.5 MHz
Channel bandwidth: 10/20/30/40/50/60/80 MHz
Antenna Gain: 29 dBi
Isolation: 20 dB
Beamwidth HPOL: 3 dB: 5.5°, 6 dB: 7.5°
VPOL: 3 dB: 5.5°, 6 dB: 7.5°
Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt: 0°
NDAA Compliant Yes
AirMax LiteBeam 5AC Extreme-range is a high-performance, ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
