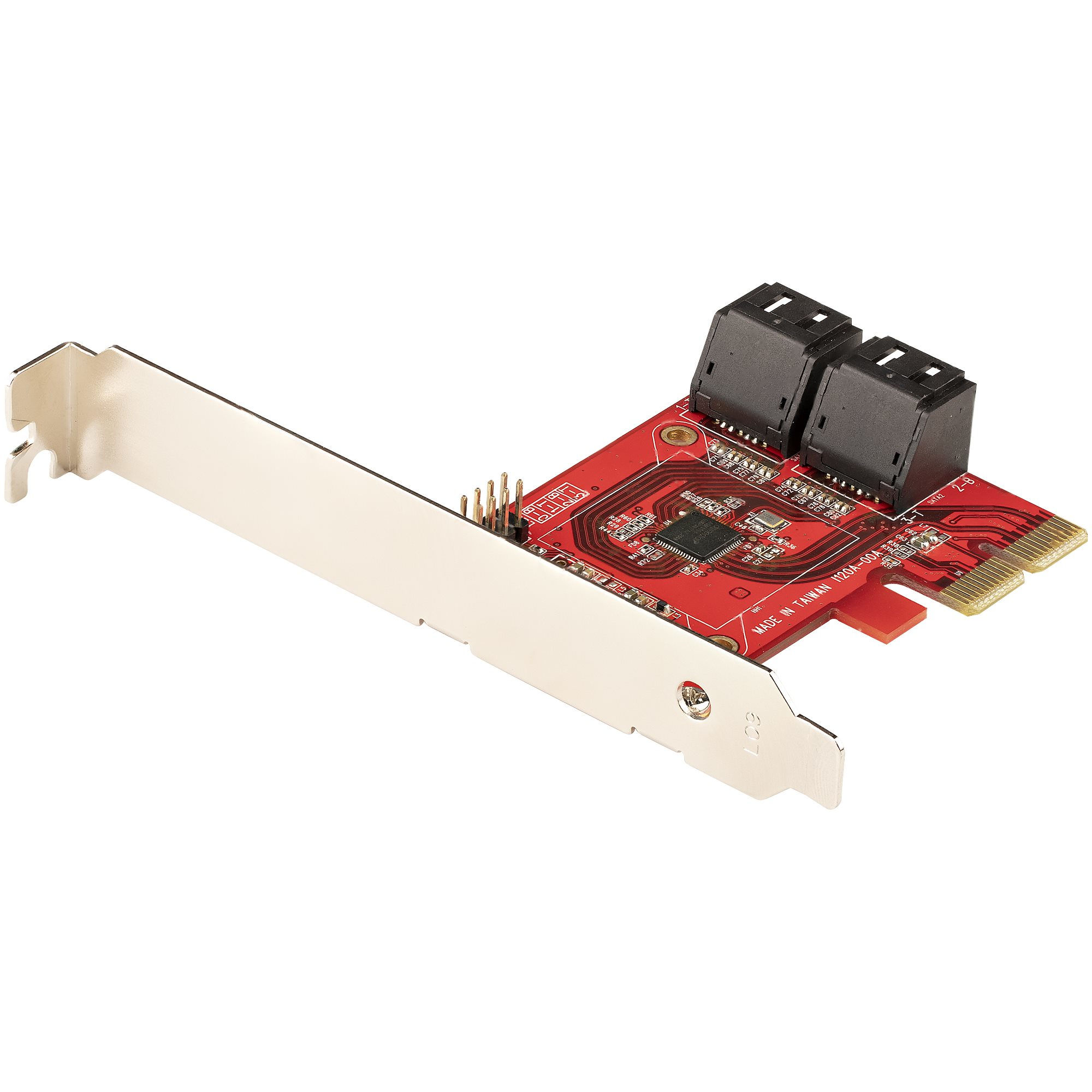

StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter
Brand: StarTech.com · SKU: STA-4P6G-PCIE-SATA-CARD · MPN: SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter · Category: Components
StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter, PCIe, SATA, PCIe 3.0, Red, ASMedia - ASM1164, 6 Gbit/s
Specifications
| Depth | 70 mm |
|---|---|
| Width | 56 mm |
| Height | 16 mm |
| Weight | 75 g |
| Chipset | ASMedia - ASM1164 |
| Internal | Yes |
| TRIM support | Yes |
| Package depth | 170 mm |
| Package width | 142 mm |
| SATA revision | 3.0 |
| Host interface | PCIe |
| Package height | 30 mm |
| Package weight | 115 g |
| Product colour | Red |
| Port multiplier | Yes |
| Output interface | SATA |
| S.M.A.R.T. support | Yes |
| Compliance certificates | CE, RoHS |
| Expansion card standard | PCIe 3.0 |
| Data transfer rate (max) | 6 Gbit/s |
| Quick installation guide | Yes |
| Master (outer) case width | 365 mm |
| Storage temperature (T-T) | -25 - 85 °C |
| Master (outer) case height | 510 mm |
| Warranty | 3-Year Warranty |
| Weight | 75 g |
| Dimensions | 56 mm x 70 mm x 16 mm |
Product Description
SATA III (6Gbps) | PCI Express 3.0 | PCIe x2 Slot | 4x SATA Connectors | 2-Year Warranty This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications. ASM1164 to Deliver 4-Port SATA 6Gbps Performance Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately). Wide Compatibility The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance. Hassle-Free Installation The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building. 4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support. The StarTech.com Advantage
Key Features
StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter. Host interface: PCIe, Output interface: SATA, Expansion card standard: PCIe 3.0. Product colour: Red. Chipset: ASMedia - ASM1164, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. Width: 56 mm, Depth: 70 mm, Height: 16 mm
Technical Deployment Advisory
Target Personnel
IT Procurement Officers
Infrastructure Fit
Mission-Critical Parts Replacement
"For Mission-Critical Parts Replacement, using verified parts like the STA-4P6G-PCIE-SATA-CARD prevents downtime and maintains the service integrity expected by IT Procurement Officers."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter (STA-4P6G-PCIE-SATA-CARD) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-4P6G-PCIE-SATA-CARD.
