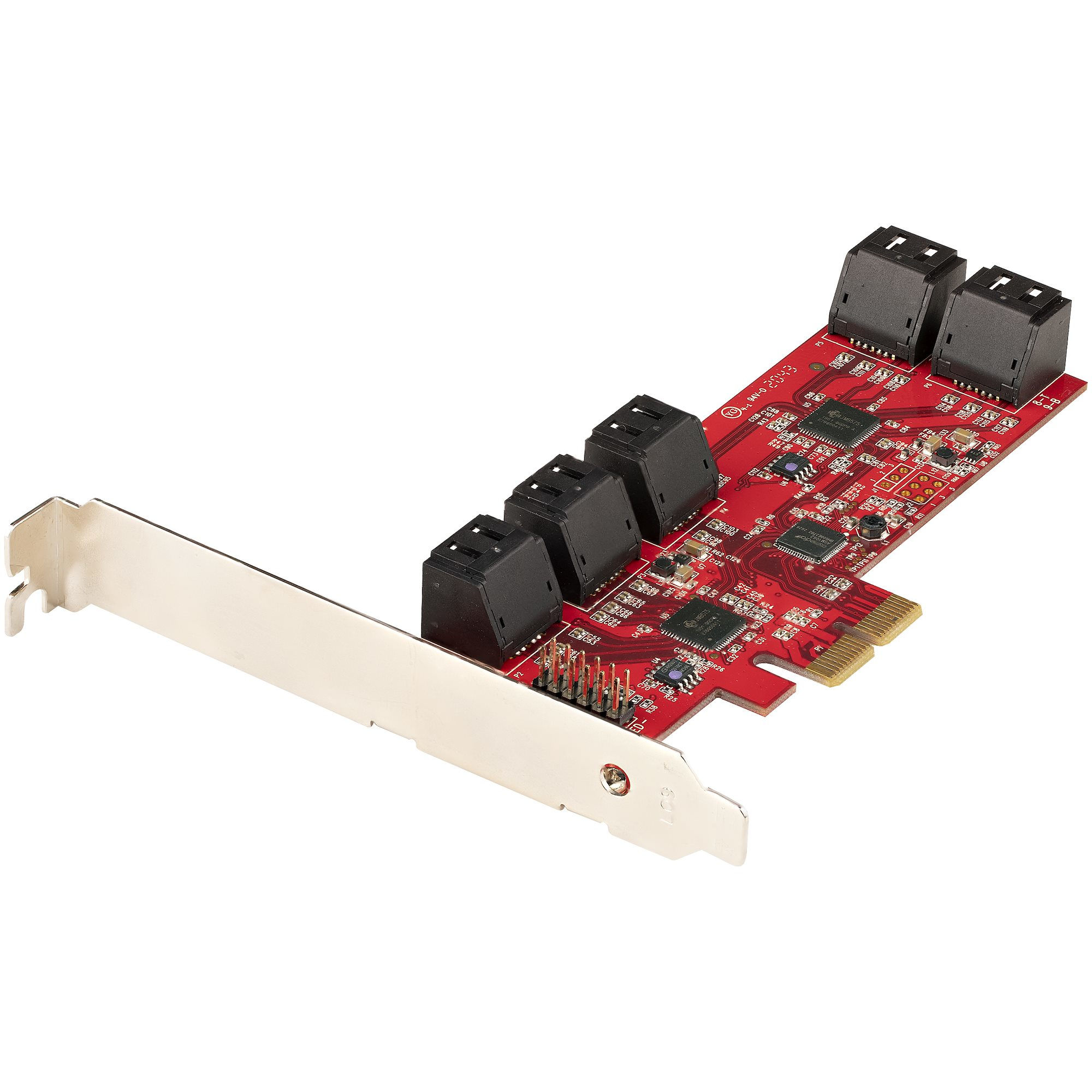

StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter

Brand: StarTech.com · SKU: STA-10P6G-PCIE-SATA-CARD · MPN: SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter · Category: Components

StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter
$269.97
In Stock • 10 units

StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter, PCIe, SATA, PCIe 2.0, Red, ASMedia - ASM1062, 6 Gbit/s

View Components Products

Specifications

Depth139 mm
Width54 mm
Height16 mm
Weight75 g
ChipsetASMedia - ASM1062
InternalYes
TRIM supportYes
Package depth175 mm
Package width142 mm
Host interfacePCIe
Package height30 mm
Package weight120 g
Product colourRed
Port multiplierYes
Output interfaceSATA
S.M.A.R.T. supportYes
Compliance certificatesCE, RoHS
Expansion card standardPCIe 2.0
Data transfer rate (max)6 Gbit/s
Quick installation guideYes
Master (outer) case width500 mm
Storage temperature (T-T)-25 - 85 °C
Master (outer) case height310 mm
Master (outer) case length370 mm
Warranty3-Year Warranty
Weight75 g
Dimensions54 mm x 139 mm x 16 mm

Product Description

SATA III (6Gbps) | PCI Express 2.0 | PCIe x2 Slot | 10x SATA Connectors | 2-Year Warranty This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications. ASM1062 to Deliver 10-Port SATA 6Gbps Performance Featuring the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately). Wide Compatibility The controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance. Hassle-Free Installation The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building. 10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support. The StarTech.com Advantage

Key Features

StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter. Host interface: PCIe, Output interface: SATA, Expansion card standard: PCIe 2.0. Product colour: Red. Chipset: ASMedia - ASM1062, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 11.0 Big Sur, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Server operating systems supported: Windows Server 2019, Windows Server 2012 R2, Windows Server 2016. Width: 54 mm, Depth: 139 mm, Height: 16 mm
