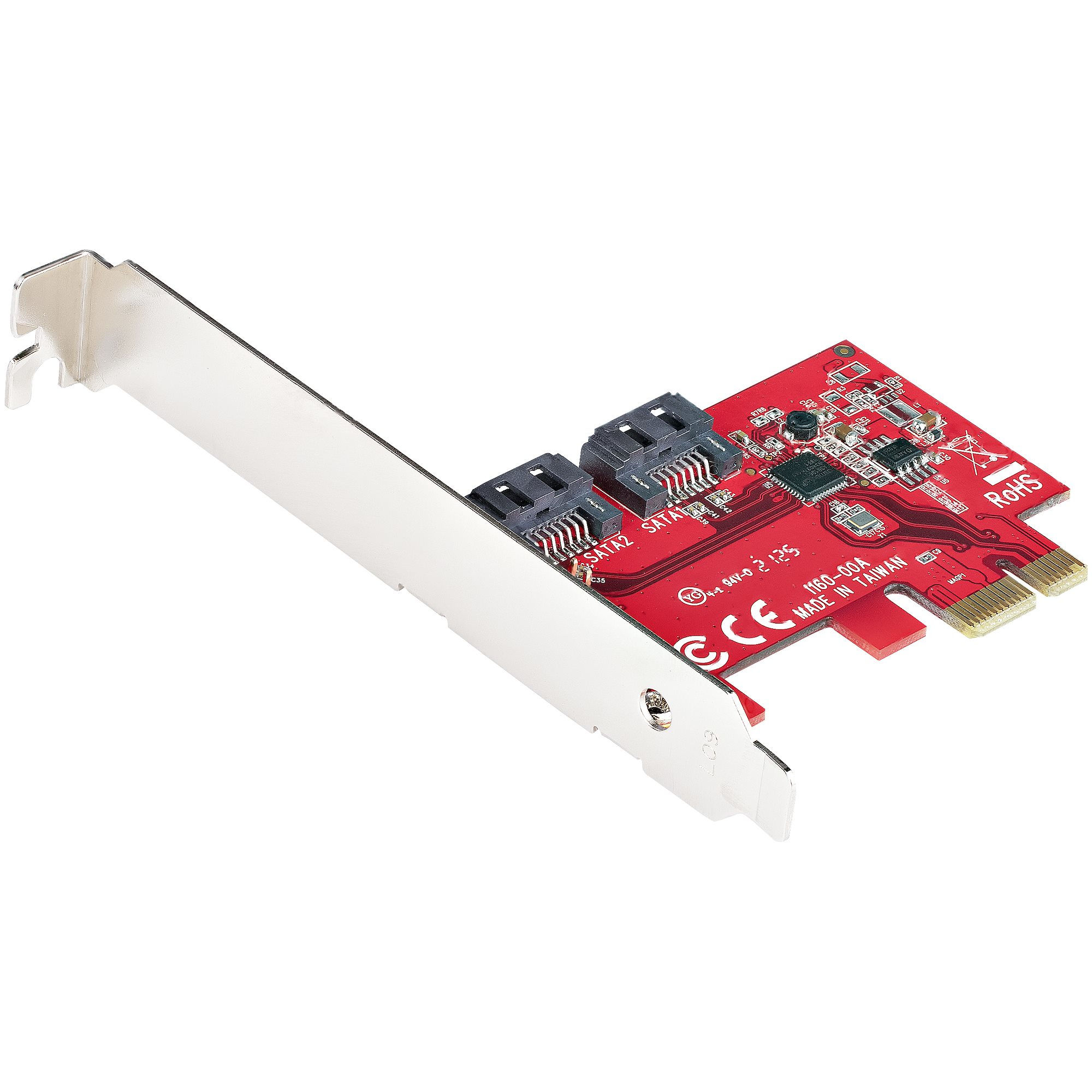

StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to SATA Converter

Brand: StarTech.com · SKU: STA-2P6G-PCIE-SATA-CARD · MPN: SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to SATA Converter · Category: Components

StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to SATA Converter
$89.97
In Stock • 10 units

StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to SATA Converter, PCIe, SATA, Red, ASMedia - ASM1161, 6 Gbit/s, 0 - 85 °C

View Components Products

Specifications

Depth69 mm
Width18 mm
Height121 mm
Weight33 g
ChipsetASMedia - ASM1161
InternalYes
User guideYes
TRIM supportYes
Package depth175 mm
Package width142 mm
SATA revision3.0
Host interfacePCIe
LED indicatorsYes
Package height30 mm
Package weight110 g
Product colourRed
Port multiplierYes
Output interfaceSATA
S.M.A.R.T. supportYes
Data transfer rate (max)6 Gbit/s
Master (outer) case width370 mm
Storage temperature (T-T)-25 - 85 °C
Master (outer) case height500 mm
Master (outer) case length380 mm
Warranty3-Year Warranty
Weight33 g
Dimensions18 mm x 69 mm x 121 mm

Product Description

SATA III (6Gbps) | PCI Express 2.0 | PCIe x1 Slot | 2x SATA Connectors | Lifetime Warranty This 2-port SATA III (6Gbps) controller enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x1 card slot. The card supports SATA III and PCI-Express 2.0 Specifications. ASM1061 to Deliver 2-Port SATA 6Gbps Performance Featuring the ASM1061 controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 4Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately). Wide Compatibility The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.6.8 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately). To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance. Hassle-Free Installation The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building. 2P6G-PCIE-SATA-CARD is backed by a StarTech.com lifetime warranty and free lifetime 24/5 North American based, multi-lingual support. The StarTech.com Advantage

Key Features

StarTech.com SATA PCIe Card - 2 Port PCIe SATA Expansion Card - 6Gbps - Full/Low Profile - PCI Express to SATA Adapter/Controller - ASM1061 Non-Raid - PCIe to SATA Converter. Host interface: PCIe, Output interface: SATA. Product colour: Red. Chipset: ASMedia - ASM1161, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019. Width: 18 mm, Depth: 69 mm, Height: 121 mm
