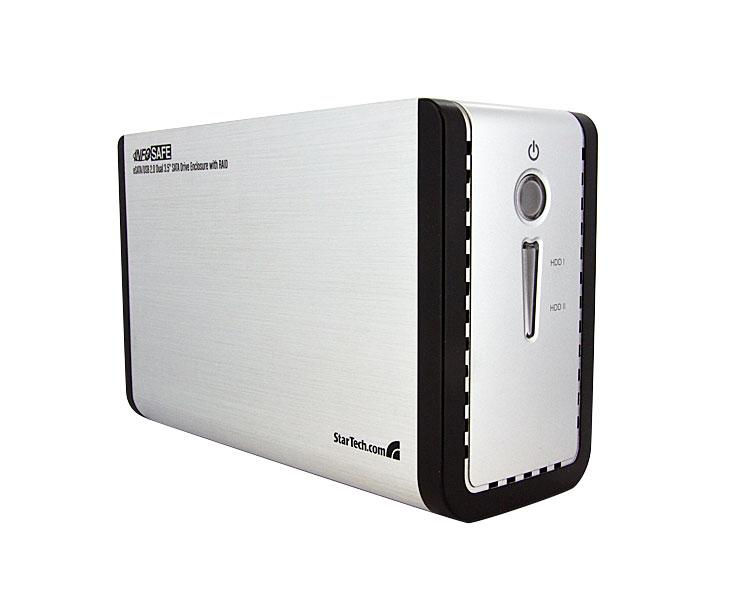

StarTech.com SAT3520U2ER storage drive enclosure Silver
Brand: StarTech.com · SKU: SAT3520U2ER · MPN: SAT3520U2ER · Category: Components
StarTech.com SAT3520U2ER, Silver. StarTech.com SAT3520U2ER storage drive enclosure Silver (part number SAT3520U2ER) is an enterprise components product available from Server Tech Central. Key specifications include depth 230 mm, width 100 mm, height 142 mm, chipset Silcon Image SIL5744, material Aluminium, raid levels 0, 1, 50, JBOD, certification RoHS, CE, FCC, UL, package depth 264 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 230 mm |
|---|---|
| Width | 100 mm |
| Height | 142 mm |
| Chipset | Silcon Image SIL5744 |
| Material | Aluminium |
| RAID levels | 0, 1, 50, JBOD |
| Certification | RoHS, CE, FCC, UL |
| Package depth | 264 mm |
| Package width | 154 mm |
| Plug and Play | Yes |
| LED indicators | Yes |
| Package height | 188 mm |
| Package length | 26.4 cm |
| Package weight | 2.01 kg |
| Product colour | Silver |
| eSATA ports quantity | 1 |
| Card reader integrated | No |
| External power adapter | Yes |
| USB 2.0 ports quantity | 1 |
| Maximum storage capacity | 3 TB |
| Supported data transfer rates | 3 Gbit/s |
| Number of storage drives supported | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 100 mm x 230 mm x 142 mm |
Product Description
RAID array supported External storage enclosure for up to 2 SATA hard drives requiring only a single eSATA connection. * Built-in support for numerous RAID modes for most personal/business needs and an 50mm cooling fan to keep drives from overheating * Support for up to 2 SATA drives over a high speed eSATA or USB 2.0 interface * Backed by a StarTech.com 1 year warranty and free lifetime technical support This Dual SATA External Hard Drive Enclosure delivers the ideal external RAID solution, allowing you to install two high capacity 3.5in SATA hard drives (SATA, SATA II, SATA III), connected to the host computer through either a Port-Multiplier capable eSATA or USB 2.0 ports. For true eSATA convenience, the enclosure features built-in port multiplier support, allowing both of the installed Serial ATA drives to be connected to the host computer through a single eSATA cable. A versatile external storage solution, the enclosure supports almost any 3.5in SATA hard drive and can be connected to a computer through USB 2.0, if an eSATA connection is not available. The enclosure supports multiple RAID array configurations including RAID 0, RAID 1, BIG(JBOD), SAFE33 & SAFE55 - allowing you to configure your external drives to best suit the application. To help protect installed SATA hard drives and their valuable data content from in-transit damage, the enclosure features a sturdy aluminum casing that also enhances drive heat dissipation for a cooler operating environment. To provide further cooling for installed SATA hard drives, the enclosure features a built-in 50mm fan that re-distributes the heat build-up generated as a result of typical drive operation. This is especially important when using large capacity hard drives, and faster “spinning"" drives (i.e 7200 RPM), as it can help keep drives running cooler, which can preserve data integrity and the drive''s lifespan by reducing the chances of premature failures. An out-of-the-box external RAID or USB 2.0 storage solution, the eSATA/USB Dual External RAID Hard Drive Enclosure includes both eSATA and USB 2.0 cables, as well as the necessary power adapter.
Key Features
StarTech.com SAT3520U2ER. Number of storage drives supported: 2, Maximum storage capacity: 3 TB, RAID levels: 0, 1, 50, JBOD. Product colour: Silver
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com SAT3520U2ER storage drive enclosure Silver (SAT3520U2ER) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com SAT3520U2ER storage drive enclosure Silver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com SAT3520U2ER storage drive enclosure Silver compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SAT3520U2ER.
