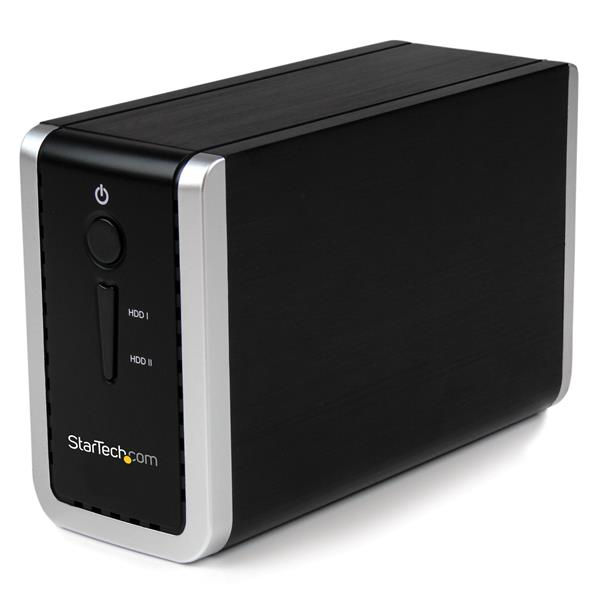

StarTech.com SAT3520U3SR storage drive enclosure Black, Silver 3.5"
Brand: StarTech.com · SKU: SAT3520U3SR · MPN: SAT3520U3SR · Category: Components
StarTech.com SAT3520U3SR, 3.5", Serial ATA II, 3 Gbit/s, Black, Silver. StarTech.com SAT3520U3SR storage drive enclosure Black, Silver 3.5" (part number SAT3520U3SR) is an enterprise components product available from Server Tech Central. Key specifications include depth 192 mm, width 75 mm, height 125 mm, weight 1.3 kg, chipset ASMedia ASM1051, Silicon Image Sil5923, interface USB 3.2 Gen 1 (3.1 Gen 1), raid levels 0, 1, JBOD, fan diameter 5 cm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 192 mm |
|---|---|
| Width | 75 mm |
| Height | 125 mm |
| Weight | 1.3 kg |
| Chipset | ASMedia ASM1051, Silicon Image Sil5923 |
| Interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| RAID levels | 0, 1, JBOD |
| Fan diameter | 5 cm |
| FireWire 400 | No |
| FireWire 800 | No |
| Package depth | 261 mm |
| Package width | 152 mm |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Package height | 186 mm |
| Package weight | 1.8 kg |
| Product colour | Black, Silver |
| Cables included | USB |
| Data transfer rate | 3 Gbit/s |
| Power requirements | 110 - 240 AC |
| Storage drive size | 3.5" |
| Card reader integrated | No |
| External power adapter | Yes |
| Compliance certificates | RoHS |
| Warranty | 3-Year Warranty |
| Weight | 1.3 kg |
| Dimensions | 75 mm x 192 mm x 125 mm |
Product Description
The SAT3520U3SR USB 3.0 RAID Enclosure turns two 3.5" SATA (SATA I, SATA II, SATA III) hard drives into an external RAID array through a USB 3.0 connection. Large capacity drives (tested with up to 4TB per bay) can be used to greatly enhance your computer storage/backup capabilities. Whether it's greater capacity or data redundancy you're looking for, this USB 3.0 dual drive enclosure is the solution, with built-in support for multiple RAID modes (RAID 0, 1, JBOD) which enables the enclosure to fit the role you need. The drive enclosure also supports non-RAID operation, so both drives can be used independant. Compliant with the SuperSpeed USB 3.0 specification, which can provide up to 5 Gbps of data bandwidth (10x more than USB 2.0), the SAT3520U3SR RAID enclosure makes it easier and faster to transfer or stream large amounts of data. Although the dual drive enclosure will perform at peak speeds when connected to a USB 3.0 host computer, it is also more than suitable for use with older systems, as it is backward compatible with USB 2.0 connections. - Dual bay USB 3.0 enclosure supports the latest USB standard for up to 5 Gbps of data bandwidth for faster data transfers than USB 2.0. - Built-in support for multiple RAID modes suit most personal/business needs for easier setup. - USB 3.0 RAID enclosure with a 50mm cooling fan keeps the hard drives cool over extended periods of activity, for optimized performance.
Key Features
StarTech.com SAT3520U3SR. Number of storage drives supported: 2, Storage drive size: 3.5", Supported storage drive interfaces: Serial ATA II. Data transfer rate: 3 Gbit/s. RAID levels: 0, 1, JBOD. Product colour: Black, Silver
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com SAT3520U3SR storage drive enclosure Black, Silver 3.5" (SAT3520U3SR) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com SAT3520U3SR storage drive enclosure Black, Silver 3.5" includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com SAT3520U3SR storage drive enclosure Black, Silver 3.5" compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SAT3520U3SR.
