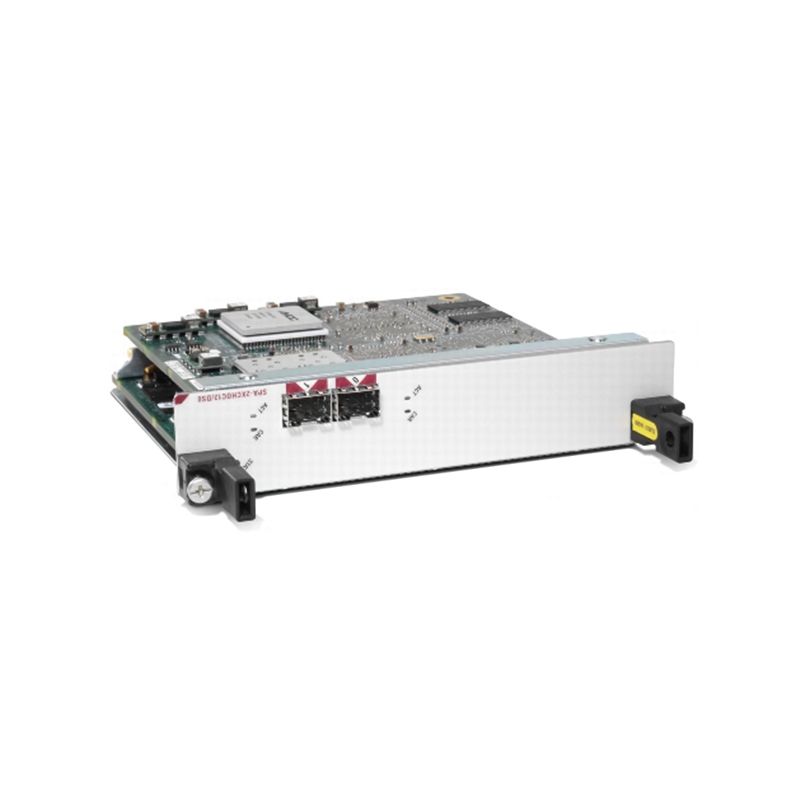

SPA-2XCHOC12/DS0, Cisco ASR 9000 Adapter, 2xOC12/DS0, Channelized, Shared Port Adapter

Brand: Cisco · SKU: SPA-2XCHOC12/DS0 · MPN: SPA-2XCHOC12/DS0 · Category: Components

SPA-2XCHOC12/DS0, Cisco ASR 9000 Adapter, 2xOC12/DS0, Channelized, Shared Port Adapter
$106,228.72
In Stock • 10 units

Cisco ASR 9000 Adapter SPA-2XCHOC12/DS02 Port Channelized OC12/DS0 Shared Port Adapter

View Components Products

Specifications

TypeCisco ASR 9000 Series Shared Port Adapter
ModelSPA-2XCHOC12/DS0
Weightkg
ProtocolsIETF RFC 1490 Frame Relay encapsulation; RFC 1662 PPP in HDLC-like framing; Cisco HDLC; Multilink PPP (RFC 1990) for 2-port channelized OC-12c/STM-4 (DS-1/E1); FRF.12 link fragmentation and interleaving (LFI); PPP, HDLC, and Frame Relay UNI encapsulations
Product TypeCisco ASR 9000 Series Shared Port Adapter
DS-1 featuresSuperframe (SF) and Extended Superframe (ESF) support; ANSI T1.403 FDL support; Internal or line-derived (loop) clocking, independently selectable on each T1 tributary; Error and alarm detection: CRC errors, framing errors, loss of frame (red), AIS (blue), remote alarm indication (yellow); Alarm reporting: 24-hour history with 15-minute intervals; BERT at T1 level; Loopback: local, network line and payload, remote network line and payload at T1 level
DS-3 featuresFull- and half-duplex connectivity at DS-3 rate (44.736 MHz); Scrambling and subrate support of major DSU vendors; C-bit or M23 framing (software selectable); MDL; Support for 16- and 32-bit CRC (16-bit default); 24-hour history for error statistics and failure counts; DS-3 alarm and event detection (once-per-second polling); AIS; OOF; FERF
EMC complianceFCC Part 15 (CFR 47); ICES-003; EN 55022; CISPR 22; AS/NZS CISPR 22; VCCI; EN 55024; EN 50082-1; EN 61000-6-1; EN 61000-3-2; EN 61000-3-3
Power consumption2-port channelized OC-12/STM-4: 52.0 W (with optics)
Safety complianceUL 60950; CSA 22.2 No. 60950; EN 60950; IEC 60950 CB Scheme; ACA TS001; AS/NZS 3260; EN 60825 / IEC 60825 laser safety (SR, IR-Class 1) (VSR-Class 1M); 21CFR1040 FDA laser safety (SR, IR-Class 1) (VSR-Class 1M)
Network managementSONET-MIB (RFC 3592); SONET/SDH-MIB (RFC 2558); CISCO-SONET-MIB; DS-3/E3-MIB (RFC 3896); DS-1/E1-MIB (RFC 2496); SNMP
Physical dimensionsHeight: 1.56 in. (3.96 cm) double height; Width: 6.75 in. (17.15 cm); Depth: 7.28 in. (18.49 cm)
Storage environmentStorage temperature: -38 to 150 °F (-40 to 70 °C); Storage humidity: 5% to 95% relative humidity
Port density per SPA2-port channelized OC-12/STM-4
SONET/SDH complianceTelcordia (Bellcore) GR-253-CORE (as applicable); ANSI T1.105, T1.231; ITU-T G.707, G.957, G.825 (as applicable)
Operating environmentOperating temperature: 41 to 104 °F (5 to 40 °C); Operating humidity: 5% to 85% relative humidity
Product compatibilityCisco ASR 9000 Series Router
SONET synchronizationLocal (internal) or loop timed (recovered from network); Pointer activity monitoring; Redundant clock source should be provisioned on different SPAs as only a single timing source can be provided by one SPA
NEBS compliance (design)Designed to meet: SR-3580 NEBS criteria levels (Level 3 compliant); GR-63-CORE physical protection; GR-1089-CORE EMC and safety (official qualification may be in progress)
Physical weight (reference)1.27 lb (0.57 kg)
Loopback and payload mappingLocal (diagnostic) and line (network) loopback; Payload mapping: POS with 1 + X^43 self-synchronous scrambler
Reliability and availabilityOnline insertion and removal (OIR); Field-replaceable SFP optical modules; 1+1 SONET APS and SDH Linear MSP protocols (check platform support); Single SPA software reset
SONET/SDH line alarms and errorsLine alarm indication signal (LAIS); Line remote defect indication (LRDI); Line remote error indication (LREI); Error counts for B2; TCA for B2
SONET/SDH path alarms and errorsPath alarm indication signal (PAIS); Path remote defect indication (PRDI); Path remote error indication (PREI); Error counts for B3; TCA for B3; Loss of pointer (LOP); Positive stuffing event (PSE); Negative stuffing event (NSE); Path unequipped indication signal (PUNEQ); Path payload mismatch indication signal (PPLM)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
