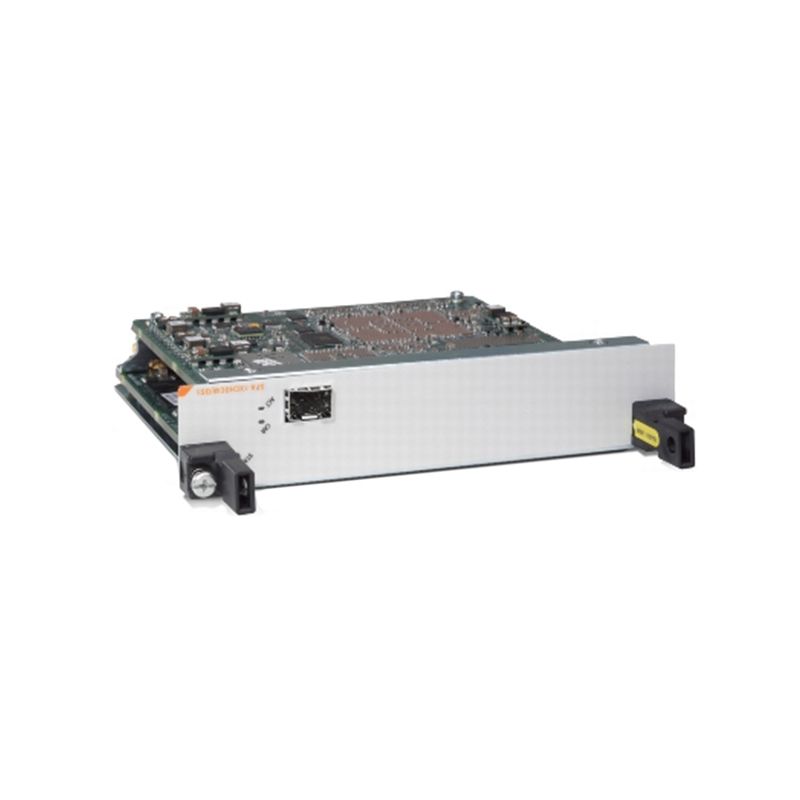

SPA-1XCHOC48/DS3, Cisco ASR 9000 Adapter, 1-port Channelized OC48/DS3/Hot-swappable

Brand: Cisco · SKU: SPA-1XCHOC48/DS3 · MPN: SPA-1XCHOC48/DS3 · Category: Components

SPA-1XCHOC48/DS3, Cisco ASR 9000 Adapter, 1-port Channelized OC48/DS3/Hot-swappable
Request for Quote
In Stock • 10 units

Cisco ASR 9000 Adapter SPA-1XCHOC48/DS31-port Channelized OC48 to DS3 SPA

View Components Products

Specifications

NEBSDesigned to meet: SR-3580 NEBS criteria levels (Level 3 compliant); GR-63-CORE NEBS physical protection; GR-1089-CORE NEBS EMC and safety (official qualification may be in progress)
TypeSPA-1XCHOC48/DS3 Cisco ASR 9000 Series & XR 12000 Shared Port Adapter
ModelSPA-1XCHOC48/DS3
Weightkg
ProtocolsIETF RFC 1490 Frame Relay encapsulation; RFC 1662 PPP in HDLC-like framing; Cisco HDLC; PPP, HDLC, and Frame Relay UNI encapsulations
Product TypeSPA-1XCHOC48/DS3 Cisco ASR 9000 Series & XR 12000 Shared Port Adapter
EMC complianceFCC Part 15 (CFR 47); ICES 003; CISPR 22; AS/NZS CISPR22; VCCI; EN55022; EN55024; EN300 386; EN50082-1; EN61000-6-1
Payload mappingPOS with 1 + X^43 self-synchronous scrambler
Power consumption1-port Channelized OC-48/STM-16: 44 W (with optics)
Safety complianceUL/CSA 60950-1; IEC/EN 60950-1; AS/NZS 60950.1; EN60825/IEC60825 laser safety; 21CFR1040 FDA Code of Federal Regulations (USA) laser safety
Network managementSONET-MIB (RFC 3592); SONET/SDH-MIB (RFC 2558); CISCO-SONET-MIB; DS-3/E3-MIB (RFC 3896); Simple Network Management Protocol (SNMP)
Physical dimensionsWeight: 1.27 lb (0.57 kg); height: 1.56 in (3.96 cm, double height); width: 6.75 in (17.15 cm); depth: 7.28 in (18.49 cm)
Port density per SPA1-port Channelized OC-48/STM-16
SONET/SDH complianceTelcordia (Bellcore) GR-253-CORE (as applicable); ANSI T1.105, T1.231; ITU-T G.707, G.957, G.825 (as applicable)
Product compatibilityCisco XR 12000 Series Routers; Cisco ASR 9000 Series Router
SONET/SDH synchronizationLocal (internal) or loop timed (recovered from network); pointer activity monitoring; local (diagnostic) and line (network) loopback
DS3 features and functionsFull- and half-duplex connectivity at DS-3 rate (44.736 MHz); scrambling and subrate support of major DSU vendors; C-bit or M23 framing in DS-3 mode; G.751 or G.832 in E3 mode; support for 16- and 32-bit CRC (16-bit default); 24-hour history for error statistics and failure counts; DS-3 alarm and event detection (once-per-second polling); AIS; OOF; FERF
Environmental specificationsOperating temperature: 41 to 104 °F (5 to 40 °C); storage temperature: -38 to 150 °F (-40 to 70 °C); operating humidity: 5 to 85% relative humidity; storage humidity: 5 to 95% relative humidity
Reliability and availabilityOnline insertion and removal (OIR); field-replaceable SFP optical modules; 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols; single SPA software reset
Supported SONET/SDH line eventsLine alarm indication signal (LAIS); line remote defect indication (LRDI); line remote error indication (LREI); error counts for B2; TCA for B2
Supported SONET/SDH path eventsPath alarm indication signal (PAIS); path remote defect indication (PRDI); path remote error indication (PREI); error counts for B3; TCA for B3; loss of pointer (LoP); positive stuffing event (PSE); negative stuffing event (NSE); path unequipped indication signal (PUNEQ); path payload mismatch indication signal (PPLM)
Supported SONET/SDH section eventsSignal failure bit error rate (SF-ber); signal degrade bit error rate (SD-ber); signal label payload construction (C2); path trace byte (J1); loss of signal (LoS); loss of frame (LoF); error counts for B1; threshold crossing alarms (TCA) for B1
Physical interface (Channelized OC-48)OC-48c/STM-16 Small Form-Factor Pluggable (SFP) optics module; visual status indicators (LEDs): SPA status LED, per-port LEDs, carrier and alarm, active and loopback
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this SPA-1XCHOC48/DS3, Cisco ASR 9000 Adapter, 1-port Channelized OC48/DS3/Hot-swappable (SPA-1XCHOC48/DS3) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This SPA-1XCHOC48/DS3, Cisco ASR 9000 Adapter, 1-port Channelized OC48/DS3/Hot-swappable includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the SPA-1XCHOC48/DS3, Cisco ASR 9000 Adapter, 1-port Channelized OC48/DS3/Hot-swappable compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-1XCHOC48/DS3.
