SPA-2XOC48POS/RPR, Cisco ASR 9000 Adapter, 2xOC48/STM16 POS, RPR support, Shared Port Adapter
Brand: Cisco · SKU: SPA-2XOC48POS/RPR · MPN: SPA-2XOC48POS/RPR · Category: Components
$37,453.20
In Stock • 10 units

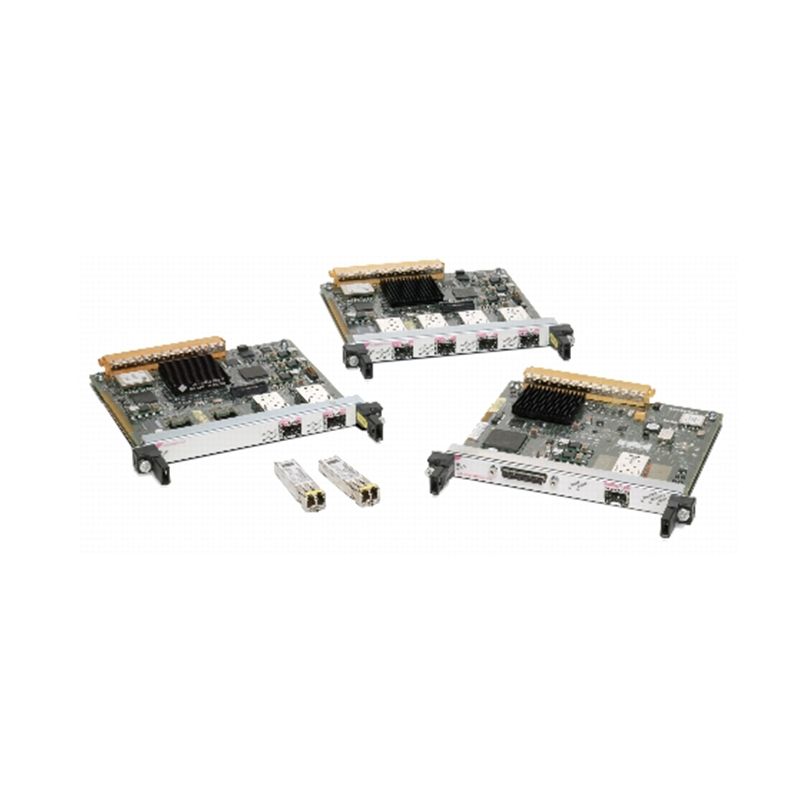

Cisco ASR 9000 Adapter SPA-2XOC48POS/RPR 2-port OC48/STM16 POS/RPR Shared Port Adapters
Specifications
| Type | Cisco Router Shared Port Adapter |
|---|---|
| Model | SPA-2XOC48POS/RPR |
| Power | 18 W maximum (4-port); 15.5 W maximum (1-, 2-, and 4-port); 12 W maximum (1-port) |
| Weight | 2.85 kg |
| Protocols | High-Level Data Link Control (HDLC), RFC 2615; Point-to-Point Protocol (PPP), RFC 1662; Frame Relay, RFC 2427; IPv4/IPv6; IEEE 802.17 Resilient Packet Ring (RPR); IETF 2892 Spatial Reuse Protocol (SRP) |
| Product Type | Cisco Router Shared Port Adapter |
| Network Management | RFC 2558 MIB (SONET/SDH); Simple Network Management Protocol (SNMP) |
| Physical Interface | OC-48c/STM-16c SFP optics module; Visual status indicators (LEDs): SPA status LED, Per port LEDs, Carrier/Alarm, Active/Loopback, Protect (DPT/RPR mode), Pass Through (DPT/RPR mode) |
| Port Density per SPA | 1, 2, and 4 ports |
| Product Compatibility | Cisco Catalyst 6500 Series Switches; Cisco 7600 Series Routers; Cisco 12000 Series Routers; Cisco XR 12000 Series Routers; Cisco ASR 1000 Series Router; Cisco ASR 9000 Series Router (2 port only); Cisco CRS Carrier Routing System (2 and 4 port only) |
| Physical Specifications | Weight: 0.75 lb (0.34 kg); Height: 0.8 in (2.03 cm); Width: 6.75 in (17.15 cm); Depth: 7.28 in (18.49 cm) |
| Environmental Specifications | Operating temperature: 41°F to 104°F (5°C to 40°C); Storage temperature: -38°F to 150°F (-40°C to 70°C); Operating humidity: 5% to 85% relative humidity; Storage humidity: 5% to 95% relative humidity |
| Reliability and Availability | Online insertion and removal (OIR); Field-replaceable SFP optical modules; 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols; Single SPA software reset |
| Compliance and Agency Approvals - EMC | FCC Part 15 (CFR 47); ICES 003; EN 55022; CISPR 22; AS/NZ 3548; VCCI; EN 55024; EN 50082-1; EN 61000-6-1; EN 61000-3-2; EN 61000-3-3 |
| Compliance and Agency Approvals - ETSI | European Telecommunications Standards Institute (ETSI); EN 300 386 / EN 300 386-2 Class B; ETS 300 019 Storage Class 1.1; ETS 300 019 Transportation Class 2.3; ETS 300 019 Stationary Use Class 3.1 |
| Compliance and Agency Approvals - NEBS | Network Equipment Building System (NEBS); designed to meet: SR-3580 NEBS criteria levels (Level 3 compliant); GR-63-CORE NEBS physical protection; GR-1089-CORE NEBS EMC and safety |
| Compliance and Agency Approvals - Safety | UL 60950; CSA 22.2 No.60950; EN 60950; IEC 60950 CB Scheme; ACA TS001; AS/NZS 3260; EN 60825 / IEC 60825 laser safety (SR, IR - Class 1) (VSR - Class 1M); 21CFR1040 - FDA Code of Federal Regulations (USA) laser safety (SR, IR - Class 1) (VSR - Class 1M) |
| Features and Functions - Payload Mapping | 1 + X^43 self-synchronous scrambler |
| Features and Functions - Synchronization | Local (internal) or loop timed (recovered from network); Stratum 3 clock accuracy (±4.6 ppm) over full operating temperature; Pointer activity monitoring; Local (diagnostic) and line (network) loopback; Section DCC (SDCC) - platform-dependent feature |
| Features and Functions - SONET/SDH Compliance | Telcordia (Bellcore) GR-253-CORE (as applicable); ANSI T1.105, T1.231; ITU-T G.707, G.957, G.825 (as applicable) |
| Supported SONET/SDH Alarm and Signal Events - Line | Line Alarm Indication Signal (LAIS); Line Remote Defect Indication (LRDI); Line Remote Error Indication (LREI); Error Counts for B2; Threshold Crossing Alarms (TCA) for B2 |
| Supported SONET/SDH Alarm and Signal Events - General | Signal Failure Bit Error Rate (SF-BER); Signal Degrade Bit Error Rate (SD-BER); Signal Label Payload Construction (C2); Path Trace Byte (J1) |
| Supported SONET/SDH Alarm and Signal Events - Section | Loss of Signal (LOS); Loss of Frame (LOF); Error Counts for B1; Threshold Crossing Alarms (TCA) for B1 |
| Supported SONET/SDH Alarm and Signal Events - Path (1) | Path Alarm Indication Signal (PAIS); Path Remote Defect Indication (PRDI); Path Remote Error Indication (PREI); Error Counts for B3; Threshold Crossing Alarms (TCA) for B3 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
