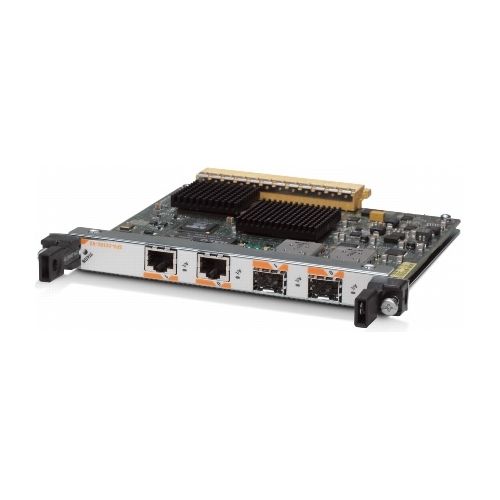

SPA-2X1GE-V2, Cisco SPA-2X1GE Series Shared Port Adapter, 2xGE Ports/Hot Swappable/7600 Series
Brand: Cisco · SKU: SPA-2X1GE-V2 · MPN: SPA-2X1GE-V2 · Category: Components
Request for Quote
In Stock • 10 units
Cisco 7600 Cisco 2-Port Gigabit Ethernet Shared Port Adapter
Specifications
| Model | SPA-2X1GE-V2 |
|---|---|
| Weight | 3.8 kg |
| LED indicators | SPA status LED: off = SPA powered off; amber = SPA powered on and initializing; green = SPA powered on and operational. Per-port bicolor LED: off = port not enabled by software; amber = port enabled but Ethernet link problem; green = port enabled with valid Ethernet link. |
| Network management | Managed through host-system CLI and SNMP; supports Entity-MIB (RFC 2737); Cisco-entity-asset-MIB; Cisco-entity-FRU-control-MIB; Cisco-entity-alarm-MIB; Cisco-entity-sensor-MIB; IF-MIB; EtherLike-MIB (RFC 2665); RMON-MIB (RFC 1757); Cisco-class-based-QoS-MIB; MPLS-related MIBs; Ethernet MIB/RMON |
| Physical dimensions | Height: 0.8 in (2.03 cm) single height; Width: 6.75 in (17.15 cm); Depth: 7.28 in (18.49 cm) |
| Physical interfaces | Short wavelength (SX); Long reach/long haul (LX/LH); Extended distance (ZX) SFP; SFP-GE-T (5-, 8-, and 10-port Gigabit Ethernet SPAs); Built-in RJ-45 (2-port Gigabit Ethernet SPA) |
| Port density per SPA | 2*, 5, 8, or 10 Gigabit Ethernet ports (* usable in combination of SFP and RJ-45 ports for a total of 2 Gigabit Ethernet ports) |
| Product compatibility | Cisco Catalyst 6500 Series Switches (2 and 10-port GE SPAs); Cisco 7600 Series Router (2-, 5-, and 10-port GE SPAs); Cisco 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs); Cisco XR 12000 Series Router (2-, 5-, 8-, and 10-port GE SPAs); Cisco ASR 1000 Series Router (2-, 5-, 8-, and 10-port GE SPAs); Cisco CRS Carrier Routing System (5-, 8-, and 10-port GE SPAs); Cisco 10000 Series Router (2 and 5-port GE SPAs) |
| Module power consumption | SPA: 13.1 W |
| Reliability and availability | Online Insertion and Removal (OIR) of the SPA within the SIP and OIR of optics within the SPA; Field-replaceable SFP optical modules |
| Compliance and approvals – EMC | CFR 47; FCC Part 15 Class A; ICES 003 Class A; CISPR 22 Class A; EN 55022 Class A; EN 300386 Class A; AS/NZS Class A; VCCI Class B; EN 50082-1; EN 55024; IEC/EN 61000-4-2 Electrostatic Discharge Immunity (8 kV contact, 15 kV air); IEC/EN 61000-4-3 Radiated Immunity (10 V/m); IEC/EN 61000-4-4 Electrical Fast Transient Immunity (2 kV power, 1 kV signal); IEC/EN 61000-4-5 Surge AC Port (4 kV common mode, 2 kV differential mode); IEC/EN 61000-4-5 Surge Signal Port (1 kV indoor, 2 kV outdoor); IEC/EN 61000-4-5 Surge DC Port (1 kV); IEC/EN 61000-4-6 Immunity to Conducted Disturbances (10 Vrms); IEC/EN 61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m); IEC/EN 61000-4-11 Voltage dips, short interruptions, and voltage variations |
| Compliance and approvals – Safety | UL 60950-1; CSA C22 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950; EN 60825-1; EN 60825-2; 21 CFR 1040 |
| Environmental specifications (altitude) | Operating altitude: -60 to 4000 m |
| Features and functions (Layer 2 and VLAN) | Autonegotiation; Full-duplex operation; IEEE 802.1Q VLAN termination; IEEE 802.1ad QinQ termination (stacked VLAN processing); Layer 2 access list (MAC address-based filtering); Up to 8000 VLANs per SPA, up to 4000 VLANs per port for 802.1Q; Up to 2000 destination MAC address filtering entries per SPA and up to 1000 MAC address filtering entries per port |
| Features and functions (traffic, OIR and counters) | Jumbo Frames support (up to 9188 bytes); CLI-controlled Online Insertion and Removal (OIR); IEEE 802.3x flow control; BPDU, Cisco Discovery Protocol, and VLAN Trunking Protocol (VTP) filtering; Layer 2 protocol tunneling (BPDU, Cisco Discovery Protocol, VTP); Up to 5000 MAC accounting entries per SPA (source MAC on ingress, destination MAC on egress); Per-port byte and packet counters for policy drops, oversubscription drops, CRC error drops, packet sizes, and unicast, multicast, and broadcast packets; Per-VLAN byte and packet counters for policy drops, oversubscription drops, and unicast, multicast, and broadcast packets; Per-port byte counters for good bytes and dropped bytes |
| Environmental specifications (temperature and humidity) | Storage temperature: -40 to 70 °C (-38 to 150 °F); Operating temperature, nominal: 0 to 40 °C (32 to 104 °F); Operating temperature, short term: 0 to 55 °C (32 to 131 °F); Storage relative humidity: 5% to 95% relative humidity; Operating humidity, nominal: 5% to 85% relative humidity; Operating humidity, short term: 5% to 90% relative humidity |
| Compliance and approvals – Telecom and industry standards | IEEE 802.3z; SR-3580 NEBS Level 3; GR-63-CORE NEBS physical protection; GR-1089-CORE NEBS EMC and safety |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SPA-2X1GE-V2, Cisco SPA-2X1GE Series Shared Port Adapter, 2xGE Ports/Hot Swappable/7600 Series (SPA-2X1GE-V2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SPA-2X1GE-V2, Cisco SPA-2X1GE Series Shared Port Adapter, 2xGE Ports/Hot Swappable/7600 Series includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SPA-2X1GE-V2, Cisco SPA-2X1GE Series Shared Port Adapter, 2xGE Ports/Hot Swappable/7600 Series compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-2X1GE-V2.
