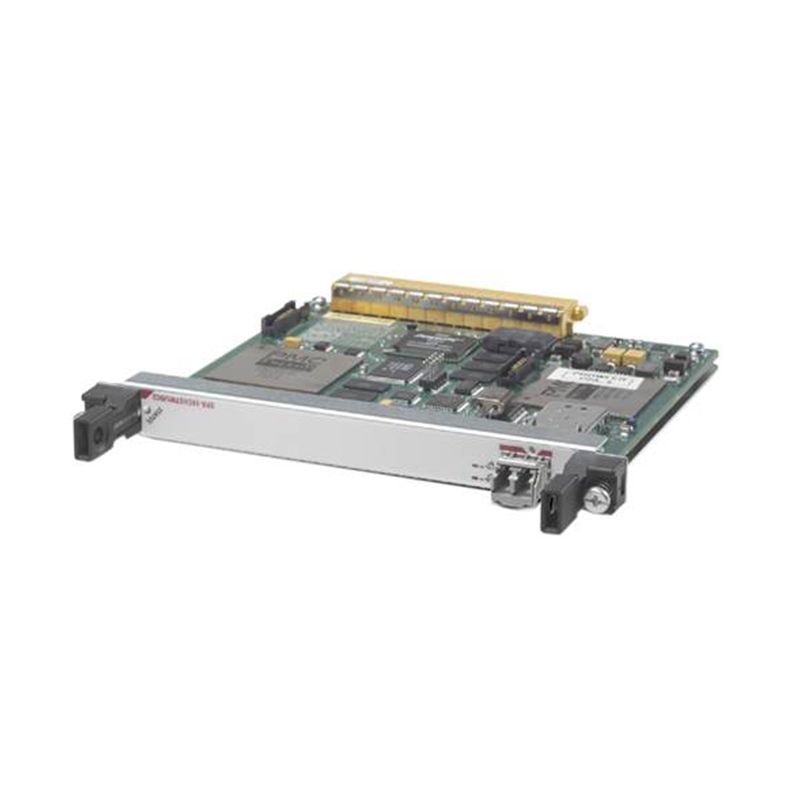

SPA-1XCHSTM1/OC3, Cisco ASR 9000 Adapter, 1-port STM-1/OC-3c, Channelized, DS0 Shared Port
Brand: Cisco · SKU: SPA-1XCHSTM1/OC3 · MPN: SPA-1XCHSTM1/OC3 · Category: Components
$11,286.56
In Stock • 10 units
Cisco ASR 9000 Adapter SPA-1XCHSTM1/OC3 1-port Channelized STM-1/OC-3c to DS0 Shared Port Adapter
Specifications
| MIBs | RFC 2558 MIB (SONET/SDH); RFC 2495 MIB (T1/E1); RFC 2496 MIB (T3/E3) |
|---|---|
| Model | SPA-1XCHSTM1/OC3 |
| Weight | 13.8 kg |
| Clocking | Internal or line-derived (loop) clocking, independently selectable on each T1 or E1 tributary |
| Protocols | Serial encapsulations: HDLC; PPP (RFC 1662); Frame Relay (RFC 1490). Multilink: MLPPP (RFC 1990); LFI over Frame Relay (FRF.12) and MLPPP. Networking: IPv4, IPv6 |
| Line alarms | Line AIS (LAIS); line RDI (LRDI); line REI (LREI); B2 error counts |
| Path alarms | Path AIS (PAIS); path RDI (PRDI); path REI (PREI); B3 error counts; loss of pointer (LOP); new pointer events (NEWPTR); positive stuffing event (PSE); negative stuffing event (NSE); path unequipped (PUNEQ); path payload mismatch (PPLM) |
| Connectivity | OC-3/STM-1 SFP optics module |
| BERT features | Per-channel BERT pattern generation and detection; programmable pseudorandom pattern up to 32 bits; 32-bit error-count and bit-count registers; detection of patterns with BER up to 10⁻²; 24-hour history of error statistics and failures (15-minute intervals); 16- and 32-bit CRC (16-bit default) |
| Port capacity | Up to 84 T1 (or 3 T3) or 63 E1 (or 3 E3) ports |
| Section alarms | Loss of signal (LoS); loss of frame (LoF); B1 error counts |
| SDH multiplexing | STM-1 ↔ AUG ↔ AU-4 ↔ VC-4 ↔ TUG-3 ↔ TUG-2 ↔ TU-12 ↔ VC-12 ↔ E1 ↔ n × DS-0; STM-1 ↔ AUG ↔ AU-4 ↔ VC-4 ↔ TUG-3 ↔ TU-3 ↔ VC-3 ↔ T3/E3 |
| Network management | SNMP |
| SONET multiplexing | OC-3 ↔ STS-3 ↔ STS-1 ↔ VTG ↔ VT1.5 ↔ T1 ↔ n × DS-0; OC-3 ↔ STS-3 ↔ STS-1 ↔ T3 ↔ T1 ↔ n × DS-0; OC-3 ↔ STS-3 ↔ STS-1 ↔ T3; OC-3 ↔ STS-3 ↔ STS-1 ↔ T3 ↔ E1 ↔ n × DS-0 |
| Supported services | Channelized OC-3 to T1; Channelized STM-1 to E1; clear channel T3/E3; subrate T3/E3; full-rate T1; clear channel E1; Channelized T1/E1 |
| BERT patterns T1/E1 | All 0s; all 1s; 2¹¹; 2¹⁵; 2²⁰; 2²⁰ QRSS; 2²³; alternating 0s and 1s; 1-in-8; 3-in-24 |
| BERT patterns T3/E3 | All 0s; all 1s; 2¹⁵; 2²⁰; 2²⁰ QRSS; 2²³; alternating 0s and 1s; 1-in-8; 3-in-24 |
| Physical dimensions | Height: 0.8 in (2.03 cm); Width: 6.75 in (17.15 cm); Depth: 7.28 in (18.49 cm) |
| E1-specific features | CRC4 or non-CRC4 framing (ITU-T G.703, G.704); alarm monitoring; AIS; OOF; RAI; performance: CRC/bit errors, framing bit errors, FEBE |
| E3-specific features | G.751 framing; alarm monitoring; AIS; OOF; FERF; performance: framing pattern errors, BIP-8 error counts, FEBE counts |
| T1-specific features | D4 SF or ESF framing; ANSI T1.403 and AT&T TR 54016 FDL support; alarm monitoring; AIS; OOF; far-end alarm failure (yellow or distant alarm); performance: CRC/bit errors, framing bit errors, line errored seconds, far-end errored seconds, far-end severely errored seconds, far-end unavailable seconds |
| T3-specific features | Channelized T3 with 28 DS-1 or 21 E1 lines; unchannelized T3 with subrate and scrambling formats for Digital Link, ADC/Kentrox, Larscom, Adtran, Verilink DSUs; C-bit or M23/M13 framing; MDL; T3 FEAC channel; AIS; OOF; FERF; performance: FERR (F- or M-bit errors), P-bit errors, C-bit errors, FEBE counts |
| Loopback capabilities | Local and remote loopback at T3/T1 level; network loopback at STM-1/OC-3, T3/E3, and T1/E1 levels; response to embedded loopback commands; insertion of loopback commands into transmitted signal |
| Product compatibility | Cisco 7600 Series Routers; Cisco ASR 1000 Series Routers; Cisco ASR 9000 Series Routers |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SPA-1XCHSTM1/OC3, Cisco ASR 9000 Adapter, 1-port STM-1/OC-3c, Channelized, DS0 Shared Port (SPA-1XCHSTM1/OC3) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SPA-1XCHSTM1/OC3, Cisco ASR 9000 Adapter, 1-port STM-1/OC-3c, Channelized, DS0 Shared Port includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SPA-1XCHSTM1/OC3, Cisco ASR 9000 Adapter, 1-port STM-1/OC-3c, Channelized, DS0 Shared Port compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-1XCHSTM1/OC3.
