Brand: Intel · SKU: S5520UR · MPN: S5520UR · Category: Servers

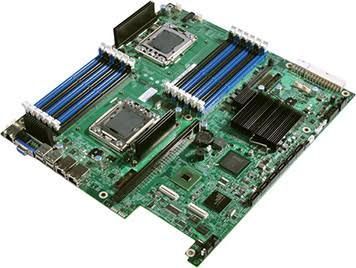

Highly Integrated, rack-optimized server board for enterprise data centers and high-performance computing. It supports Dual Intel Xeon processors, features the Intel Chipset S5520 (Tylersburg-36D) with ICH10R, and uses the SSI EEB-leveraged form-factor (12”x13”). It supports 12 DIMMs for Registered/Unbuffered DDR-3 memory up to 192.38 GB maximum capacity with a maximum memory bandwidth of 1333 GB/s. It includes an Integrated Baseboard Management Controller with IPMI 2.0 support and an option for KVM with a dedicated NIC. I/O includes 6 SATA ports (3Gbps) via ICH10R with Intel Embedded Server RAID Technology (0, 1, 10; optional RAID 5), 2x 1GbE LAN ports, 5 USB 2.0 ports, and 2 Serial Ports. It has integrated graphics and up to 36 lanes of PCIe2 via riser slots.
| Chipset | Intel® 5520 I/O Hub with ICH10R |
|---|---|
| LAN Ports | 2x 1GbE |
| USB Ports | 5 (USB 2.0) |
| CPU Socket | LGA1366 |
| SATA Ports | 6 (3Gbps) |
| Memory Slots | 12 |
| Serial Ports | 2 |
| Max Memory Size | 192.38 GB |
| Remote Management | IPMI 2.0, supports RMM3 (optional) |
| Integrated Graphics | Yes |
| Max CPU Configuration | 2 |
| Memory Type Supported | DDR3 ECC UDIMM, RDIMM (800/1066/1333 MHz) |
| RAID Configuration (Embedded) | Intel Embedded RAID (0,1); upgradeable to RAID5 |
| Warranty | Limited 3-year Warranty (at time of sale) |
| Weight | N/A |
| Dimensions | SSI TEB 2.1 12" x 13" (305mm x 330mm) |
The Intel Server Board S5520UR is a highly integrated, rack-optimized server board designed for enterprise data centers and high-performance computing environments. It supports dual CPUs and up to 192.38 GB of DDR3 ECC memory across 12 DIMM slots. It features 6 SATA ports with embedded RAID capabilities and dual 1GbE LAN. This product has been discontinued, with the last order date being December 31, 2013.
Yes, this Intel Server Board S5520UR (S5520UR) is 100% genuine Intel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Intel Server Board S5520UR includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5520UR.
