Brand: Intel · SKU: S5000PALR · MPN: S5000PALR · Category: Servers

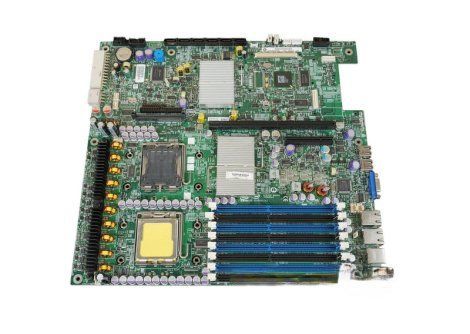

The Intel Server Board S5000PALR is a server motherboard designed for enterprise-level computing in space-constrained environments, supporting dual Intel Xeon processors. It utilizes the Intel 5000P Chipset and ESB2-E I/O Controller. A key difference from the S5000PAL is that the S5000PALR supports both 65nm Xeon 51xx/53xx CPUs and 45nm Xeon 52xx/54xx CPUs. It features 8 DIMM slots for ECC Fully Buffered DDR2 memory, supporting up to 32GB. Onboard storage includes six SATA ports with integrated RAID 0/1 support, upgradeable to RAID 5. Expansion options include PCIe slots and an I/O Module slot. It also features dual Gigabit Ethernet ports and an ATI ES1000 video controller.
| LAN | Double, GbE (10/100/1000 Mb) |
|---|---|
| Chipset | Intel 5000P / Intel ESB2-E |
| CPU Socket | LGA771 (Dual CPU) |
| DIMM Slots | 8 |
| SATA Ports | 6 (ESB2, RAID 0/1, upgradeable to 5) |
| Form Factor | SSI TEB 2.1 |
| Memory Type | ECC Fully Buffered DDR2 (FBDIMM) |
| Graphics Chip | ATI ES1000 with 16MB DDR SDRAM |
| Supported CPUs | 65nm Xeon 51xx/53xx and 45nm Xeon 52xx/54xx CPUs |
| Max Memory Capacity | 32GB |
| Expansion Slots (Riser Dependent) | 2 x Low Profile PCIe x8, 1 x I/O Expansion Module Slot (PCIe x4), 1 x Adaptive Slot4 |
| Warranty | Varies by seller (e.g., Non-DOA for used/refurbished) |
| Weight | N/A |
| Dimensions | SSI TEB 2.1, 12" x 13" (305mm x 330mm) |
The Intel Server Board S5000PALR is a dual-processor server board built on the Intel 5000P chipset, offering high performance and reliability suitable for departmental databases and data-center applications in constrained spaces. It supports 45nm and 65nm Intel Xeon processors and features 8 DDR2 FBDIMM slots for up to 32GB of ECC memory. The board includes integrated dual Gigabit Ethernet and six SATA ports with software RAID capabilities.
Yes, this Intel Server Board S5000PALR (S5000PALR) is 100% genuine Intel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Intel Server Board S5000PALR includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5000PALR.
