Brand: Intel · SKU: SE7501CW2 · MPN: SE7501CW2 · Category: Servers

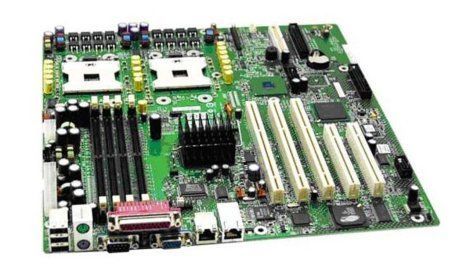

Intel SE7501CW2 Server Motherboard featuring the Intel E7501 chipset, supporting Dual Intel Xeon processors in Socket 603/604 (PGA604). It utilizes the SSI EEB 3.0 form factor and supports up to 8GB of Registered ECC DDR200/DDR266 SDRAM across 4 x 184-pin DIMM slots. Integrated graphics are handled by the ATI RAGE XL SVGA controller with 8MB of video memory. It includes dual LAN: one Intel 82550PM (10/100Mbps) and one Intel 82540EM (10/100/1000Mbps). Rear panel ports include 2 PS/2, 1 COM, 1 LPT, 1 Video port, and 3 USB 1.1 ports. Expansion includes 2 PCI slots.
| Chipset | Intel E7501 |
|---|---|
| LAN Ports | 1x 10/100Mbps (Intel 82550PM), 1x 10/100/1000Mbps (Intel 82540EM) |
| Max Memory | 8GB Registered ECC |
| Rear Ports | 2x PS/2, 1x COM, 1x LPT, 1x Video, 3x USB 1.1 |
| Form Factor | SSI EEB 3.0 |
| Memory Slots | 4 x 184Pin DDR DIMM |
| South Bridge | Intel ICH3-S |
| Supported CPU | Dual Intel Xeon |
| CPU Socket Type | Dual 603/604 (PGA604) |
| Expansion Slots | 2 x PCI Slots |
| Memory Standard | DDR266 (PC 2100) or DDR200 (with 400 FSB CPUs) |
| Front Side Bus (FSB) | 400/533 MHz |
| Onboard Video Chipset | ATI RAGE XL with 8MB memory |
| Warranty | Varies by seller (e.g., 90-day or 30 Days Return Warranty mentioned in some listings). |
| Weight | Not specified |
| Dimensions | 12" x 13" (SSI EEB 3.0 form factor) |
The Intel SE7501CW2 is a dual-processor server motherboard based on the Intel E7501 chipset, designed for Intel Xeon processors. It features support for up to 8GB of Registered ECC memory and includes dual networking capabilities with one Gigabit Ethernet port. The board adheres to the SSI EEB 3.0 form factor, making it suitable for compatible tower chassis.
Yes, this Intel Server Board SE7501CW2 (SE7501CW2) is 100% genuine Intel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Intel Server Board SE7501CW2 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SE7501CW2.
