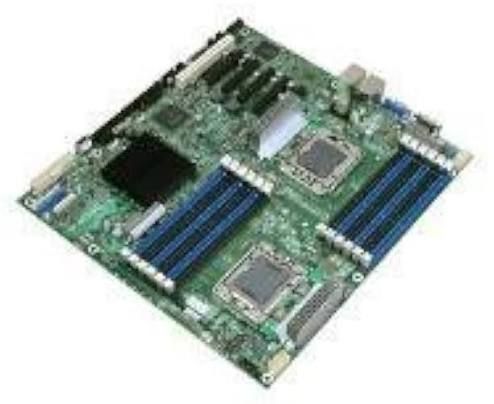

Brand: Intel · SKU: S5520HC · MPN: S5520HC · Category: Servers
A pedestal-optimized server board designed with world-class performance, scalable management, and maximum expandability for small and medium business applications. It supports up to two Dual-Core/Quad-Core Intel Xeon 5500 series processors via the Intel QuickPath Interconnect. It features 12 DIMM slots supporting up to 6-channel registered or unbuffered DDR3 800/1066/1333MHz memory, offering up to 192.38 GB max capacity. Expansion includes PCI Express 2.0 slots and a PCI slot. Storage includes 6 SATA 3.0Gb/s ports with Intel Embedded Server RAID Technology (levels 0, 1, upgradeable to 5). It has integrated dual 1GbE LAN ports and an onboard Server Engine LLC Pilot II video chipset. It supports the Intel Remote Management Module (RMM3).
| Chipset | Intel 5520 (North Bridge), Intel ICH10R (South Bridge) |
|---|---|
| LAN Ports | 2 x 1GbE |
| USB Ports | 8 (USB 2.0) |
| PCIe Slots | 1 x PCIe 2.0 x8 (x16 mechanical), 3 x PCIe 2.0 x8 (x8 mechanical), 1 x PCIe 1.0 x4 (x8 mechanical shared), 1 x PCI Slot |
| SATA Ports | 6 x SATA 3.0Gb/s |
| Memory Type | DDR3 ECC UDIMM, RDIMM (800/1066/1333MHz) |
| Memory Slots | 12 x 240pin |
| Serial Ports | 2 |
| Supported CPU | Dual Intel Xeon 5500 series |
| CPU Socket Type | Dual LGA 1366 (Socket B) |
| Max Memory Size | 192.38 GB |
| RAID Configuration | Intel Embedded RAID (0,1); upgradeable to RAID5 |
| Integrated Graphics | Yes (Server Engine LLC Pilot II) |
| Max Memory Bandwidth | 64 GB/s |
| Max CPU Configuration | 2 |
| Warranty | 3 years Limited Warranty (parts) mentioned by a reseller. |
| Weight | Not Found |
| Dimensions | 12.0" x 13.0" (SSI EEB Form Factor) |
The Intel S5520HC is a pedestal-optimized server board built for scalability, performance, and expandability, targeting small to medium business applications like databases, email, storage, and virtualization. It supports dual Intel Xeon 5500 series processors and high-capacity DDR3 ECC memory across 12 DIMM slots.
Yes, this Intel Server Board S5520HC (S5520HC) is 100% genuine Intel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Intel Server Board S5520HC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5520HC.
