Brand: Intel · SKU: DBS2600CP4 · MPN: DBS2600CP4 · Category: Servers

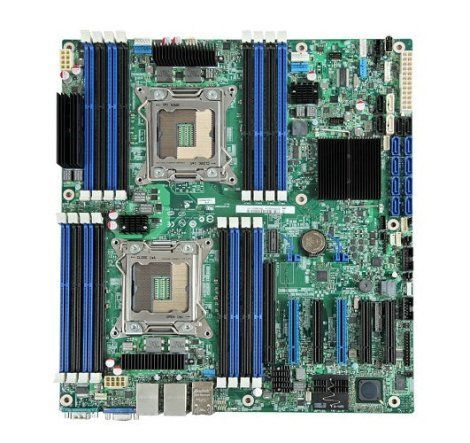

A mainstream dual-socket server board supporting two Intel Xeon processor E5-2600 family processors, featuring 16 DIMM slots, four 1Gb Ethernet ports, and six x8 electrical PCIe Gen3 I/O slots. It supports up to 512 GB of memory and includes up to 8 SCU ports plus 2 SATA 6Gb ports and 4 SATA 3Gb ports (with storage activation key). The board is designed for the Small and Medium Business and embedded markets, available as board-only or integrated into a 4U pedestal system. The chipset is the Intel C602 Chipset. It supports Intel Virtualization Technology for Directed I/O (VT-d) and Intel Remote Management Module. The board form factor is SSI EEB (12" x 13").
| Chipset | Intel C602 Chipset |
|---|---|
| QPI Links | 2 |
| USB Ports | 5 (Revision 2.0) |
| PCIe Slots | 1 x PCIe 3.0 x16, 5 x PCIe 3.0 x8 (electrical) |
| SATA Ports | Up to 2 SATA 6Gb/s + 4 SATA 3Gb/s (requires storage activation key) |
| Memory Slots | 16 DIMMs |
| Memory Types | DDR3 ECC UDIMM 1333/1600, RDIMM 1066/1333/1600/1866, LRDIMM 1333/1600/1866 |
| Serial Ports | 2 |
| Integrated LAN | 4x 1GbE |
| Max Memory Size | 512 GB |
| Processor Socket | Socket R (LGA 2011) |
| RAID Configuration | Up to SW Raid 5 (LSI + RSTE) |
| Integrated Graphics | Yes (VGA Output) |
| Integrated SAS Ports | 8 |
| Supported Processors | Dual Intel Xeon processor E5-2600 family, up to 135W TDP |
| Max CPU Configuration | 2 |
| Warranty | Limited 3-year Warranty (or as per supplier). |
| Dimensions | SSI EEB (12" x 13") |
The Intel Server Board S2600CP4 is a mainstream, dual-socket server board built on the Intel C602 chipset, designed to support the Intel Xeon processor E5-2600 family. It is positioned for Small and Medium Business and embedded markets, offering 16 DIMM slots for up to 512GB of memory, robust I/O with six PCIe Gen3 slots, and integrated quad 1GbE LAN. It features IPMI 2.0 management and support for Intel's advanced technologies for power and thermal management.
