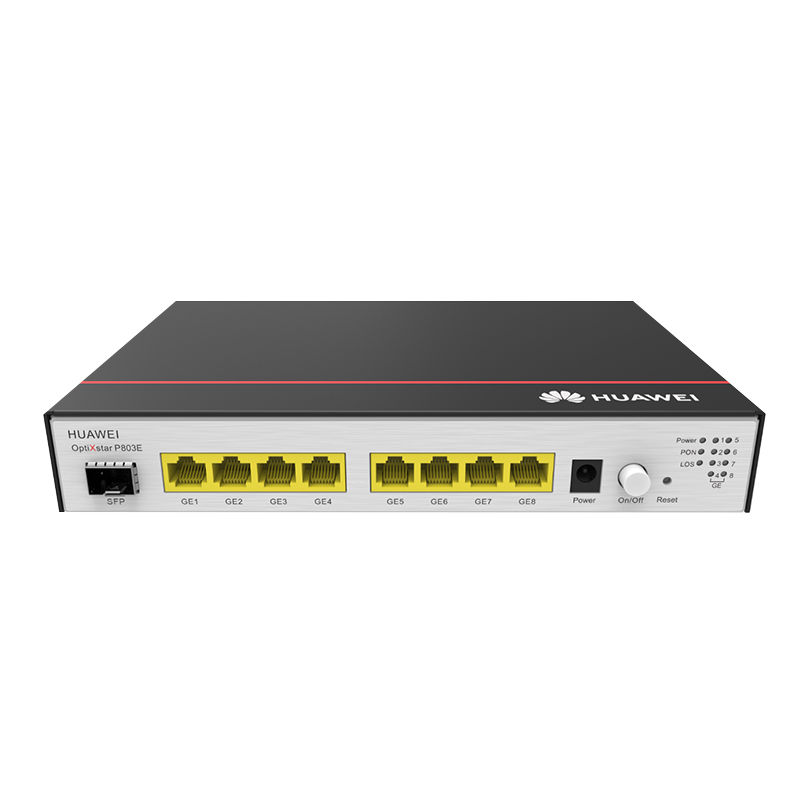

OptiXstar P803E, Huawei OptiXstar Series ONU, 8GE UNI/XGS-GPON/220x150x35mm

SKU: Huawei-OptiXstar-P803E · MPN: Huawei-OptiXstar-P803E · Category: Components

OptiXstar P803E, Huawei OptiXstar Series ONU, 8GE UNI/XGS-GPON/220x150x35mm
Request for Quote
In Stock • 10 units

- NNI: XGS-GPON - UNI: 8GE - 220mm x 150mm x 35mm

View Components Products

Specifications

GE· Port type: RJ-45 · Auto ports speed (10/100/1000 Mbit/s) · Auto-MDI/MDIX · Configuration of the number of MAC addresses learned · VLAN transparent transmission/VLAN filtering
NNIXGS-PON
QoS· Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR
SPF· Support XGS-PON optical module, port type: SC/UPC · Class N1/N2; · Receiver sensitivity: -28dBm; · Overload optical power: -9dBm; · Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s · Type B single-homing · Type B dual-homing (supported in Layer 2 forwarding)
UNI8*GE
Security· 802.1x · IPv6/IPv4 firewalls · Filtering based on MAC/IP/URL · DoS/ARP anti-attacks · Static MAC address binding · Device access control · Web session number restriction
Multicast· IGMP v2/v3 snooping · Dynamic controllable multicast · IGMP proxy · MLDv1/MLDv2 snooping
Smart O&M· XML/Web UI · Rogue ONT detection and self-regulation · Ring network detection/PPPoE/DHCP simulation testing
Layer 3 Features· Default/Static/Policy/Service routes · VLAN binding · ALG/UPnP/ARP · DDNS/DMZ/DNS/NAPT · PPPoE/Static IP/DHCP · Port mapping/Port trigger · IPv6
Installation modeSupport indoor desktop installation, wall mounting, or network box installation.
Layer 2 Management· DHCP Option82 · PITP · BPDU transparent transmission · LLDP/LLDP-MED
Operating humidity5%RH to 95%RH (non-condensing)
Power adapter input100V to 240V AC, 50/60Hz
System power supply12V DC,1A
Operating temperature-40°C to +55°C
Dimensions (W x D x H)220mm x 150mm x 35mm (Without floor mat)
Static power consumption3 W
Maximum power consumption6.96 W
Automatic Service Provisioning· Authentication exemption · XML/OMCI/TR069
Surge protection specificationsGE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this OptiXstar P803E, Huawei OptiXstar Series ONU, 8GE UNI/XGS-GPON/220x150x35mm (Huawei-OptiXstar-P803E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This OptiXstar P803E, Huawei OptiXstar Series ONU, 8GE UNI/XGS-GPON/220x150x35mm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the OptiXstar P803E, Huawei OptiXstar Series ONU, 8GE UNI/XGS-GPON/220x150x35mm compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the Huawei-OptiXstar-P803E.
