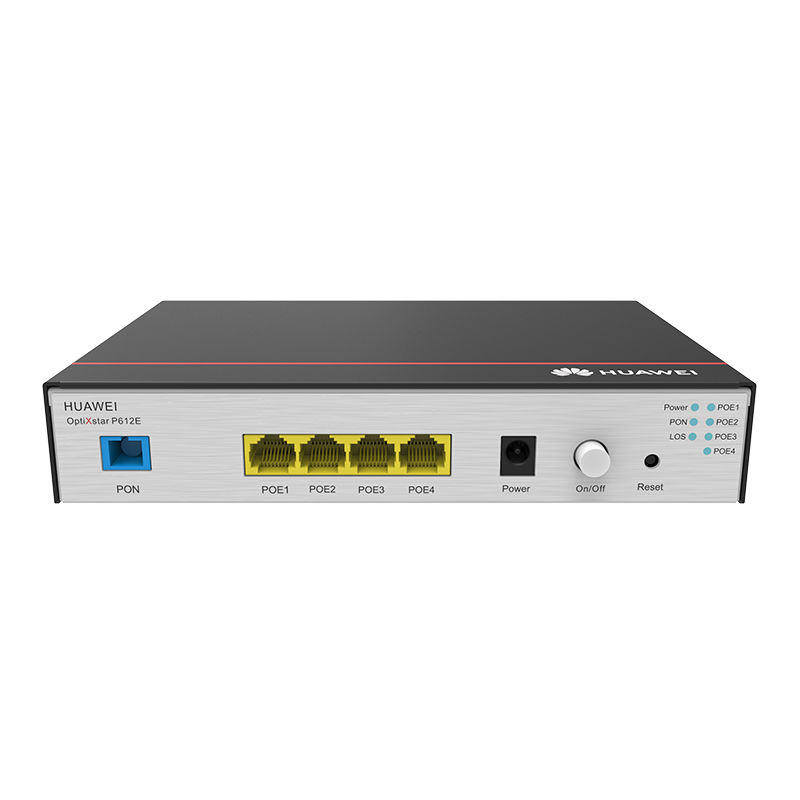

OptiXstar P612E, Huawei OptiXstar Series ONU, 4GE(POE/POE+)/GPON/190x130x35mm
SKU: Huawei-OptiXstar-P612E · MPN: Huawei-OptiXstar-P612E · Category: Components
- NNI: GPON - UNI: 4GE(POE/POE+) - 190 mm x 130mm x 35 mm
Specifications
| GE | · PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at · Port type: RJ-45 · Auto ports speed (10/100/1000 Mbit/s) · Auto-MDI/MDIX · Configuration of the number of MAC addresses learned · VLAN transparent transmission/VLAN filtering |
|---|---|
| NNI | GPON |
| PON | · Port type: SC/UPC · Complying with ITU-T G.984.2, Class B+ · Receiver sensitivity: -27dBm; · Overload optical power: -8dBm; · Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s · Type B single-homing · Type B dual-homing (supported in Layer 2 forwarding) |
| QoS | · Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR |
| UNI | 4*GE(PoE/PoE+) |
| Security | · 802.1x · IPv6/IPv4 firewalls · Filtering based on MAC/IP/URL · DoS/ARP anti-attacks · Static MAC address binding · Device access control · Web session number restriction |
| Multicast | · IGMP v2/v3 snooping · Dynamic controllable multicast · IGMP proxy · MLDv1/MLDv2 snooping |
| Smart O&M | · XML/Web UI · Rogue ONT detection and self-regulation · Ring network detection/PPPoE/DHCP simulation testing |
| Layer 3 Features | · Default/Static/Policy/Service routes · VLAN binding · ALG/UPnP/ARP · DDNS/DMZ/DNS/NAPT · PPPoE/Static IP/DHCP · Port mapping/Port trigger · IPv6 |
| Installation mode | Support indoor desktop installation, wall mounting, or network box installation. |
| Layer 2 Management | · DHCP Option82 · PITP · BPDU transparent transmission · LLDP/LLDP-MED |
| Operating humidity | 5%RH to 95%RH (non-condensing) |
| Power adapter input | 100V to 240V AC, 50/60Hz |
| System power supply | 56V DC, 1.42A |
| Operating temperature | -5°C to +45°C |
| Dimensions (W x D x H) | 190mm x 130mm x 35mm (Without floor mat) |
| Maximum PoE output power | Gross power 60W (up to 30W for one GE port) |
| Static power consumption | 7 W |
| Maximum power consumption | 9 W (POE port without PD) 77 W (POE port with PD having the maximum power consumption) |
| Automatic Service Provisioning | · Authentication exemption · XML/OMCI/TR069 |
| Surge protection specifications | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6kV; differential mode 6 kV |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
