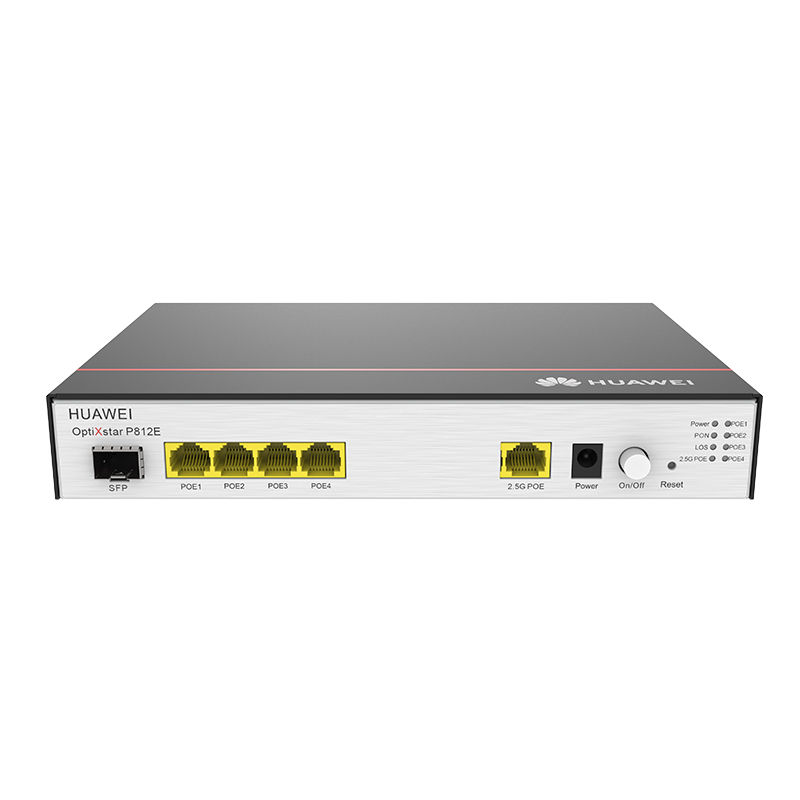

OptiXstar P812E, Huawei OptiXstar Series ONU, XGS-GPON/4GE+1x2.5GE(POE+)/220x150x35mm
SKU: Huawei-OptiXstar-P812E · MPN: Huawei-OptiXstar-P812E · Category: Components
- NNI: XGS-GPON - UNI: 4GE+1*2.5GE(POE/POE+) - 220mm x 150mm x 35mm
Specifications
| NNI | XGS-PON |
|---|---|
| QoS | · Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR |
| SFP | · Support XGS-PON optical module, port type: SC/UPC · Class N1/N2; · Receiver sensitivity: -28dBm; · Overload optical power: -9dBm; · Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s · Type B single-homing · Type B dual-homing (supported in Layer 2 forwarding) |
| UNI | 4*GE+1*2.5GE NOTE: Both the GE and 2.5GE ports support PoE/PoE+. |
| GE/2.5GE | · PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at · Port type: RJ-45 · GE ports: Auto ports speed (10/100/1000 Mbit/s) · 2.5GE ports: Auto ports speed (1000/2500 Mbit/s) · Auto-MDI/MDIX · Configuration of the number of MAC addresses learned · VLAN transparent transmission/VLAN filtering |
| Security | · 802.1x · IPv6/IPv4 firewalls · Filtering based on MAC/IP/URL · DoS/ARP anti-attacks · Static MAC address binding · Device access control · Web session number restriction |
| Multicast | · IGMP v2/v3 snooping · Dynamic controllable multicast · IGMP proxy · MLDv1/MLDv2 snooping |
| Smart O&M | · XML/Web UI · Rogue ONT detection and self-regulation · Ring network detection/PPPoE/DHCP simulation testing |
| Layer 3 Features | · Default/Static/Policy/Service routes · VLAN binding · ALG/UPnP/ARP · DDNS/DMZ/DNS/NAPT · PPPoE/Static IP/DHCP · Port mapping/Port trigger · IPv6 |
| Installation mode | Support indoor desktop installation, wall mounting, or network box installation. |
| Layer 2 Management | · DHCP Option82 · PITP · BPDU transparent transmission · LLDP/LLDP-MED |
| Operating humidity | 5%RH to 95%RH (non-condensing) |
| Power adapter input | 100V to 240V AC, 50/60Hz |
| System power supply | 56V DC,1.42A |
| Operating temperature | -5°C to +45°C |
| Dimensions (W x D x H) | 220mm x 150mm x 35mm (Without floor mat) |
| Maximum PoE output power | Gross power 60W (up to 30W for one GE port) |
| Static power consumption | 8.5 W |
| Maximum power consumption | 12 W (POE port without PD) 78 W (POE port with PD having the maximum power consumption) |
| Automatic Service Provisioning | · Authentication exemption · XML/OMCI/TR069 |
| Surge protection specifications | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this OptiXstar P812E, Huawei OptiXstar Series ONU, XGS-GPON/4GE+1x2.5GE(POE+)/220x150x35mm (Huawei-OptiXstar-P812E) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This OptiXstar P812E, Huawei OptiXstar Series ONU, XGS-GPON/4GE+1x2.5GE(POE+)/220x150x35mm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the OptiXstar P812E, Huawei OptiXstar Series ONU, XGS-GPON/4GE+1x2.5GE(POE+)/220x150x35mm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the Huawei-OptiXstar-P812E.
