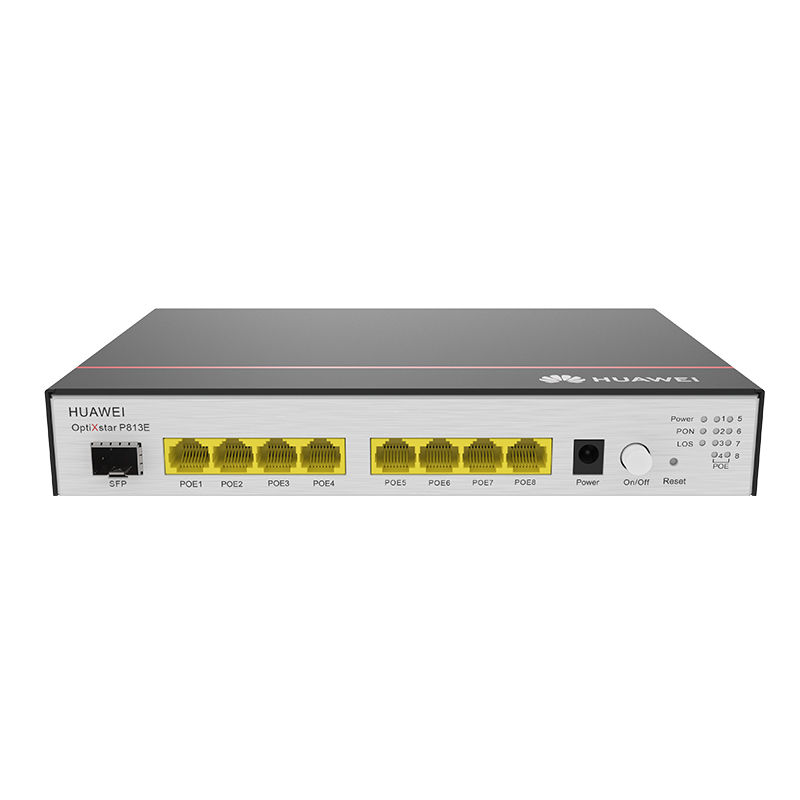

OptiXstar-P813E, Huawei OptiXstar Series ONU, 1xXGS-GPON/8xGE (PoE+)/220x150x35mm
SKU: Huawei-OptiXstar-P813E · MPN: Huawei-OptiXstar-P813E · Category: Components
- NNI: XGS-GPON - UNI: 8G(POE/POE+) - 220mm x 150mm x 35mm
Specifications
| GE | · PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at · Port type: RJ-45 · Auto ports speed (10/100/1000 Mbit/s) · Auto-MDI/MDIX · Configuration of the number of MAC addresses learned · VLAN transparent transmission/VLAN filtering |
|---|---|
| NNI | XGS-PON |
| QoS | · Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR |
| SPF | · Support XGS-PON optical module, port type: SC/UPC · Class N1/N2; · Receiver sensitivity: -28dBm; · Overload optical power: -9dBm; · Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s · Type B single-homing · Type B dual-homing (supported in Layer 2 forwarding) |
| UNI | 8*GE(PoE/PoE+) |
| Security | · 802.1x · IPv6/IPv4 firewalls · Filtering based on MAC/IP/URL · DoS/ARP anti-attacks · Static MAC address binding · Device access control · Web session number restriction |
| Multicast | · IGMP v2/v3 snooping · Dynamic controllable multicast · IGMP proxy · MLDv1/MLDv2 snooping |
| Smart O&M | · XML/Web UI · Rogue ONT detection and self-regulation · Ring network detection/PPPoE/DHCP simulation testing |
| Layer 3 Features | · Default/Static/Policy/Service routes · VLAN binding · ALG/UPnP/ARP · DDNS/DMZ/DNS/NAPT · PPPoE/Static IP/DHCP · Port mapping/Port trigger · IPv6 |
| Installation mode | Support indoor desktop installation, wall mounting, or network box installation. |
| Layer 2 Management | · DHCP Option82 · PITP · BPDU transparent transmission · LLDP/LLDP-MED |
| Operating humidity | 5%RH to 95%RH (non-condensing) |
| Power adapter input | 100V to 240V AC, 50/60Hz |
| System power supply | 56V DC, 2.6A |
| Operating temperature | -5°C to +45°C |
| Dimensions (W x D x H) | 220mm x 150mm x 35mm (Without floor mat) |
| Maximum PoE output power | Gross power 120W (up to 30W for one GE port) |
| Static power consumption | 8 W |
| Maximum power consumption | 12 W (POE port without PD) 143 W (POE port with PD having the maximum power consumption) |
| Automatic Service Provisioning | · Authentication exemption · XML/OMCI/TR069 |
| Surge protection specifications | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
