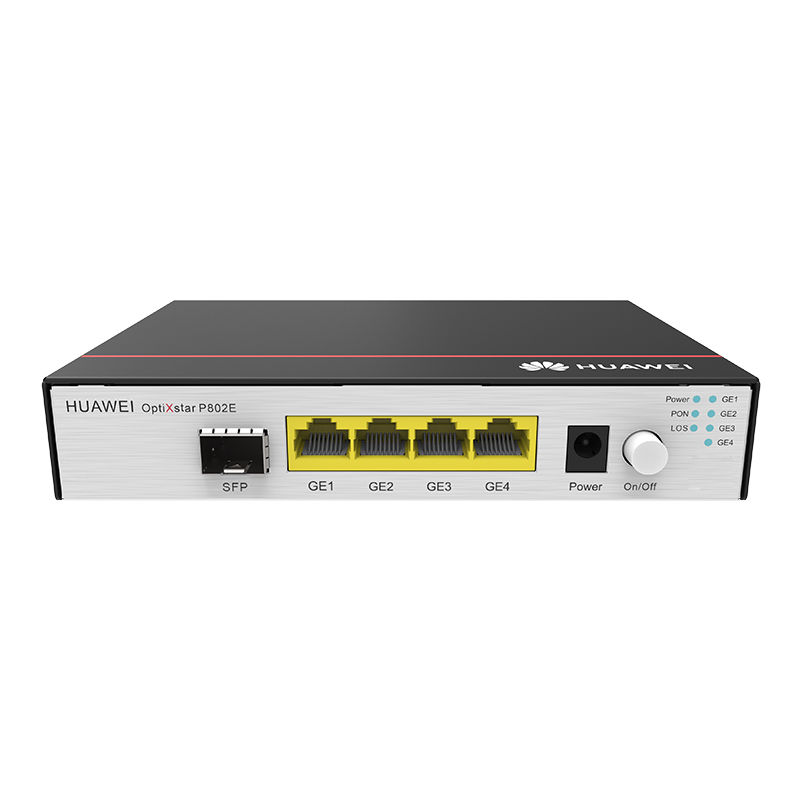

OptiXstar P802E, Huawei OptiXstar ONU, XGS-GPON/4GE/160x110x30mm

SKU: Huawei-OptiXstar-P802E · MPN: Huawei-OptiXstar-P802E · Category: Components

OptiXstar P802E, Huawei OptiXstar ONU, XGS-GPON/4GE/160x110x30mm
Request for Quote
In Stock • 10 units

- NNI: XGS-GPON - UNI: 4GE -160 mm x 110mm x 30 mm

View Components Products

Specifications

GE· Port type: RJ-45 · Auto ports speed (10/100/1000 Mbit/s) · Auto-MDI/MDIX · Configuration of the number of MAC addresses learned · VLAN transparent transmission/VLAN filtering
NNIXGS-PON
QoS· Ethernet port rate limitation · 802.1p priority · SP/WRR/SP+WRR
SFP· Support XGS-PON optical module · Class N1/N2; · Receiver sensitivity: -28dBm; · Overload optical power: -9dBm; · Transmission rate: upstream 9.953 Gbit/s, downstream 9.953 Gbit/s · Type B single-homing · Type B dual-homing (supported in Layer 2 forwarding)
UNI4*GE
Security· 802.1x · IPv6/IPv4 firewalls · Filtering based on MAC/IP/URL · DoS/ARP anti-attacks · Static MAC address binding · Device access control · Web session number restriction
Multicast· IGMP v2/v3 snooping · Dynamic controllable multicast · IGMP proxy · MLDv1/MLDv2 snooping
Smart O&M· XML/Web UI · Rogue ONT detection and self-regulation · Ring network detection/PPPoE/DHCP simulation testing
Layer 3 Features· Default/Static/Policy/Service routes · VLAN binding · ALG/UPnP/ARP · DDNS/DMZ/DNS/NAPT · PPPoE/Static IP/DHCP · Port mapping/Port trigger · IPv6
Installation modeSupport outdoor network box installation and indoor desktop installation, wall mounting, or network box installation.
Layer 2 Management· DHCP Option82 · PITP · BPDU transparent transmission · LLDP/LLDP-MED
Operating humidity5%RH to 95%RH (non-condensing)
Power adapter input100V to 240V AC, 50/60Hz
System power supply11V to 14V (typical 12 V), 1A
Operating temperature-40°C to +55°C
Dimensions (W x D x H)160mm x 110mm x 30mm (Without floor mat)
Static power consumption4.5 W
Maximum power consumption6 W
Automatic Service Provisioning· Authentication exemption · XML/OMCI/TR069
Surge protection specificationsGE: common mode 6 kV; differential mode 1.5 kV. AC power: common mode 6kV; differential mode 6 kV
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
