Brand: Intel · SKU: S1200KPR · MPN: S1200KPR · Category: Servers

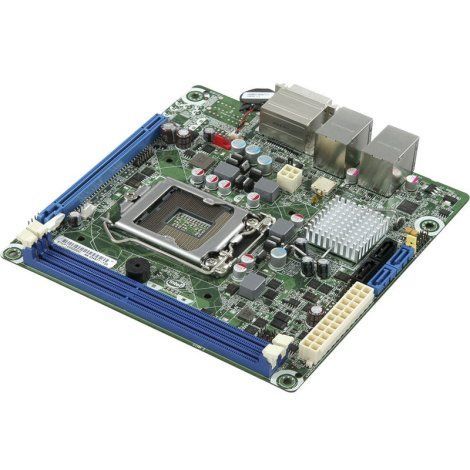

The Intel Server Board S1200KPR is a versatile Mini-ITX server motherboard built on the Intel C206 Chipset. It features an LGA 1155 socket supporting Intel Xeon E3-1200 & V2 Series, 2nd & 3rd Gen Core i3, Celeron G500, and Pentium G600 series processors with a maximum TDP of 95W. It supports up to 16GB of DDR3 ECC/nonECC UDIMM memory running at 1066/1333MHz across two DIMM slots with Dual Channel support and a maximum memory bandwidth of 21 GB/s. Expansion includes one PCI Express 2.0 x16 slot. For I/O, it offers four USB 2.0 ports, two Gigabit LAN ports (10/100/1000Mbps), integrated DVI-I graphics output, and four SATA ports (2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s). The board also features support for Intel® AES New Instructions, Intel® Node Manager, and integrated BMC with IPMI. It has an integrated graphics output via DVI-I. Included items are the I/O Shield and SATA cables. It is designed for Small Business/1st Server target markets.
| Chipset | Intel C206 |
|---|---|
| LAN Ports | 2 x 1GbE (Dual 10/100/1000Mbps) |
| USB Ports | 4 x USB 2.0 |
| Max Memory | 16GB |
| PCIe Slots | 1 x PCI Express 2.0 x16 |
| SATA Ports | 2 x SATA 3.0Gb/s + 2 x SATA 6.0Gb/s |
| CPU Support | Intel Xeon E3-1200 & V2, 2nd & 3rd Core i3 series, Celeron G500, Pentium G600 series |
| Form Factor | Mini ITX |
| Memory Type | DDR3 1066/1333 ECC/nonECC UDIMM |
| Socket Type | LGA 1155 |
| Video Ports | DVI-I |
| Memory Slots | 2 x 240pin |
| Warranty | Limited 3-year Warranty |
| Weight | N/A |
| Dimensions | 6.7" x 6.7" (Mini ITX) |
The Intel Server Board S1200KPR is a compact Mini-ITX server motherboard supporting Intel Xeon E3-1200 series processors and compatible Core i3/Pentium/Celeron CPUs in the LGA 1155 socket. It features two DDR3 DIMM slots supporting up to 16GB of ECC memory, integrated dual Gigabit LAN, integrated DVI-I graphics, and four SATA ports. It is designed for reliability in small business or entry-level server applications.
Yes, this Intel Server Board S1200KPR (S1200KPR) is 100% genuine Intel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Intel Server Board S1200KPR includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S1200KPR.
