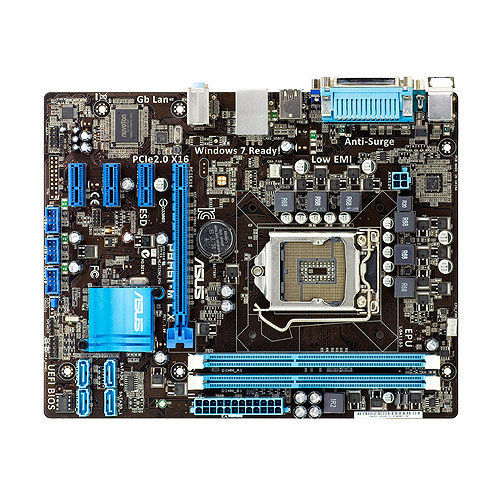

ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: 90-MIBGF0-G0EAY0VZ · MPN: 90-MIBGF0-G0EAY0VZ · Category: Components
ASUS P8H61-M LX, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, DDR3-SDRAM, 16 GB, Dual-channel. ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX (part number 90-MIBGF0-G0EAY0VZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 244 mm, bios type UEFI, audio chip Realtek ALC887, acpi version 2.0a, component for PC, microphone in Yes, lan controller Realtek RTL8111E. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 244 mm |
| BIOS type | UEFI |
| Audio chip | Realtek ALC887 |
| ACPI version | 2.0a |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Cables included | SATA |
| Memory channels | Dual-channel |
| BIOS memory size | 32 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® H61 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 193 mm |
Product Description
This motherboard supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world. The Intel® H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. Active Quiet & Cool ASUS Fan Xpert intelligently allows users to adjust the CPU fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment.
Key Features
ASUS P8H61-M LX. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX (90-MIBGF0-G0EAY0VZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBGF0-G0EAY0VZ.
