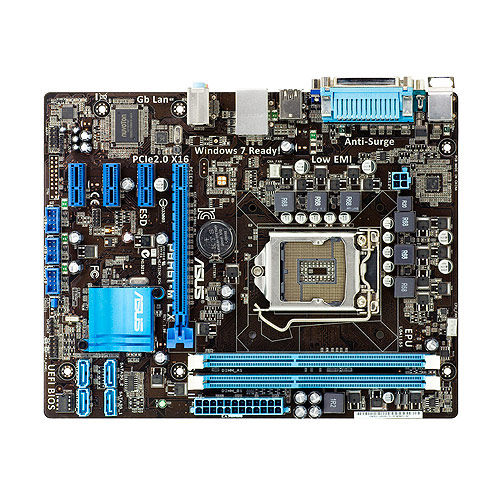

ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: 90-M1BGF1-G0UBY0DZ · MPN: 90-M1BGF1-G0UBY0DZ · Category: Components
ASUS P8H61-M LX, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, LGA 1155 (Socket H2), DDR3-SDRAM, 16 GB. ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX (part number 90-M1BGF1-G0UBY0DZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 244 mm, bios type UEFI, audio chip Realtek ALC887, acpi version 2.0a, ethernet lan Yes, flash memory 32 MB, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 244 mm |
| BIOS type | UEFI |
| Audio chip | Realtek ALC887 |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| Flash memory | 32 MB |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Cables included | SATA |
| DirectX version | 10.1 |
| Memory channels | Dual-channel |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 2048 x 1536 pixels |
| USB 2.0 connectors | 3 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 193 mm |
Product Description
LGA1155 socket for Intel® Second Generation Core™ i7/ Core™ i5/ Core™ i3 Processors This motherboard supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world. Intel® H61(B3) Express Chipset The Intel® H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Dual-Channel DDR3 1333 / 1066 support The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. Anti-Surge Protection Protect Your Device Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system. EPU Tap into the world’s first real time PC power saving engine through AI Suite II utility. Get total system power savings by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity. AI Suite II With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.
Key Features
ASUS P8H61-M LX. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II. Maximum resolution: 2048 x 1536 pixels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX (90-M1BGF1-G0UBY0DZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-M1BGF1-G0UBY0DZ.
