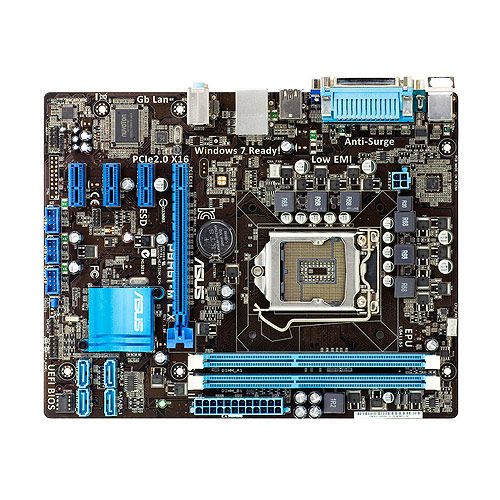

ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: 90-MIBGF0-G0EAY0DZ · MPN: 90-MIBGF0-G0EAY0DZ · Category: Components
ASUS P8H61-M LX, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, DDR3-SDRAM, 16 GB, DIMM. ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX (part number 90-MIBGF0-G0EAY0DZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 244 mm, bios type UEFI, audio chip Realtek ALC887, acpi version 2.0a, ethernet lan Yes, directx version 10.1, memory channels Dual-channel. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 244 mm |
| BIOS type | UEFI |
| Audio chip | Realtek ALC887 |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| DirectX version | 10.1 |
| Memory channels | Dual-channel |
| BIOS memory size | 32 Mbit |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Memory slots type | DIMM |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 2048 x 1536 pixels |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® H61 |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 2 |
| On-board graphics card | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 193 mm |
Product Description
This motherboard supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world. The Intel® H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. Tap into the world’s first real time PC power saving engine through AI Suite II utility. Get total system power savings by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity. With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities. Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information.
Key Features
ASUS P8H61-M LX. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA. Maximum resolution: 2048 x 1536 pixels. Ethernet interface type: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX (90-MIBGF0-G0EAY0DZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8H61-M LX Intel® H61 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBGF0-G0EAY0DZ.
