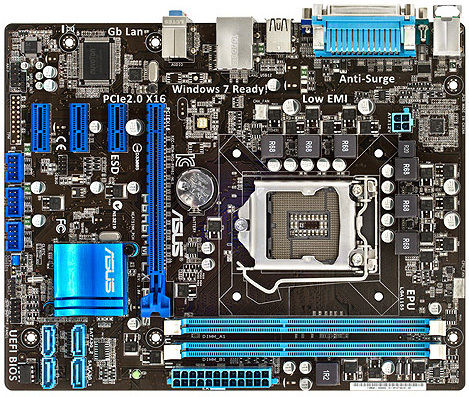

ASUS P8H61-M LX PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: P8H61-M LX PLUS · MPN: P8H61-M LX PLUS · Category: Components
ASUS P8H61-M LX PLUS, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, DDR3-SDRAM, 16 GB, Dual-channel. ASUS P8H61-M LX PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX (part number P8H61-M LX PLUS) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 244 mm, bios type AMI, acpi version 2.0, component for PC, microphone in Yes, lan controller Realtek RTL8111E, memory channels Dual-channel. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| ACPI version | 2.0 |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Memory channels | Dual-channel |
| BIOS memory size | 32 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® H61 |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 193 mm |
Product Description
LGA1155 socket for Intel Second Generation Core i7/ Core i5/ Core i3 Processors This motherboard supports the Intel second generation Core i7 / Core i5 / Core i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel second generation Core i7 / Core i5 / Core i3 processors are among the most powerful and energy efficient CPUs in the world. Intel H61(B3) Express Chipset The Intel H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel Corei7 / Corei5 / Core i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Anti-Surge Protection Protect Your Device Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system. Dual-Channel DDR3 1333 / 1066 support The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. EPU Tap into the world’s first real time PC power saving engine through AI Suite II utility. Get total system power savings by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity. AI Suite II With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities. UEFI BIOS (EZ Mode) Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information. Fan Xpert Active Quiet & Cool ASUS Fan Xpert intelligently allows users to adjust the CPU fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment. 8-channel high definition audio The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks. 100% All High-quality Conductive Polymer Capacitors This motherboard uses all high-quality conductive polymer capacitors for durability, improved lifespan, and enhanced thermal capacity. ErP ready The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
Key Features
ASUS P8H61-M LX PLUS. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8H61-M LX PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX (P8H61-M LX PLUS) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8H61-M LX PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8H61-M LX PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8H61-M LX PLUS.
