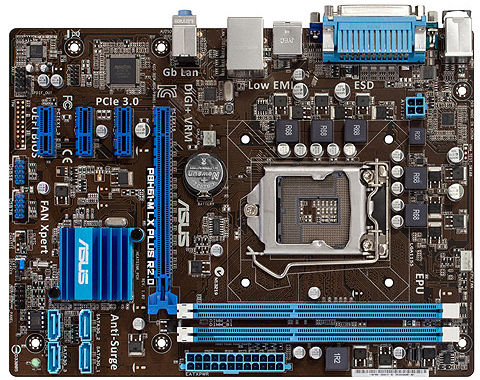

ASUS P8H61-M LX PLUS R2.0 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: P8H61-M LX PLUS R2.0 · MPN: P8H61-M LX PLUS R2.0 · Category: Components
ASUS P8H61-M LX PLUS R2.0, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 16 GB, DIMM. ASUS P8H61-M LX PLUS R2.0 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX (part number P8H61-M LX PLUS R2.0) is an enterprise components product available from Server Tech Central. Key specifications include depth 183 mm, width 244 mm, bios type AMI, acpi version 2.0a, ethernet lan Yes, component for PC, microphone in Yes, memory channels Dual-channel. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 183 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| Memory channels | Dual-channel |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| Wake-on-LAN ready | Yes |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 2048 x 1536 pixels |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® H61 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 183 mm |
Product Description
LGA1155 socket for Intel 3rd/2nd Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors This motherboard supports the Intel 3rd/2nd generation Core i7/i5/i3/Pentium/Celeron processors in the LGA1155 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics out with dedicated chipsets, 2-channel (2 DIMMs) DDR3 memory, and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd/2nd generation Core i7/i5/i3/Pentium/Celeron processors are among the most powerful and energy efficient CPUs in the world. Intel H61 Express Chipset The Intel H61 Express Chipset is a single-chipset design to support the new 1155 socket Intel 3rd/2nd Generation Core i7 / Core i5 / Core i3 / Pentium / Celeron processors. It provides improved performance by utilizing serial point-to-point links, which allows increased bandwidth and stability. PCIe 3.0 Ready PCI Express 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them. Dual-Channel DDR3 2200(O.C) / 2133(O.C) / 2000(O.C) / 1866(O.C) / 1600 / 1066 / 1333 support The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C )/2133(O.C )/2000(O.C )/1866(O.C )/1600/1066/1333 suppor MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. DIGI+ VRM Digital Power Design ASUS motherboards using the Intel H61 chipset employ precise digital voltage regulation for the CPU, called DIGI+ VRM (Voltage Regulation Modules) digital power design. The CPU voltage and VRM frequency are adjusted via either carefully developed automated modes, or by using user-defined profiles. The effect is that DIGI+ VRM technology ensures greater energy efficiency and the best possible PC stability. Boosted by world-renowned ASUS quality, it creates an ideal computing platform for a diverse range of applications, from gaming to multimedia or office work and heavy multitasking. Engineered and tested to assure unmitigated performance, ASUS H61 boards with DIGI+ VRM remain efficient and stability, for reliable application in every scenario. AI Suite II One stop Access to Innovative ASUS Features With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities. EPU Energy Efficiency All Around Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity! UEFI BIOS (EZ Mode) Flexible and Easy BIOS Interface ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond the traditional keyboard-only controls. It also natively supports fully-utilized hard drives larger than 2.2TB in 64-bit operating systems. ASUS Exclusive Interface EZ Mode displays frequently-accessed info. Users can choose system performance settings, and drag and drop boot priorities. Advanced Mode for performance enthusiasts includes detailed DRAM settings via a dedicated memory info page for complete insight. New Upgrade! Quick and Easy Info for Enhanced System Control - F12 BIOS snapshot hotkey for sharing UEFI information and troubleshooting; - New F3 Shortcut for most accessed information; - ASUS DRAM SPD (Serial Presence Detect) information for accessing memory information, detecting faulty DIMMs, and helping with difficult POST situations. Network iControl Real-time Network Bandwidth Control With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection pro
Key Features
ASUS P8H61-M LX PLUS R2.0. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II. Maximum resolution: 2048 x 1536 pixels. Ethernet interface type: Gigabit Ethernet, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8H61-M LX PLUS R2.0 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX (P8H61-M LX PLUS R2.0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8H61-M LX PLUS R2.0 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8H61-M LX PLUS R2.0 motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8H61-M LX PLUS R2.0.
