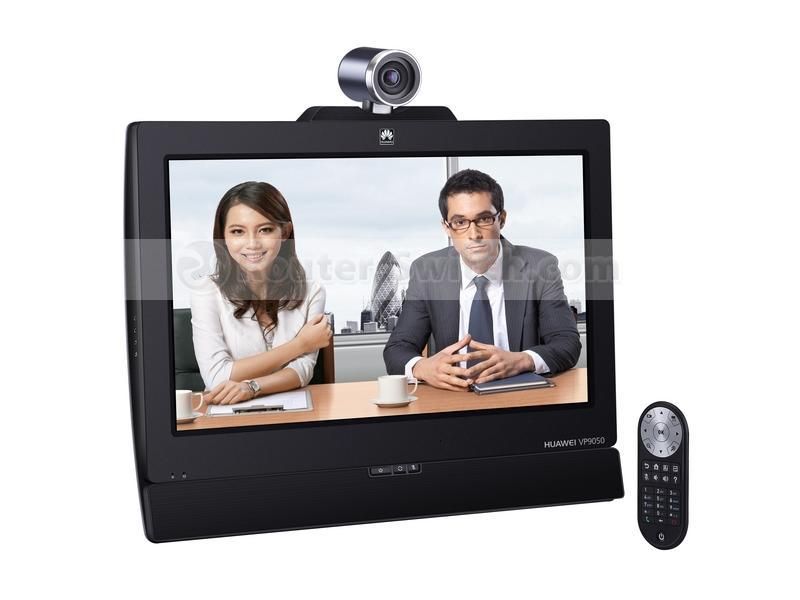

VC8MB6PEN, Huawei VC9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen

Brand: Huawei · SKU: VC8MB6PEN · MPN: VC8MB6PEN · Category: Components

VC8MB6PEN, Huawei VC9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen
$6,477.72
In Stock • 10 units

Huawei VC8MB6PEN VP9050,Videoconferencing Terminal(1080P,miniMCU,touch screen,cables-Europe)

View Components Products

Specifications

ModelVC8MB6PEN
CameraEmbedded high quality CMOS camera; video capture resolution: 1080p; Automatic Exposure (AE); Automatic White Balance (AWB); manual picture parameters control; rotatable; private protection switch
Weight14.5 kg
Display21.5in 16:9 LCD; resolution: 1080p; luminance: > 200 cd/m²; response time: < 5 ms; view angle: horizontal 70°, vertical 65°; contrast: 700:1; luminance and contrast control; rotatable; supports external source input
SecurityH.235 signaling and media stream encryption; AES media stream encryption; conference access password; conference control password; administrator password; H.323 ID and number binding; IP address and number binding
ElectricalWorking voltage: 100–240 V AC; working frequency: 50–60 Hz; power consumption: 100W
Embedded MCUUp to 4 HD 720p video endpoints + 3 voice terminals to join the conference; embedded MCU supports CP, voice activation, camera control, and chairman token; two level cascading; mixed H.323 and SIP
Sound System2 x embedded microphones, supports external microphones; 2 x embedded stereo loudspeakers
Audio InterfacesAudio input: 1 x 3.5mm line-in jack, 1 x 3.5mm mic jack; audio output: 1 x 3.5mm earphone jack, 1 x 3.5mm line-out jack
Network ProtocolsCommunication standards: ITU-T H.323, IETF SIP; network standards: TCP/IP, FTP, DHCP, SNMP, Telnet, HTTP, HTTPS, PPPoE, RTP, RTCP
People Video Resolution1080p (optional), 720p, 4CIF/4SIF; 1080p 30 fps (optional); 720p 50/60 fps (optional), 720p 30 fps; 512 kbps for 720p 30 fps; 768 kbps for 720p 50/60 fps; 1Mbps for 1080p 30 fps; VideoIntensifier; ViewProcessing
Content Video ResolutionSXGA (1280 x 1024), XGA (1024 x 768), SVGA (800 x 600), VGA (640 x 480)
Physical CharacteristicsCodec dimensions (L x W x H): 542mm x 114mm x 490mm; package dimensions (L x W x H): 685mm x 269mm x 685mm; weight: 8.214.5 kg
Video Interfaces and USBVideo input: 1 x DVI / YPbPr / VGA; video output: 1 x DVI / YPbPr / VGA; 1 x USB port
Environmental SpecificationsOperating temperature: 0–40°C; operating humidity: 10–80%; non-operating temperature: -40–85°C; non-operating humidity (non-condensing): 0–95%; peripheral noise: < 46 dBA SPL; lowest illuminance: 15 lux; recommended illuminance: > 300 lux
Audio Standards and ProtocolsAAC-LD Stereo, G.722, G.711, G.728; HWA-LD Stereo (Huawei Audio Broadband Low Delay Stereo); Acoustic Echo Cancellation (AEC); Acoustic Noise Suppression (ANS) 12 dB; Automatic Gain Control (AGC) ± 6 dB; VoiceClear; AudioEnhancer; audio-lip synchronization
Other ITU-Supported StandardsH.221, H.225, H.230, H.231, H.233, H.234, H.235, H.241, H.242, H.243, H.245, H.281, H.283, H.350, H.460, T.140
Video Standards and ProtocolsH.264, H.263, H.263+, H.261; ITU-T H.239; VME (Video Motion Enhancement)
Network Interfaces and Bandwidth1-port IP 10/100Base-T, 2 x RJ45 connectors; 1-port wireless (WCDMA, CDMA2000 EV-DO), USB connectors; IP bandwidth: 64 kbps to 4Mbps; IP total: 8Mbps (supports up to 4 HD video endpoints + 3 voice terminals to join the conference)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this VC8MB6PEN, Huawei VC9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen (VC8MB6PEN) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This VC8MB6PEN, Huawei VC9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the VC8MB6PEN, Huawei VC9050 Videoconferencing Terminal, 1080P/miniMCU/touch screen compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the VC8MB6PEN.
